Differential Technical Data

Rear Wheel Drive System (4WD):

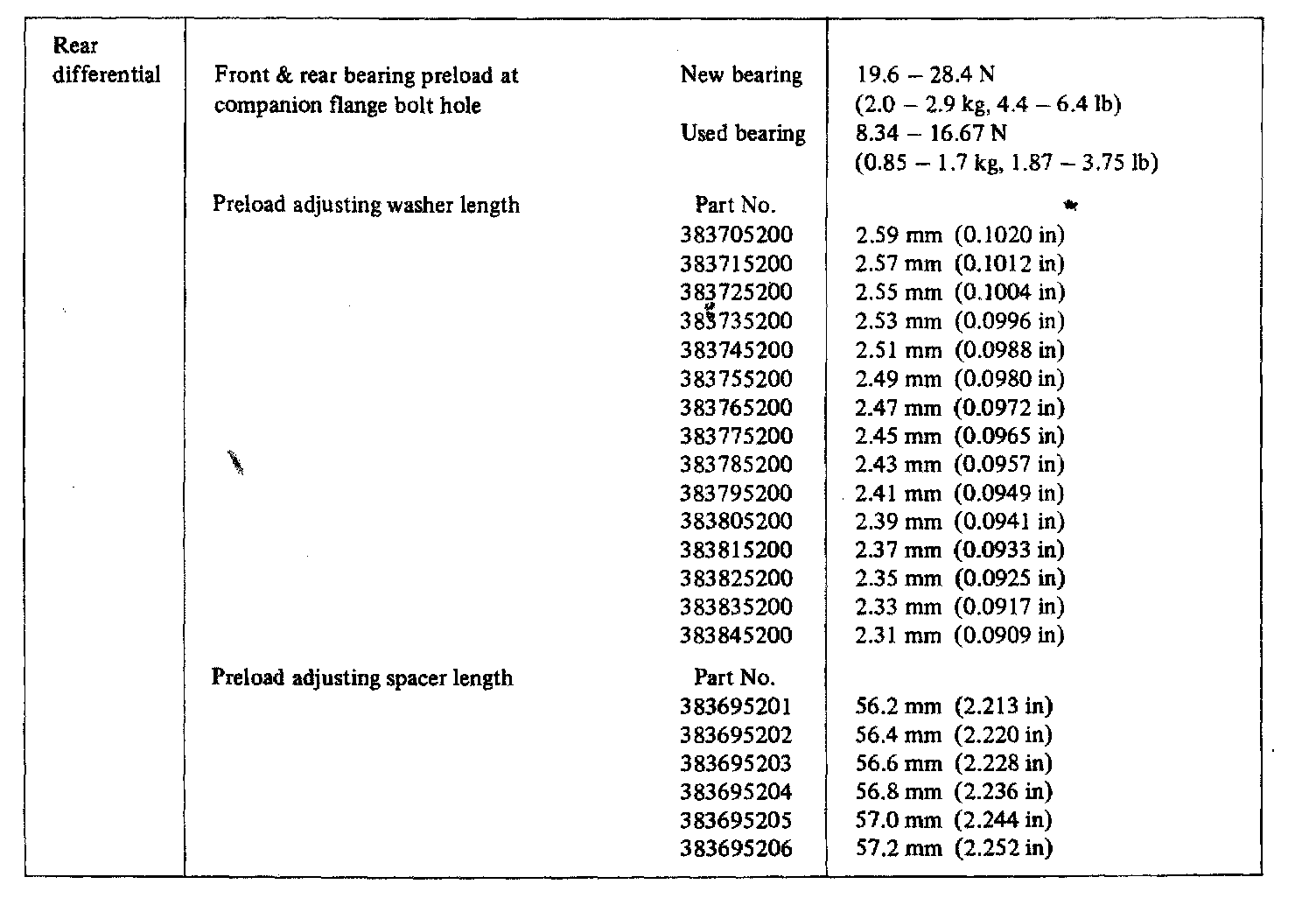

Rear Wheel Drive Differential:

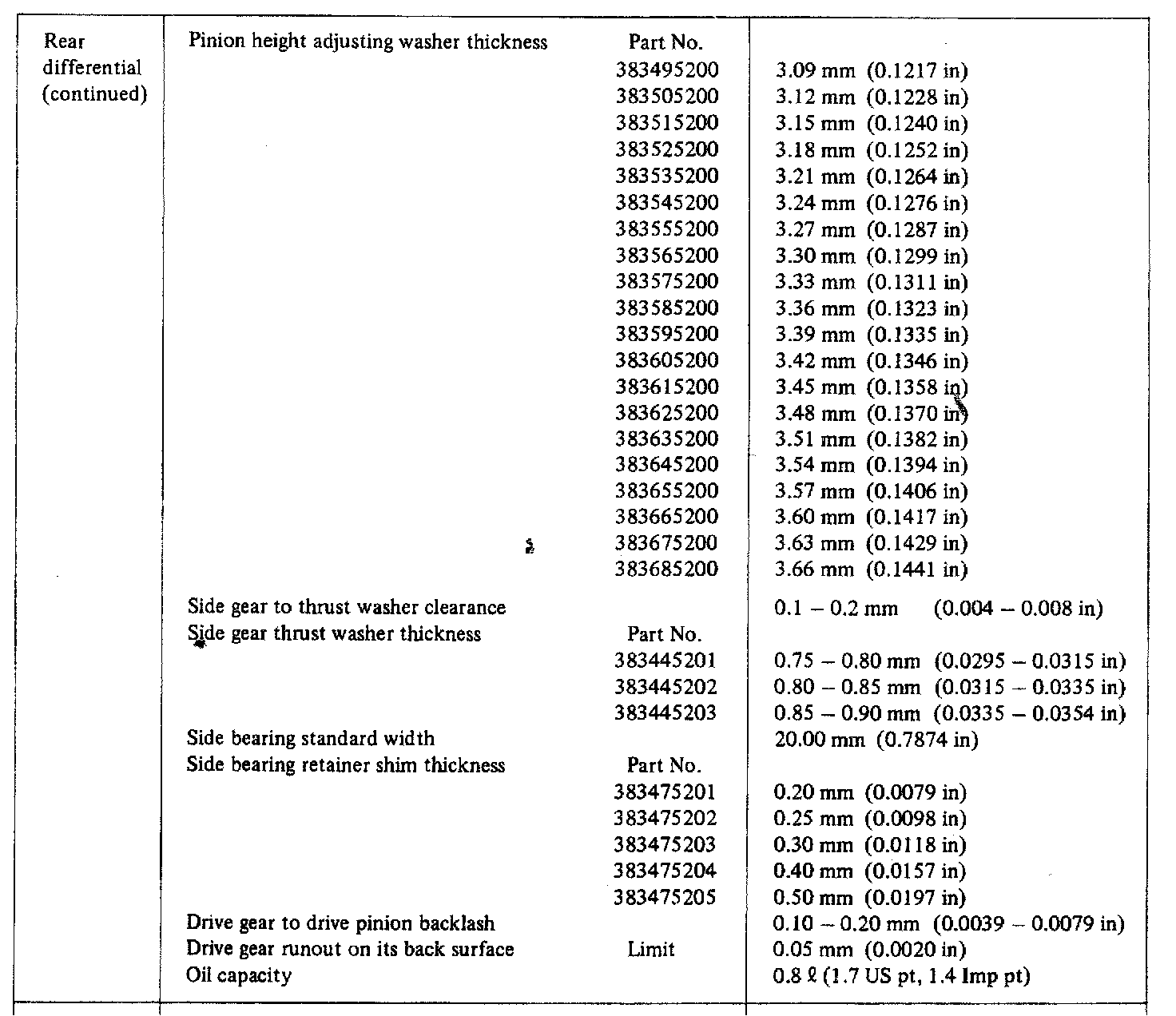

Rear Wheel Drive Differential:
