Integrated Circuit (Ic) Regulator: Notes

An integrated circuit regulator is used on all Datsun models. The voltage regulator is soldered to the brush assembly and mounted inside the alternator.

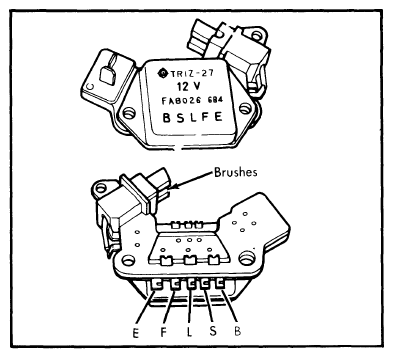

Fig 1: Front and Rear Views of IC Regulator (Datsun)

Courtesy of NOT AVAILABLE
