Cable: Service and Repair

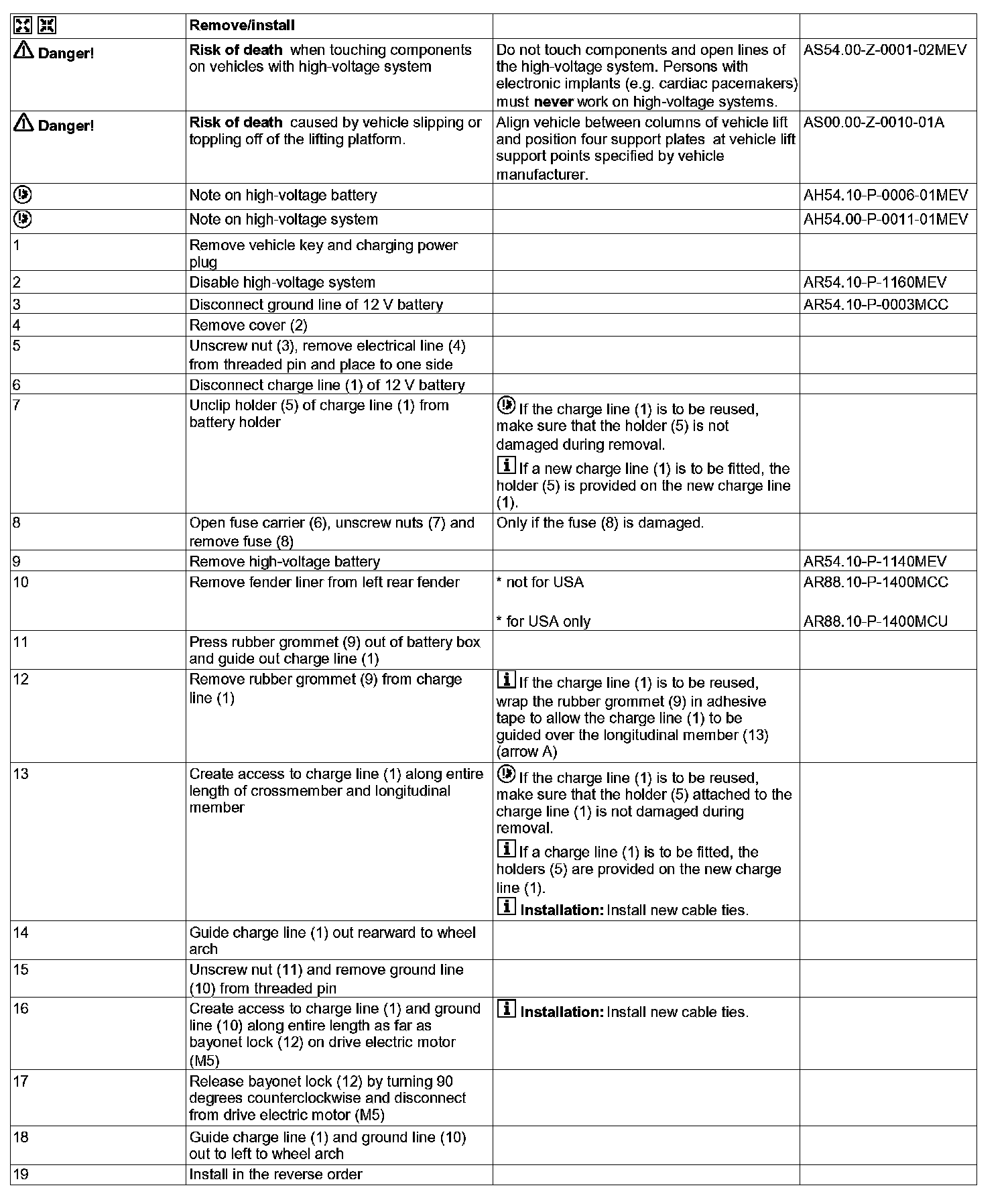

AR54.10-P-5107MEV Remove/install Electric Motor Charge Line To 12-volt Battery
- MODEL 451.391 /491 with ENGINE 780.009

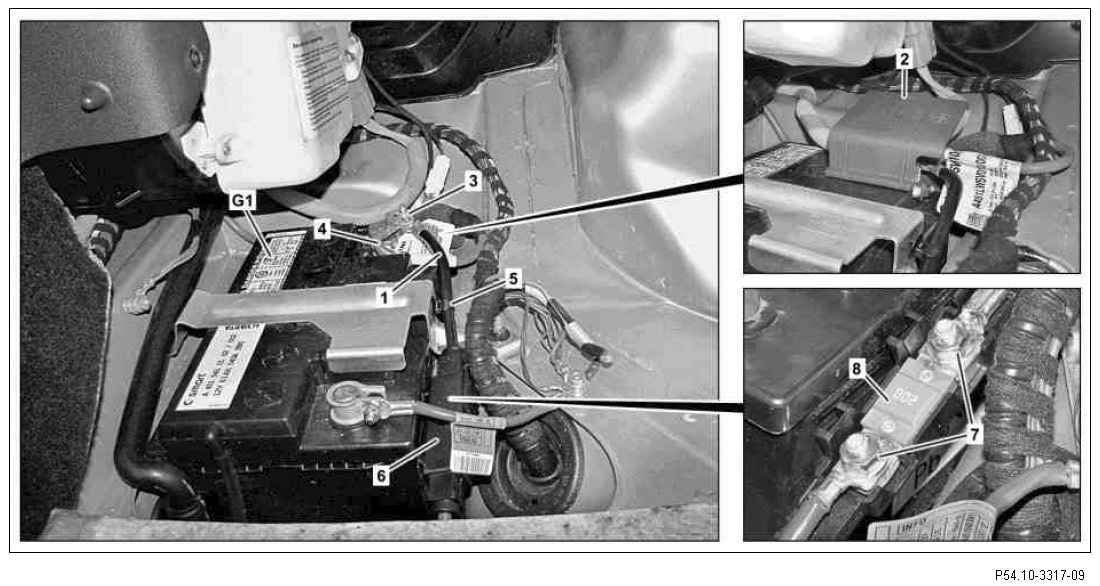

1 Charge line
2 Cover
3 Nut
4 Electrical line
5 Bracket
6 Fuse carrier
7 Nuts
8 Fuse

G1 Battery

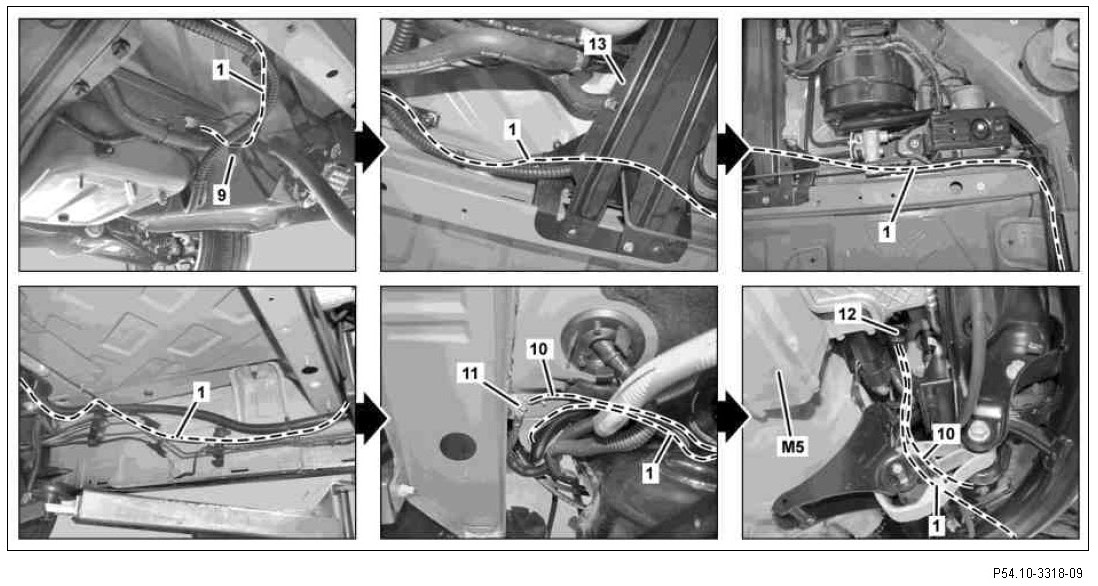

1 Charge line
9 Rubber grommet
10 Ground cable
11 Nut
12 Bayonet fitting
13 Longitudinal members

M5 Electric drive motor

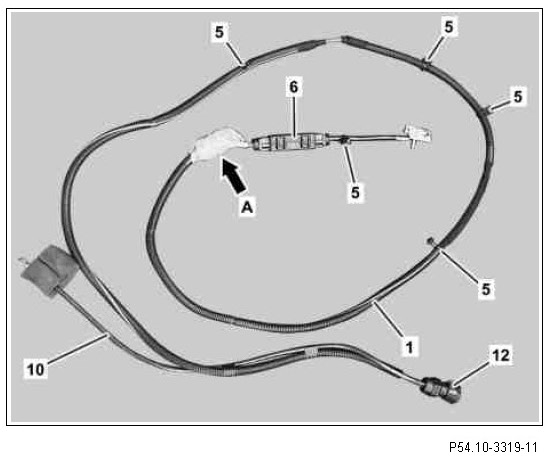

1 Charge line
5 Bracket
6 Fuse carrier
10 Ground cable
12 Bayonet fitting
