Catalytic Converter: Service and Repair

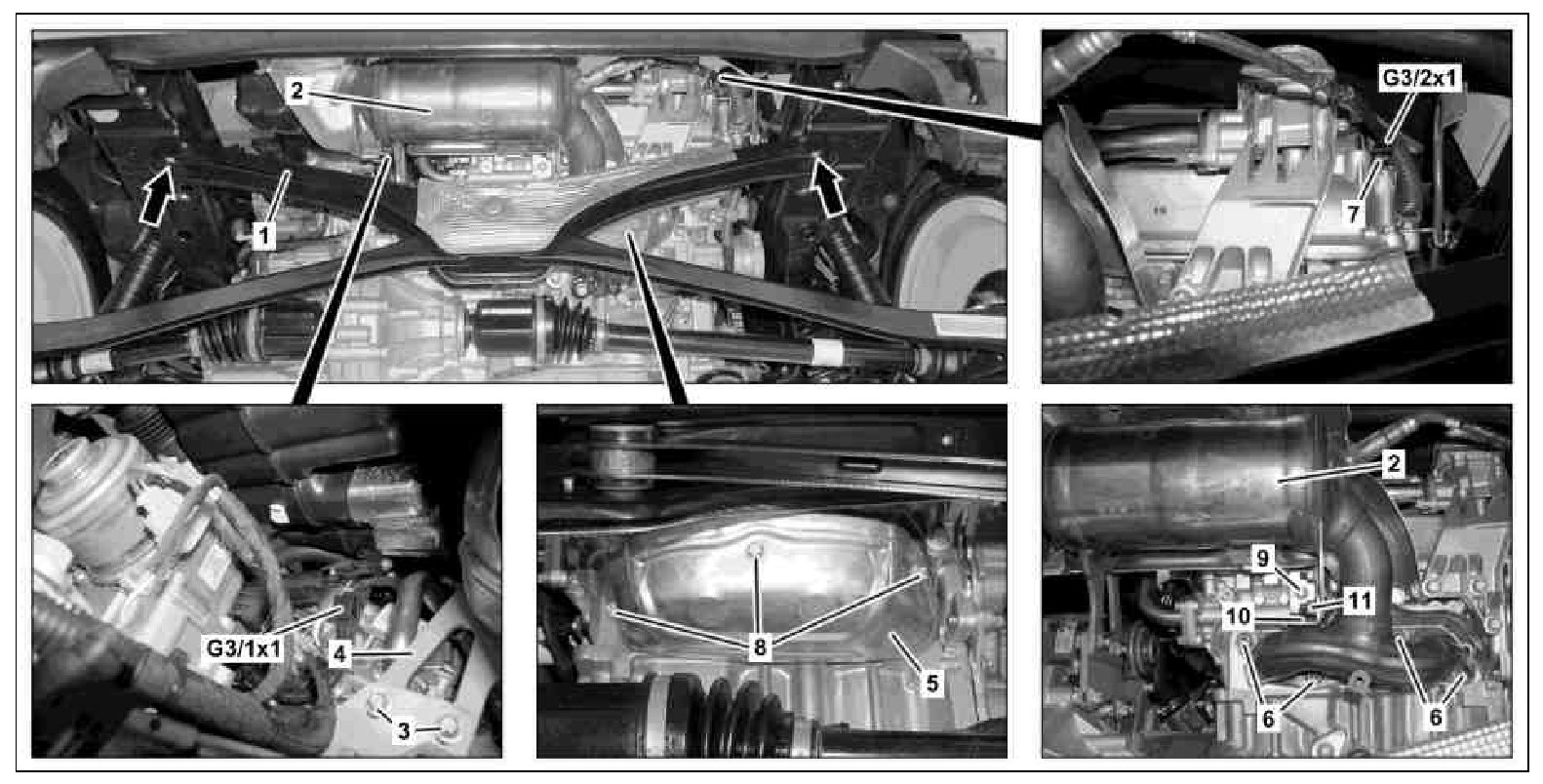

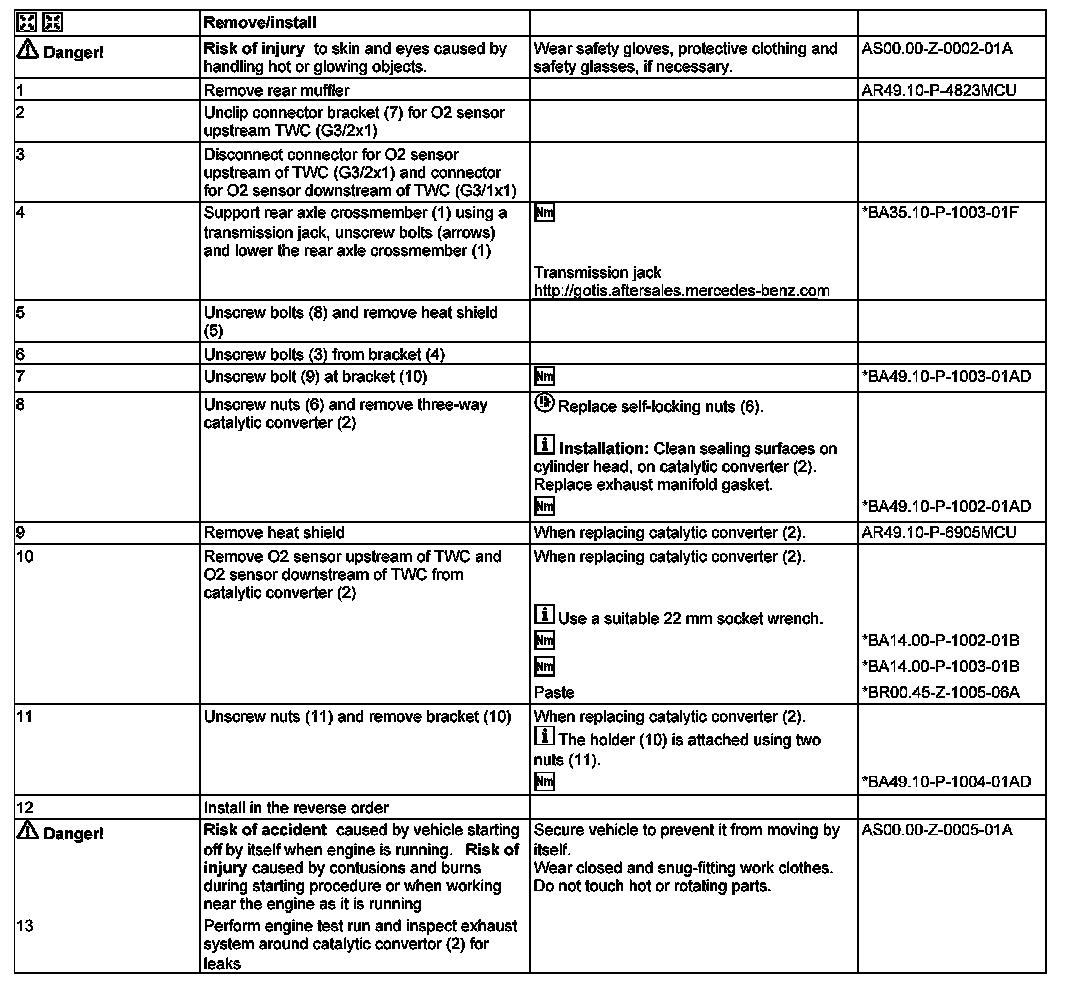

AR49.10-P-5500MCU Remove/Install Catalytic Converter







1 Rear axle crossmember
2 Catalytic converter
3 Bolts
4 Bracket
5 Heat shield
6 Nuts
7 Bracket
8 Bolts
9 Bolt
10 Bracket
11 Nut
G3/1x1 Connector for O2 sensor downstream of TWC
G3/2x1 Connector for O2 sensor upstream of TWC
