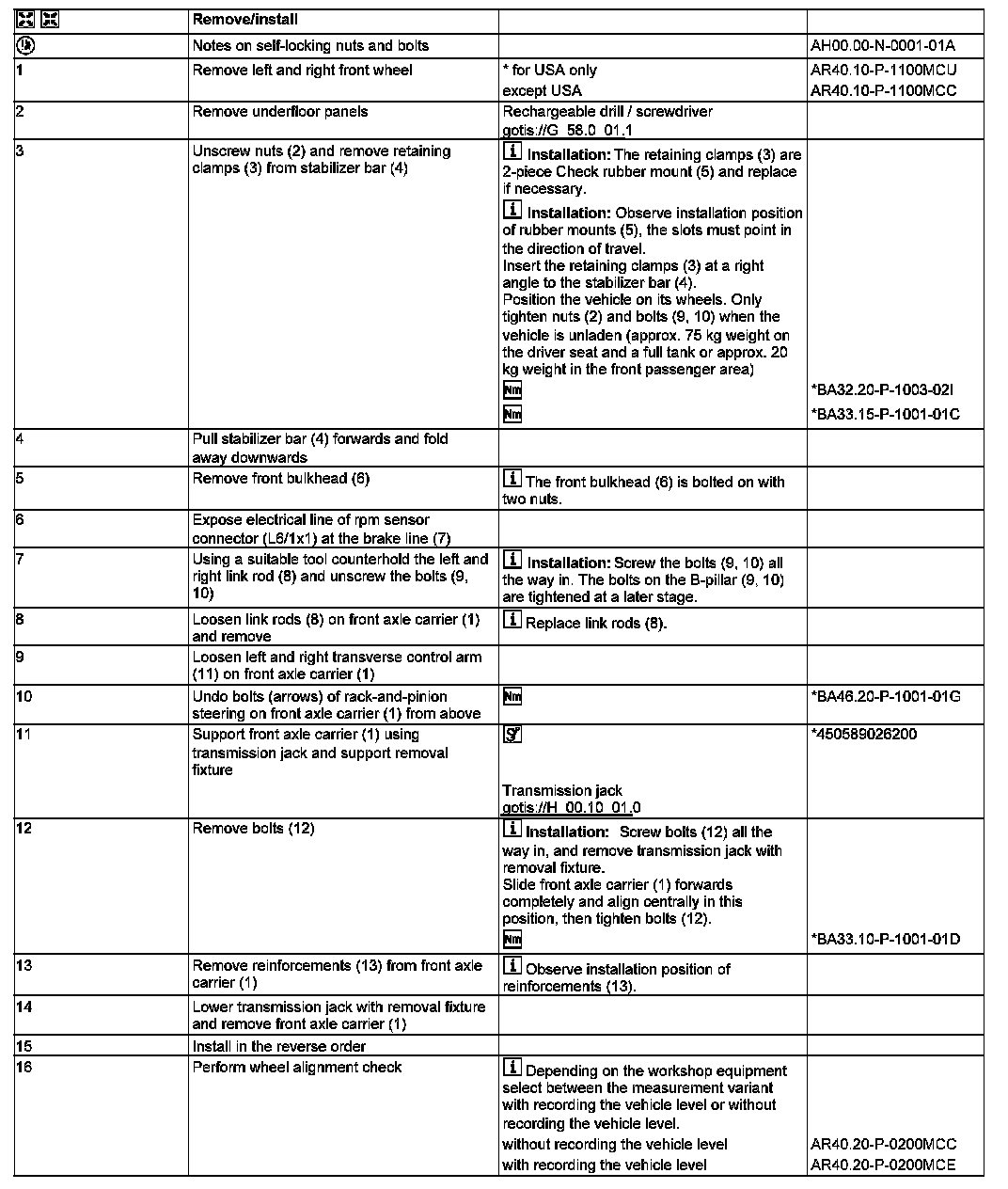

AR33.10-P-0001MCC Remove/Install Front Axle Carrier

AR33.10-P-0001MCC Remove/Install Front Axle Carrier

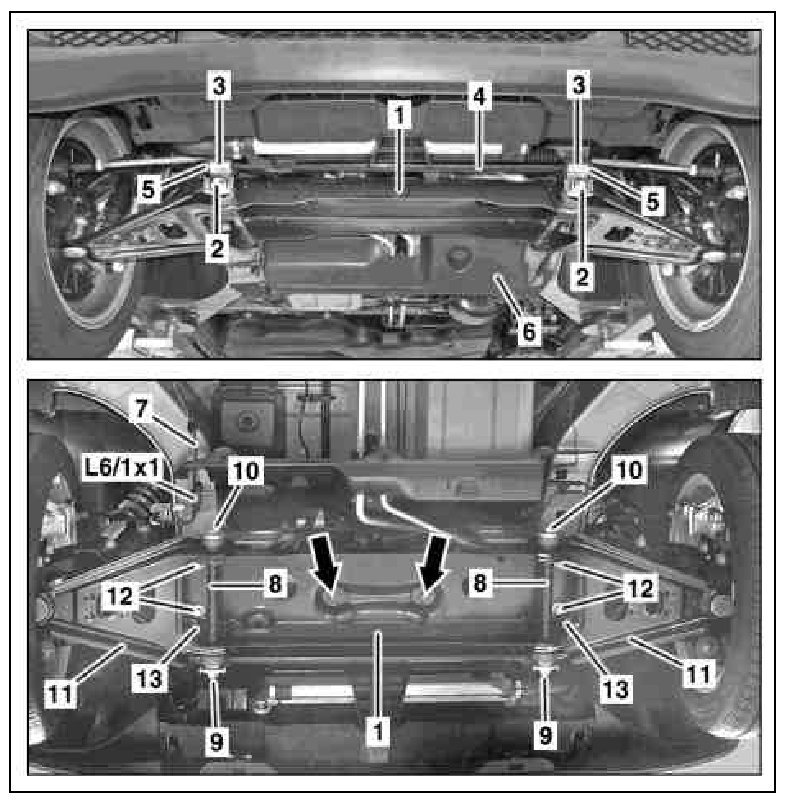

1 Front axle carrier
2 Nut
3 Retaining clamp
4 Stabilizer
5 Rubber bushing
6 Front bulkhead
7 Brake line
8 Link rod
9 Screw
10 Screw
11 Transverse control arms
12 Bolts
13 Reinforcements
L6/1x1 Rpm sensor connector





































450 589 02 62 00, Removal assembly
