Power window motor, component description - GF72.29-P-6030MCC
MODEL 451.3 /4 with CODE (V43) Power window

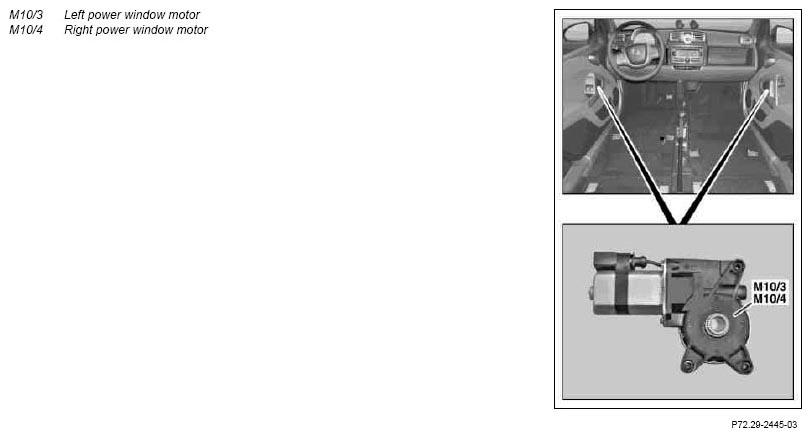

Location
The power window motors are screwed below the door paneling on the power window.
Task
The power window motors are actuated by the power window convenience feature control unit (N57/2) and allow to open and close the side windows.
Design
The power window motors are DC motors which turn to the right or left depending on the actuation.
