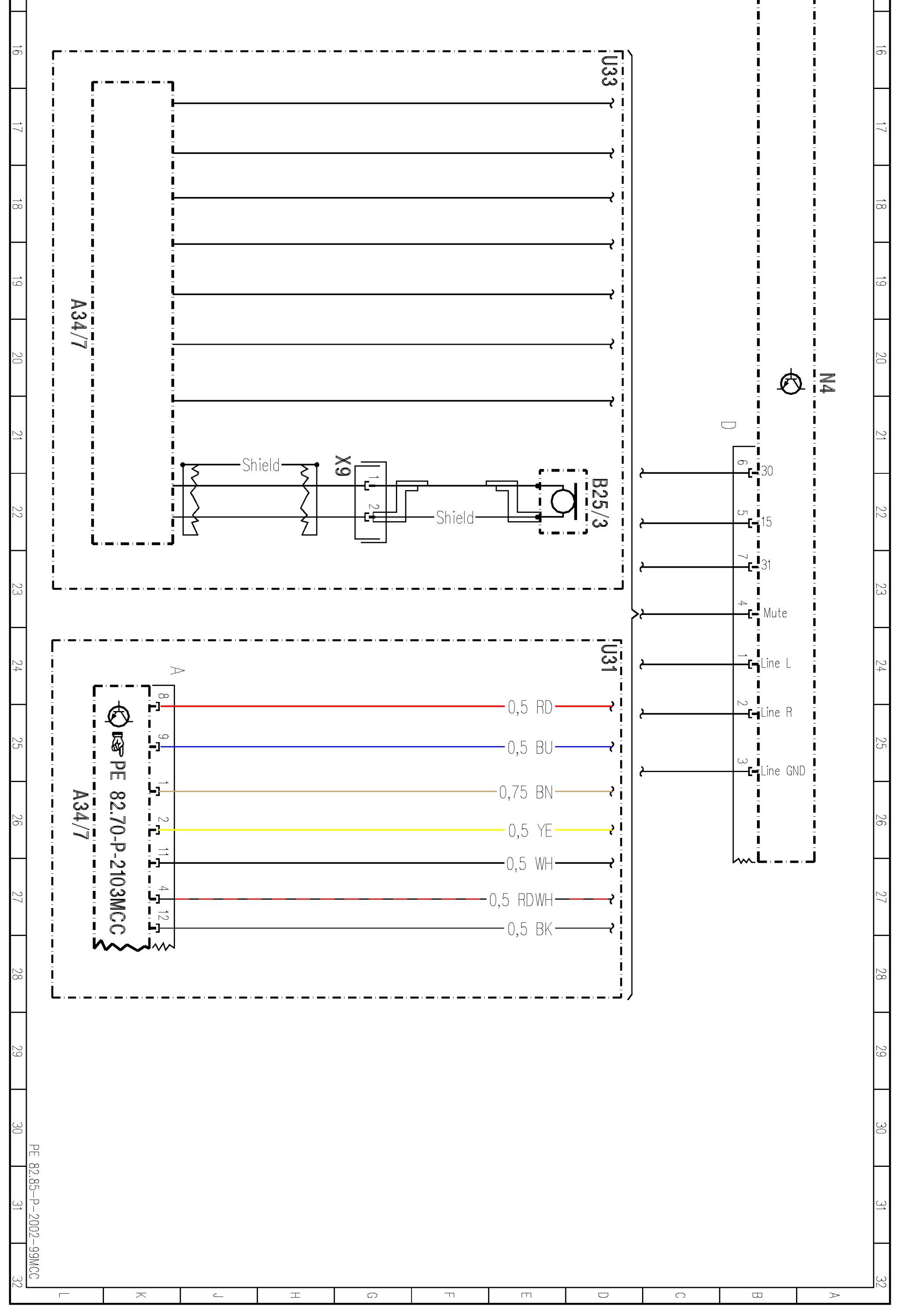

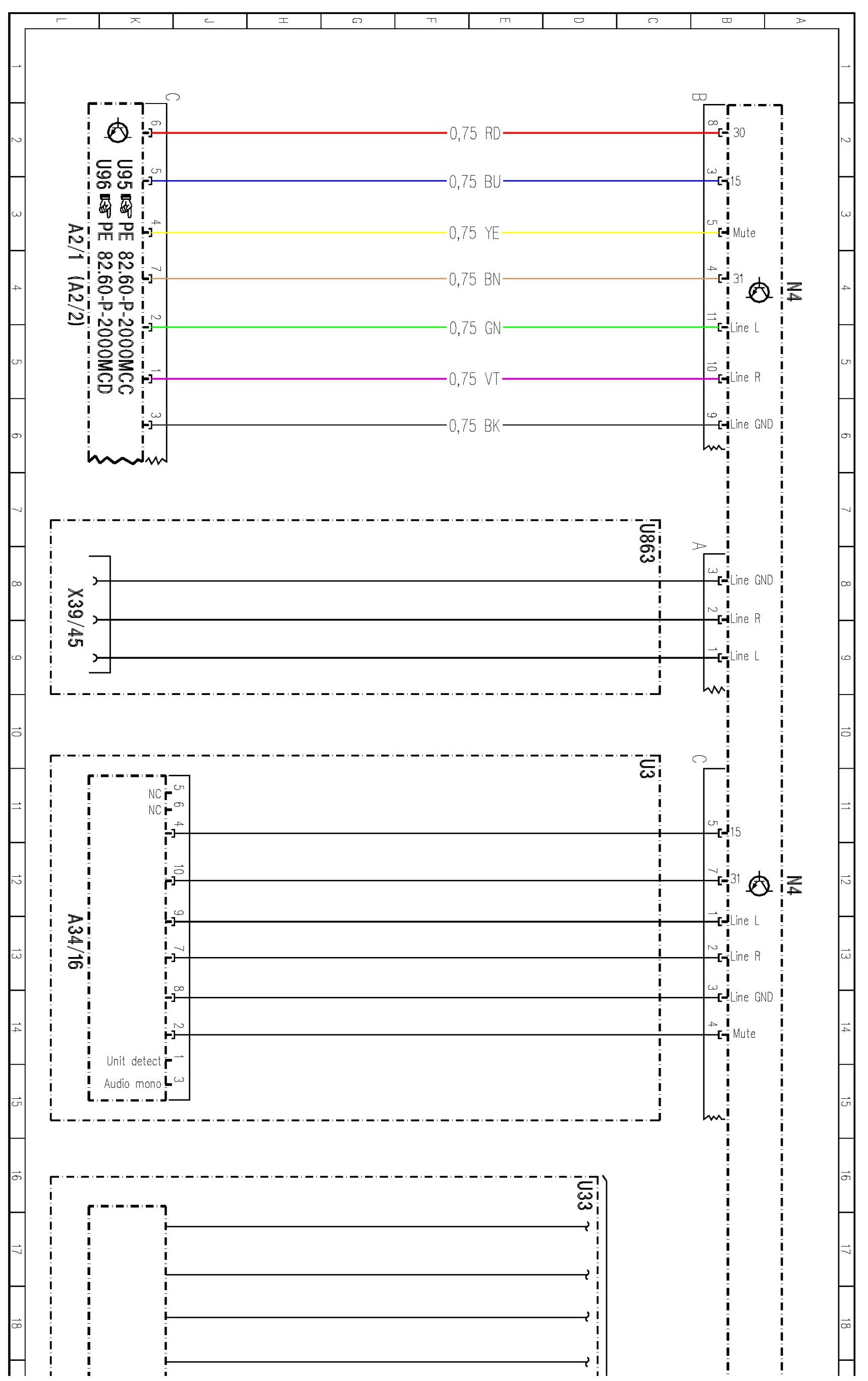

Communications Control Module



PE82.85-P-2002MCC Communications Interface (KOM)

451 82 Electrical Systems - Body
MODEL 451 to 08/30/10
