Removal [06/2015 - ]: Procedure
- REMOVE FLYWHEEL HOUSING UNDER COVER
Refer to REMOVAL [06/2015 - ]

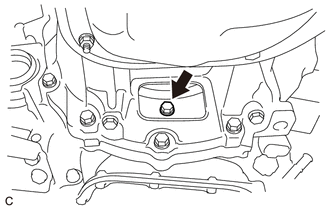

- REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
- Turn the crankshaft to gain access to the 6 drive plate and torque converter assembly setting bolts and remove each drive plate and torque converter assembly setting bolt while holding the crankshaft pulley bolt with a wrench.
HINT:
There will be one black colored drive plate and torque converter assembly setting bolt.
- Turn the crankshaft to gain access to the 6 drive plate and torque converter assembly setting bolts and remove each drive plate and torque converter assembly setting bolt while holding the crankshaft pulley bolt with a wrench.
- REMOVE FRONT SUSPENSION MEMBER REAR BRACE LH
Refer to PROCEDURE - Step 21
- REMOVE FRONT SUSPENSION MEMBER REAR BRACE RH
Refer to PROCEDURE - Step 22
- REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23
- REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
Refer to PROCEDURE - Step 49
- REMOVE FRONT ENGINE MOUNTING INSULATOR
Refer to PROCEDURE - Step 52
- REMOVE REAR ENGINE MOUNTING INSULATOR
Refer to PROCEDURE - Step 53
- REMOVE WIRE HARNESS CLAMP BRACKET
Refer to PROCEDURE - Step 50
- INSTALL ENGINE HANGER
Refer to PROCEDURE - Step 51

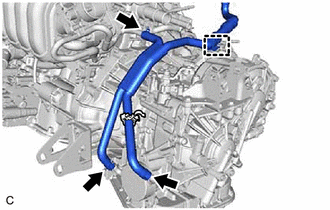

- REMOVE NO. 5 WATER BY-PASS HOSE

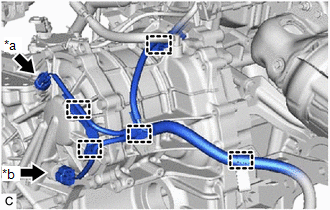

- DISCONNECT ENGINE WIRE

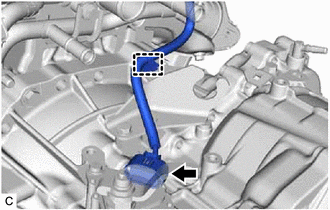

- Disconnect the transmission revolution sensor (NOUT) connector.
*a Transmission Revolution Sensor (NOUT) Connector *b Oil Pressure Sensor Connector - Disconnect the oil pressure sensor connector.
- Disengage the 5 clamps.
- Disconnect the park/neutral position switch assembly connector.
- Disengage the clamp.

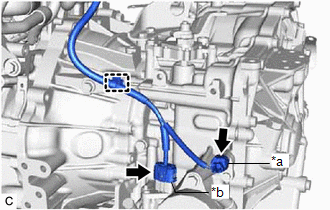

- Disconnect the transmission revolution sensor (NIN) connector.
*a Transmission Revolution Sensor (NIN) Connector *b Transmission Wire Connector - Disconnect the transmission wire connector.
- Disengage the clamp.

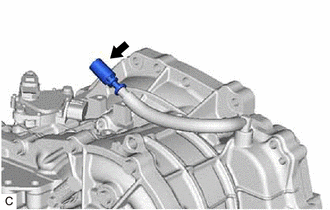

- Disconnect the transmission revolution sensor (NOUT) connector.
- REMOVE FLYWHEEL HOUSING SIDE COVER
Refer to PROCEDURE - Step 59
- REMOVE STARTER ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY
- Using a transmission jack attachment, set the continuously variable transaxle assembly on a transmission jack.NOTE:
- Secure the continuously variable transaxle assembly to the transmission jack using a suitable adapter, such as a rope or attachment.
- To prevent the transaxle oil (CVT) pan sub-assembly from deforming, do not place any attachments under the transaxle oil (CVT) pan sub-assembly.
- Hold the engine assembly with a suitable adapter, such as a rope, during the operation.

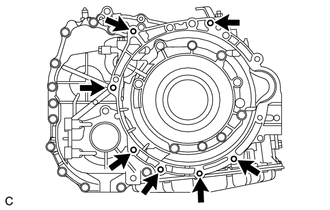

- Remove the 7 bolts and continuously variable transaxle assembly from the engine assembly.NOTE:
To prevent damage to the 2 knock pins, do not pry between the continuously variable transaxle assembly and engine assembly.
- Using a transmission jack attachment, set the continuously variable transaxle assembly on a transmission jack.

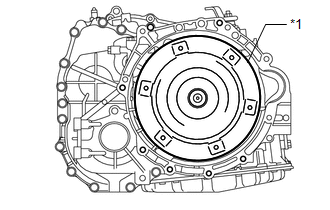

- REMOVE TORQUE CONVERTER ASSEMBLY
- REMOVE CVT OIL PUMP TYPE T OIL SEAL WARNING:
- Do not remove the front oil pump assembly from the continuously variable transaxle assembly, as there is a possibility of the entry of dust and foreign matter.
- Clean the work area, the tools to be used, and other equipment, etc. thoroughly before the operation, as there is a possibility that a continuously variable transaxle assembly malfunction, which may prevent the vehicle from being driven, may occur if dust or fine foreign matter enters the continuously variable transaxle assembly.
- Do not use cotton work gloves, cloths, paper towels, etc. that may produce lint, dust or foreign matter.
- Perform the operation as quickly as possible, as dust and foreign matter may enter the continuously variable transaxle assembly while the torque converter assembly is removed.
- Do not use an air gun until the torque converter assembly has been installed, as it may cause dust and foreign matter to be stirred up.
- Clean the tips of both the claws of SST and the center bolt.
- SST: 09308-10010

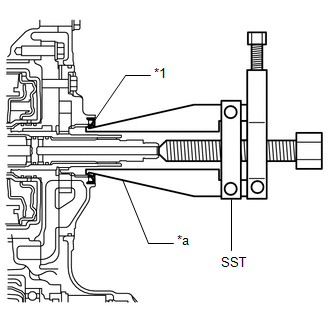

- Using SST, remove the CVT oil pump type T oil seal from the continuously variable transaxle assembly.
*1 CVT Oil Pump Type T Oil Seal *a Claw NOTE:Pay attention to the angle of the claws of SST when opening them, and ensure that they do not come into contact with the oil pump housing, as there is the possibility that metal particles may be produced if they do.

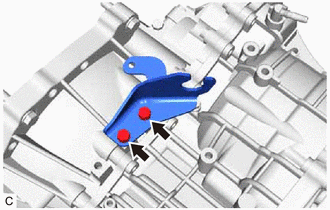

- REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET

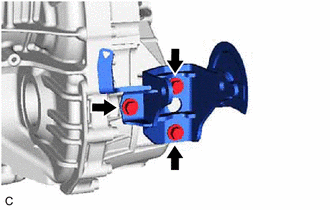

- REMOVE FRONT ENGINE MOUNTING BRACKET

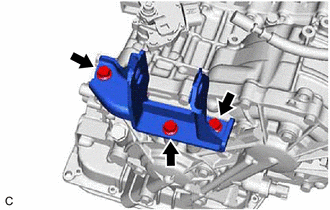

- REMOVE REAR ENGINE MOUNTING BRACKET

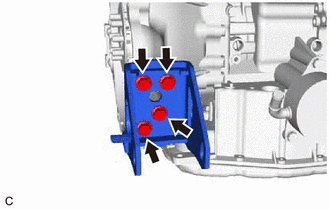

- REMOVE ENGINE MOUNTING BRACKET LH

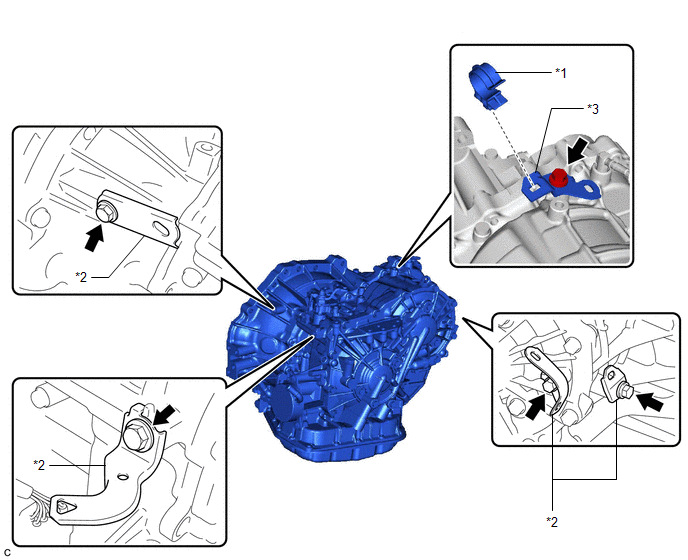

- REMOVE WIRE HARNESS CLAMP BRACKET
- Remove the water by-pass hose clamp from the water by-pass hose clamp bracket.
*1 Water By-pass Hose Clamp *2 Wire Harness Clamp Bracket *3 Water By-pass Hose Clamp Bracket - - - Remove the 5 bolts, 4 wire harness clamp brackets and water by-pass hose clamp bracket from the continuously variable transaxle assembly.
- Remove the water by-pass hose clamp from the water by-pass hose clamp bracket.

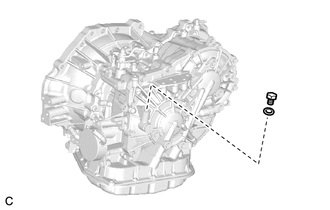

- REMOVE WITH HEAD STRAIGHT SCREW PLUG
HINT:
Perform this procedure only when replacement of the with head straight screw plug is necessary.
- REMOVE NO. 1 BREATHER PLUG (CVT)
HINT:
Perform this procedure only when replacement of the No. 1 breather plug (CVT) is necessary.
- INSPECT TORQUE CONVERTER ASSEMBLY
See step 1
- INSPECT DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
See step 2
