Components [06/2015 - ]: Illustration

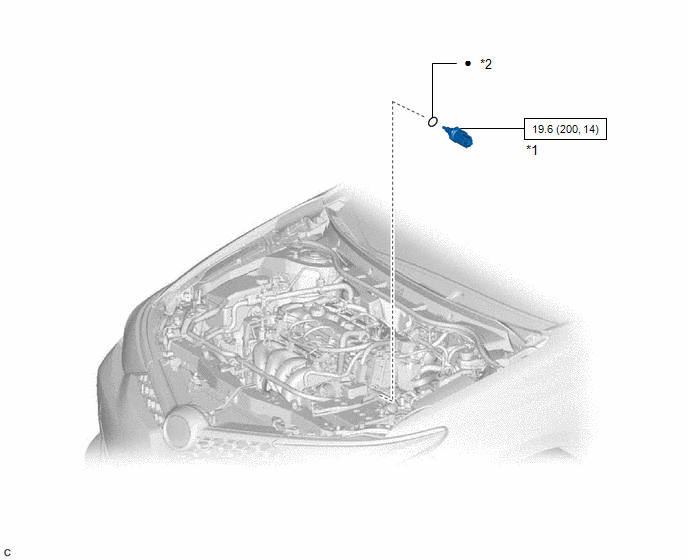

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY485660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
