Inspection [07/2015 - ]: Procedure

  1. INSPECT REAR POWER WINDOW SWITCH
    1. Disconnect the negative battery cable.

      Refer to PROCEDURE - Step 1

    2. Remove the power window subswitch.

      See step  1

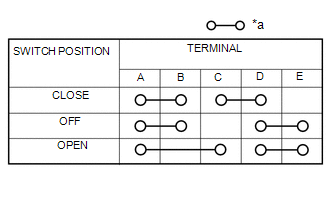

    3. Verify that the continuity is as indicated in the table using a tester.
      GTY487472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Continuity

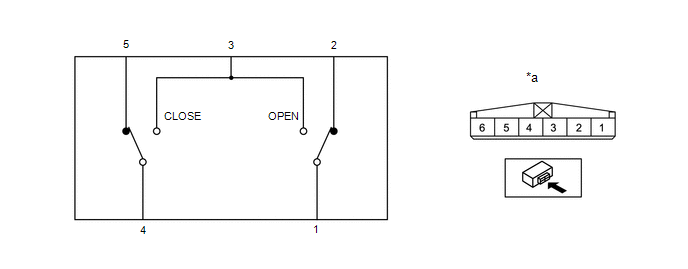

      GTY484679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Power Window Subswitch Connector - -

      If not as indicated in the table, replace the power window subswitch.
