Automatic Transaxle Unit: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
    1. Remove the bolt and speedometer driven hole cover sub-assembly from the transaxle housing.
      Fig 1: Identifying Speedometer Driven Hole Cover Sub-Assembly Bolt
      GTY158151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the speedometer driven hole cover sub-assembly.
  2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Remove the nut, washer and control shaft lever.
      Fig 2: Identifying Control Shaft Lever Nut
      GTY165922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pry out the lock plate and remove the manual valve shaft nut.
      Fig 3: Identifying Lock Plate & Manual Valve Shaft Nut
      GTY157865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and pull out the park/neutral position switch assembly.
      Fig 4: Identifying Park/Neutral Position Switch Bolts
      GTY166399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SPEED SENSOR
    1. Remove the bolt and remove the speed sensor from the transaxle case.
      Fig 5: Identifying Speed Sensor Bolt
      GTY159491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE OIL COOLER TUBE UNION
    1. Remove the 2 oil cooler tube unions from the transaxle case.
      Fig 6: Identifying Oil Cooler Tube Unions
      GTY165838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the 2 oil cooler tube unions.
  5. REMOVE NO. 1 TRANSAXLE CASE PLUG
    1. Remove the 4 No. 1 transaxle case plugs from the transaxle housing and transaxle case.
      Fig 7: Identifying No. 1 Transaxle Case Plugs
      GTY164121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 transaxle case plug from the transaxle case.
      Fig 8: Identifying No. 1 Transaxle Case Plug
      GTY163661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-rings from the No. 1 transaxle case plugs.
  6. REMOVE BREATHER PLUG HOSE
    1. Remove the breather plug hose from the breather plug.
      Fig 9: Identifying Breather Plug Hose
      GTY159492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BREATHER PLUG
    1. Remove the breather plug from the transaxle case.
  8. FIX AUTOMATIC TRANSAXLE ASSEMBLY
    1. Place the transaxle onto wooden blocks.
      Fig 10: Placing Transaxle Onto Wooden Blocks
      GTY165646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
    1. Remove the 19 bolts and remove the oil pan and oil pan gasket.
      Fig 11: Identifying Automatic Transaxle Oil Pan Bolts
      GTY159478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 oil cleaner magnets from the oil pan.
      Fig 12: Identifying Magnets
      GTY165608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Examine the particles in the pan.
      1. Collect any steel chips with the removed magnets.

        Carefully look at the foreign matter and particles in the pan and on the magnets to predict the type of wear which might be found in the transaxle.

        Steel (magnetic): bearing, gear and clutch plate wear

        Brass (non-magnetic): bearing wear

  10. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
    1. Remove the 3 bolts and remove the oil strainer assembly.
      Fig 13: Identifying Oil Strainer Bolts
      GTY163082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil strainer gasket from the oil strainer.
      Fig 14: Identifying Oil Strainer Gasket
      GTY163023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
    1. Disconnect the 5 solenoid connectors.
      Fig 15: Identifying Solenoid Connectors
      GTY163983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and lock plate and remove the ATF temperature sensor.
    3. Remove the 2 bolts and remove the detent spring cover and detent spring.
      Fig 16: Identifying Bolts & Detent Spring Cover & Detent Spring
      GTY159076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 13 bolts and the valve body assembly from the transaxle case.
      Fig 17: Identifying Valve Body Assembly Bolts
      GTY166248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TRANSMISSION WIRE
    1. Remove the bolt and the transmission wire from the transaxle case.
      Fig 18: Identifying Transmission Wire Bolt
      GTY165579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the transmission wire.
      Fig 19: Identifying Transmission Wire O-Ring
      GTY165291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE TRANSAXLE CASE 2ND BRAKE GASKET
    1. Remove the transaxle case 2nd brake gasket from the transaxle case.
      Fig 20: Identifying Transaxle Case 2nd Brake Gasket
      GTY159493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE TRANSAXLE CASE GASKET
    1. Remove the transaxle case gasket from the transaxle case.
      Fig 21: Identifying Transaxle Case Gasket
      GTY159494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE BRAKE DRUM GASKET
    1. Remove the brake drum gasket from the transaxle case.
      Fig 22: Identifying Brake Drum Gasket
      GTY166338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CHECK BALL BODY
    1. Remove the check ball body and spring from the transaxle case.
      Fig 23: Identifying Check Ball Body & Spring
      GTY164695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE B-2 ACCUMULATOR PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the oil hole and remove the B-2 accumulator piston and spring.

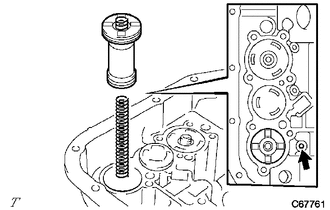

      Fig 24: Identifying B-2 Accumulator Piston & Spring
      GTY164693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Blowing the air may cause the piston to jump out. When removing the piston, hold it by hand using a piece of cloth.
      • Do not splash ATF with the compressed air.
    2. Remove the 2 O-rings from the B-2 accumulator piston.
      Fig 25: Identifying B-2 Accumulator Piston O-Rings
      GTY166652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE C-3 ACCUMULATOR PISTON

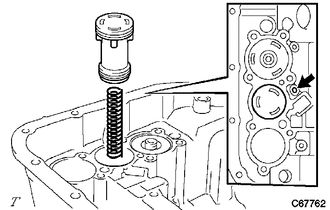

    Fig 26: Identifying C-3 Accumulator Piston & Spring
    GTY159495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the oil hole and remove the C-3 accumulator piston and spring.
      NOTE:
      • Blowing the air may cause the piston to jump out. When removing the piston, hold it with your hand using a piece of cloth.
      • Do not splash ATF with the compressed air.
    2. Remove the 2 O-rings from the C-3 accumulator piston.
      Fig 27: Identifying C-3 Accumulator Piston O-Rings
      GTY166835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE C-2 ACCUMULATOR PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the oil hole and remove the C-2 accumulator piston and the spring.

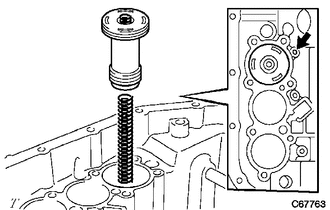

      Fig 28: Identifying C-2 Accumulator Piston & Spring
      GTY159496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Blowing the air may cause the piston to jump out. When removing the piston, hold it by hand using a shop rag or piece of cloth.
      • Do not splash ATF with the compressed air.
    2. Remove the 2 O-rings from the C-2 accumulator piston.
      Fig 29: Identifying C-2 Accumulator Piston O-Rings
      GTY166042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE TRANSAXLE HOUSING
    1. Remove the 14 bolts.
      Fig 30: Identifying Transaxle Housing Bolts
      GTY166875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tap around the circumference of the transaxle housing with a plastic hammer to remove the transaxle housing from the transaxle case.
      NOTE:

      The differential gear assembly may be accidentally removed when the transaxle housing is removed.

  21. INSPECT INPUT SHAFT END PLAY
    1. Measure the end play in the axial direction.
      Fig 31: Measuring Input Shaft End Play
      GTY165173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      End play

      0.374 to 1.292 mm (0.0147 to 0.0509 in.)

      If the end play is not as specified, replace the stator shaft thrust needle roller bearing and the forward clutch hub thrust needle roller bearing.

  22. REMOVE OIL PUMP ASSEMBLY
    1. Remove the 7 bolts and the oil pump assembly from the transaxle case.
      Fig 32: Identifying Oil Pump Assembly Bolts
      GTY159398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE DIFFERENTIAL GEAR ASSEMBLY
    1. Remove the differential gear assembly from the transaxle case.
      Fig 33: Identifying Differential Gear Assembly
      GTY158152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE OVERDRIVE BRAKE GASKET
    1. Using a screwdriver, remove the 2 overdrive brake gaskets from the transaxle case.
      Fig 34: Identifying Overdrive Brake Gaskets
      GTY162284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE INPUT SHAFT ASSEMBLY
    1. Remove the input shaft assembly from the transaxle case.
      Fig 35: Identifying Input Shaft Assembly
      GTY166511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE STATOR SHAFT THRUST NEEDLE ROLLER BEARING
    1. Remove the thrust needle roller bearing from the input shaft.
      Fig 36: Identifying Stator Shaft Thrust Needle Roller Bearing
      GTY159400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE FORWARD CLUTCH HUB THRUST NEEDLE ROLLER BEARING
    1. Remove the thrust needle roller bearing from the forward clutch hub.

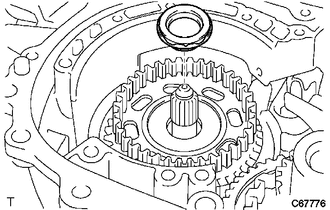

      Fig 37: Identifying Forward Clutch Hub Thrust Needle Roller Bearing
      GTY159399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSPECT INTERMEDIATE SHAFT ASSEMBLY
    1. Using a dial indicator, measure the intermediate shaft end play.
      Fig 38: Measuring Intermediate Shaft End Play With Dial Indicator
      GTY163123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard clearance

      0.204 to 0.966 mm (0.008 to 0.038 in.)

      If the end play is not as specified, select and replace the rear clutch drum thrust needle roller bearing.

  29. REMOVE FORWARD CLUTCH HUB SUB-ASSEMBLY
    1. Remove the forward clutch hub from the transaxle case.
      Fig 39: Identifying Forward Clutch Hub
      GTY163642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR TRANSAXLE COVER ASSEMBLY
    1. Remove the 11 bolts.
      Fig 40: Identifying Rear Transaxle Cover Bolts
      GTY157864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tap around the circumference of the rear transaxle cover with a plastic hammer to remove the rear transaxle cover from the transaxle case.
  31. REMOVE TRANSAXLE CASE GASKET
    1. Remove the 4 transaxle case gaskets.
      Fig 41: Identifying Transaxle Case Gaskets
      GTY163251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE REAR CLUTCH DRUM THRUST NEEDLE ROLLER BEARING
    1. Using a magnetic finger, remove the thrust needle roller bearing.

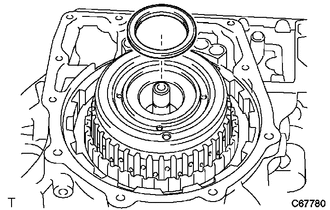

      Fig 42: Identifying Thrust Needle Roller Bearing
      GTY164676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE INTERMEDIATE SHAFT ASSEMBLY
    1. Remove the intermediate shaft assembly from the transaxle case.
      Fig 43: Identifying Intermediate Shaft Assembly
      GTY165400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

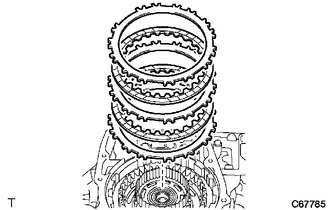

  34. REMOVE 2ND COAST AND OVERDRIVE BRAKE DISC
    1. Remove the flange, 2 discs and 2 No. 2 flanges from the transaxle.
      Fig 44: Identifying 2nd Coast & Overdrive Brake Discs
      GTY164675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

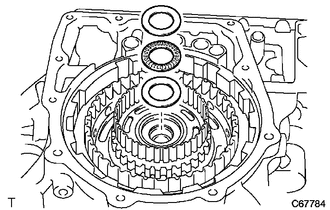

  35. REMOVE THRUST NEEDLE ROLLER BEARING
    1. Using a magnetic finger, remove the C-2 hub thrust bearing race, the thrust needle roller bearing and the No. 3 thrust bearing race from the direct clutch hub.
      Fig 45: Identifying C-2 Hub Thrust Bearing Race, Thrust Needle Roller Bearing & Thrust Bearing Race
      GTY159401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE DIRECT CLUTCH HUB
    1. Remove the direct clutch hub from the transaxle case.
      Fig 46: Identifying Direct Clutch Hub
      GTY165946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

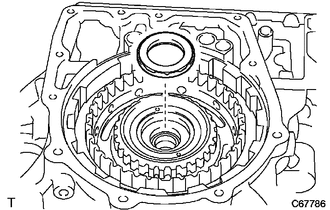

  37. REMOVE REAR NO. 2 PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING
    1. Using a magnetic finger, remove the thrust bearing from the rear thrust needle bearing.
      Fig 47: Identifying Rear No. 2 Planetary Sun Gear Thrust Needle Roller Bearing
      GTY159402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REAR PLANETARY SUN GEAR ASSEMBLY
    1. Remove the rear planetary sun gear from the transaxle case.
      Fig 48: Identifying Rear Planetary Sun Gear
      GTY159353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING
    1. Remove the rear planetary sun gear thrust needle roller bearing and No. 1 planetary carrier thrust washer from the rear planetary sun gear.
      Fig 49: Identifying Rear Planetary Sun Gear Thrust Needle Roller Bearing & No. 1 Planetary Carrier Thrust Washer
      GTY164933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSPECT ONE-WAY CLUTCH ASSEMBLY
    1. Hold the rear planetary sun gear and turn the one-way clutch.
      Fig 50: Inspecting One-Way Clutch Assembly
      GTY162910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Make sure that the one-way clutch turns freely counterclockwise and locks when turned clockwise.
  41. REMOVE ONE-WAY CLUTCH ASSEMBLY
    1. Remove the one-way clutch assembly and No. 2 planetary carrier thrust washer from the rear planetary sun gear.
      Fig 51: Identifying One-Way Clutch Assembly & Planetary Carrier Thrust Washer No. 2
      GTY159367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE 2ND COAST AND OVERDRIVE BRAKE FLANGE HOLE SNAP RING
    1. Using a screwdriver, remove the snap ring from the transaxle case.
      Fig 52: Identifying 2nd Coast & Overdrive Brake Flange Hole Snap Ring
      GTY159352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE 2ND BRAKE DISC
    1. Using a screwdriver, remove the snap ring.

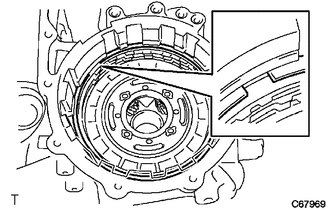

      Fig 53: Identifying Snap Ring
      GTY159350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 flanges, 4 discs and 3 No. 1 flanges from the transaxle.
  44. REMOVE 2ND BRAKE PISTON SLEEVE
    1. Remove the 2nd brake piston sleeve from the transaxle case.
      Fig 54: Identifying 2nd Brake Piston Sleeve
      GTY159351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSPECT NO. 2 ONE-WAY CLUTCH
    1. Turn the rear planetary gear assembly.
      Fig 55: Checking Rear Planetary Gear Assembly
      GTY166748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Make sure that the rear planetary gear assembly turns freely counterclockwise and locks when turned clockwise.
  46. REMOVE REAR PLANETARY GEAR ASSEMBLY
    1. Using a screwdriver, remove the snap ring.

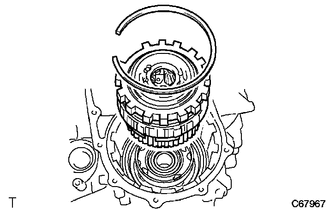

      Fig 56: Identifying Rear Planetary Gear Assembly
      GTY162931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear planetary gear assembly from the transaxle case.
  47. REMOVE REAR PLANETARY GEAR THRUST NEEDLE ROLLER BEARING
    1. Remove the thrust needle roller bearing and 2 bearing races from the rear planetary gear assembly.
      Fig 57: Identifying Thrust Needle Roller Bearing & Bearing Races
      GTY159364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE NO. 2 ONE-WAY CLUTCH
    1. Separate the 2nd brake cylinder, No. 2 one-way clutch and the rear planetary gear.
      Fig 58: Identifying 2nd Brake Assembly, No. 2 One-Way Clutch & Rear Planetary Gear
      GTY159349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE OUTER RACE RETAINER
    1. Remove the retainer from the No. 2 one-way clutch.
      Fig 59: Identifying Outer Race Retainer
      GTY159348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE FRONT PLANETARY SUN GEAR
    1. Remove the front planetary sun gear and thrust needle roller bearing from the transaxle case.

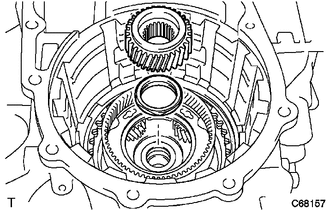

      Fig 60: Identifying Front Planetary Sun Gear & Thrust Needle Roller Bearing
      GTY159363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE 1ST AND REVERSE BRAKE DISC
    1. Using a screwdriver, remove the snap ring.

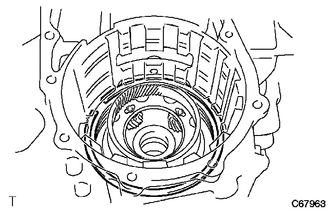

      Fig 61: Identifying Flange, Discs & Plates
      GTY159347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the flange, 4 discs and 4 plates from the transaxle case.
  52. REMOVE COUNTER DRIVE GEAR NUT
    1. Fix the counter driven gear with the parking lock pawl.
      Fig 62: Identifying Counter Driven Gear With Parking Lock Pawl
      GTY159447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, release the lock washer.
      Fig 63: Releasing Lock Washer Using SST
      GTY163520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09930-00010
    3. Using SST, remove the nut and lock washer.
      Fig 64: Removing Nut & Lock Washer Using SST
      GTY157788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09387-00121
  53. REMOVE PLANETARY GEAR ASSEMBLY
    1. Using SST and a press, remove the planetary gear assembly from the transaxle case.
      Fig 65: Removing Planetary Gear Assembly From Transaxle Case Using SST
      GTY157787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        • 09951-00400
        • 09951-00320
        • 09952-06010
      • SST: 09950-70010
        • 09951-07100
  54. REMOVE COUNTER DRIVE GEAR
    1. Install the 2 bolts to the counter drive gear.
      Fig 66: Identifying Counter Drive Gear Removal Bolts
      GTY163262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (M6)

      Length = 40 to 80 mm (1.57 to 3.15 in.)

      Pitch = 1.0 mm (0.04 in.)

    2. Rotate the 2 bolts and remove the counter drive gear and front planetary sun gear.
    3. Remove the 2 radial ball bearings from the counter drive gear and front planetary sun gear.
  55. REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
    1. Using SST, a press and a screwdriver, remove the snap ring.
      Fig 67: Removing/Installing 1st & Reverse Brake Return Spring Snap Ring Using SST
      GTY162539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09387-00070
    2. Remove the 1st and reverse brake return spring sub-assembly.
  56. REMOVE NO. 2 1ST AND REVERSE BRAKE PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the transaxle case to remove the No. 2 1st and reverse brake piston.

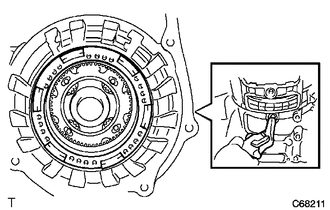

      Fig 68: Removing No. 2 1st & Reverse Brake Piston
      GTY165203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Blowing the air may cause the piston to jump out. When removing the piston, hold it by hand using a piece of cloth.
      • Do not splash ATF with the compressed air.
  57. REMOVE NO. 2 1ST AND REVERSE BRAKE PISTON O-RING
    1. Remove the 2 O-rings from No. 2 1st and reverse brake piston.
      Fig 69: Identifying No. 2 1st & Reverse Brake Piston O-Rings
      GTY159448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE PARKING LOCK PAWL BRACKET
    1. Remove the 3 bolts, cam guide and bracket from the transaxle case.
      Fig 70: Identifying Parking Lock Pawl Bracket Bolts
      GTY164215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE MANUAL VALVE LEVER SHAFT RETAINER SPRING
    1. Remove the manual valve lever shaft retainer spring from the manual valve lever shaft.
      Fig 71: Identifying Manual Valve Lever Shaft Retainer Spring
      GTY159446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY
    1. Using a screwdriver, release and remove the spacer.
      Fig 72: Removing Manual Valve Lever Spacer
      GTY162937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a pin punch and hammer, drive out the manual valve lever shaft spring pin.
      Fig 73: Driving Out/In Manual Valve Lever Shaft Spring Pin
      GTY159444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the manual valve lever shaft and manual valve lever.
  61. REMOVE PARKING LOCK ROD SUB-ASSEMBLY
    1. Remove the parking lock rod from the manual valve lever.
      Fig 74: Identifying Parking Lock Rod
      GTY165851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE MANUAL VALVE LEVER SHAFT
    1. Remove the manual valve lever shaft from the transaxle case.
      Fig 75: Identifying Manual Valve Lever Shaft
      GTY165593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  63. REMOVE PARKING LOCK PAWL
    1. Using a screwdriver, remove the parking lock pawl shaft from the transaxle case.
      Fig 76: Identifying Parking Lock Pawl Torsion Spring
      GTY159443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the parking lock pawl torsion spring and parking lock pawl from the transaxle case.
  64. REMOVE COUNTER DRIVEN GEAR

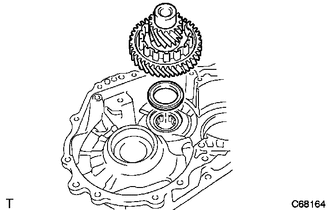

    1. Remove the counter driven gear, drive pinion and thrust needle roller bearing from the transaxle case.
      Fig 77: Identifying Counter Driven Gear, Drive Pinion & Thrust Needle Roller Bearing
      GTY159368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. REMOVE DIFFERENTIAL DRIVE PINION PLUG
    1. Using a brass bar and a hammer, remove the differential drive pinion plug.
      Fig 78: Removing Differential Drive Pinion Plug Using Brass Bar
      GTY159377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. REMOVE DIFFERENTIAL DRIVE PINION
    1. Using SST and a press, remove the differential drive pinion from the counter driven gear.
      Fig 79: Removing Differential Drive Pinion From Counter Driven Gear Using SST
      GTY157701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        • 09951-00350
      • SST: 09950-70010
        • 09951-07150
  67. REMOVE BEARING LOCK PLATE
    1. Remove the bolt and the bearing lock plate.
      Fig 80: Identifying Bearing Lock Plate Bolt
      GTY165722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE
    1. Remove the differential gear lube apply tube from the transaxle housing.
      Fig 81: Identifying Differential Gear Lube Apply Tube
      GTY159376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE FRONT DRIVE PINION FRONT TAPERED ROLLER BEARING
    1. Using SST, remove the front drive pinion front tapered roller bearing from the transaxle housing.
      Fig 82: Removing Front Drive Pinion Front Tapered Roller Bearing Using SST
      GTY159397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-10010
  70. REMOVE FRONT DRIVE PINION REAR TAPERED ROLLER BEARING
    1. Using SST, remove the front drive pinion rear tapered roller bearing from the transaxle case.
      Fig 83: Removing Front Drive Pinion Rear Tapered Roller Bearing Using SST
      GTY159442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09612-65014
        • 09612-01040
    2. Remove the No. 1 transaxle case plate from the transaxle case.
  71. REMOVE COUNTER DRIVE GEAR BEARING LH
    1. Remove the counter drive gear bearing LH from the transaxle case.
    2. Using SST, remove the counter drive gear bearing outer race LH from the transaxle case.
      Fig 84: Removing Counter Drive Gear Bearing Outer Race LH Using SST
      GTY157789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
  72. REMOVE COUNTER DRIVE GEAR BEARING RH
    1. Remove the counter drive gear bearing RH from the transaxle case.
    2. Using SST, remove the counter drive gear bearing outer race RH from the transaxle case.
      Fig 85: Removing Counter Drive Gear Bearing RH Using SST
      GTY164829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
  73. REMOVE COUNTER DRIVE GEAR HOLE SNAP RING
    1. Using a screwdriver, remove the counter drive gear hole snap ring from the transaxle case.
      Fig 86: Identifying Counter Drive Gear Hole Snap Ring
      GTY159445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  74. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL
    1. Using a screwdriver, remove the oil seal from the transaxle case.
      Fig 87: Removing Manual Valve Lever Shaft Oil Seal
      GTY162702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE FRONT TRANSAXLE CASE OIL SEAL
    1. Using SST and a hammer, remove the oil seal from the transaxle case.
      Fig 88: Removing Oil Seal From Transaxle Case Using SST
      GTY159440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        • 09951-00550
      • SST: 09950-70010
        • 09951-07100
  76. REMOVE TRANSAXLE CASE OIL SEAL
    1. Using SST and a hammer, remove the transaxle case oil seal from the transaxle housing.
      Fig 89: Removing Transaxle Case Oil Seal Using SST
      GTY163248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        • 09951-00530
      • SST: 09950-70010
        • 09951-07100
scientia non olet · About LEMON Manuals
