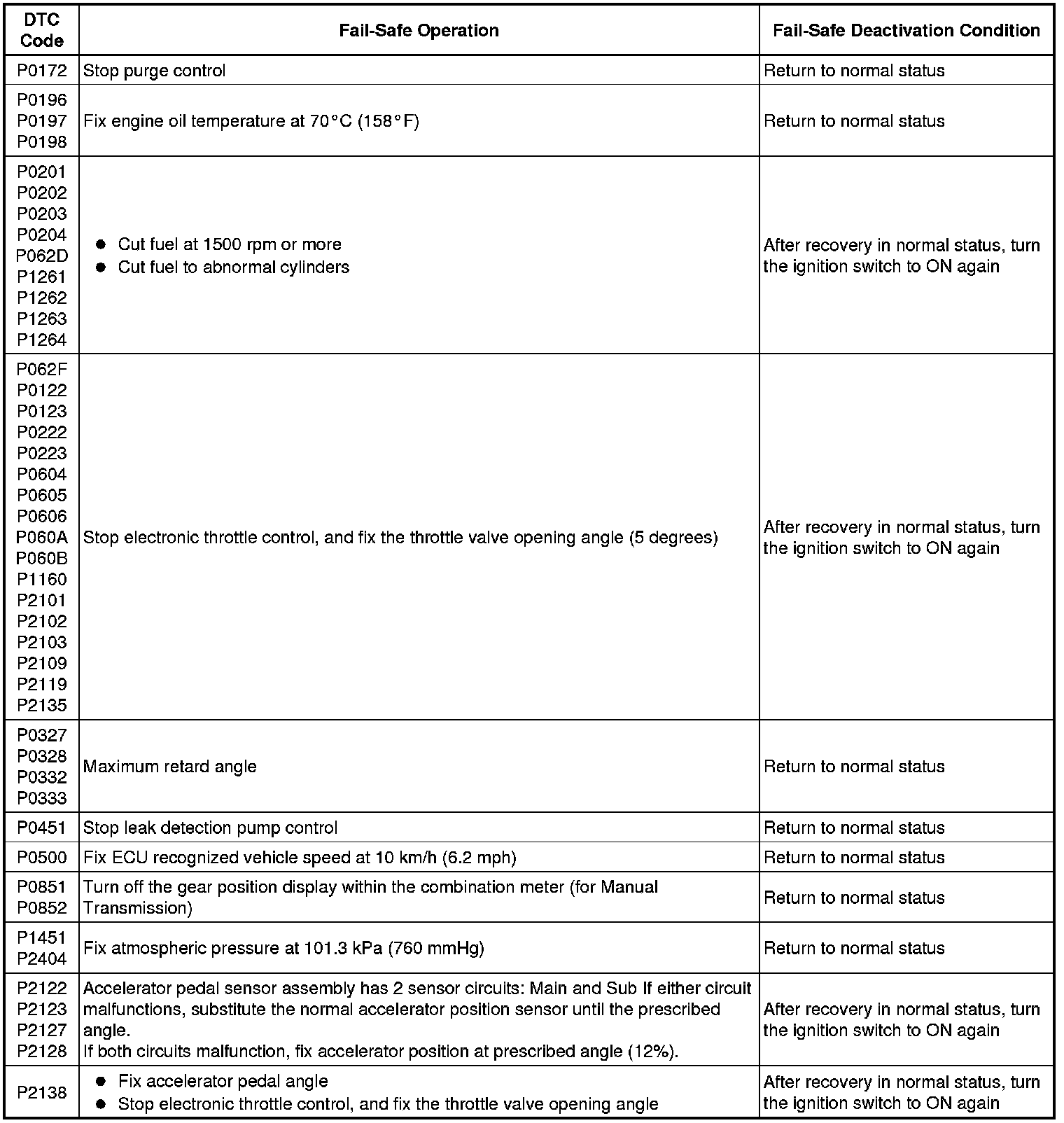

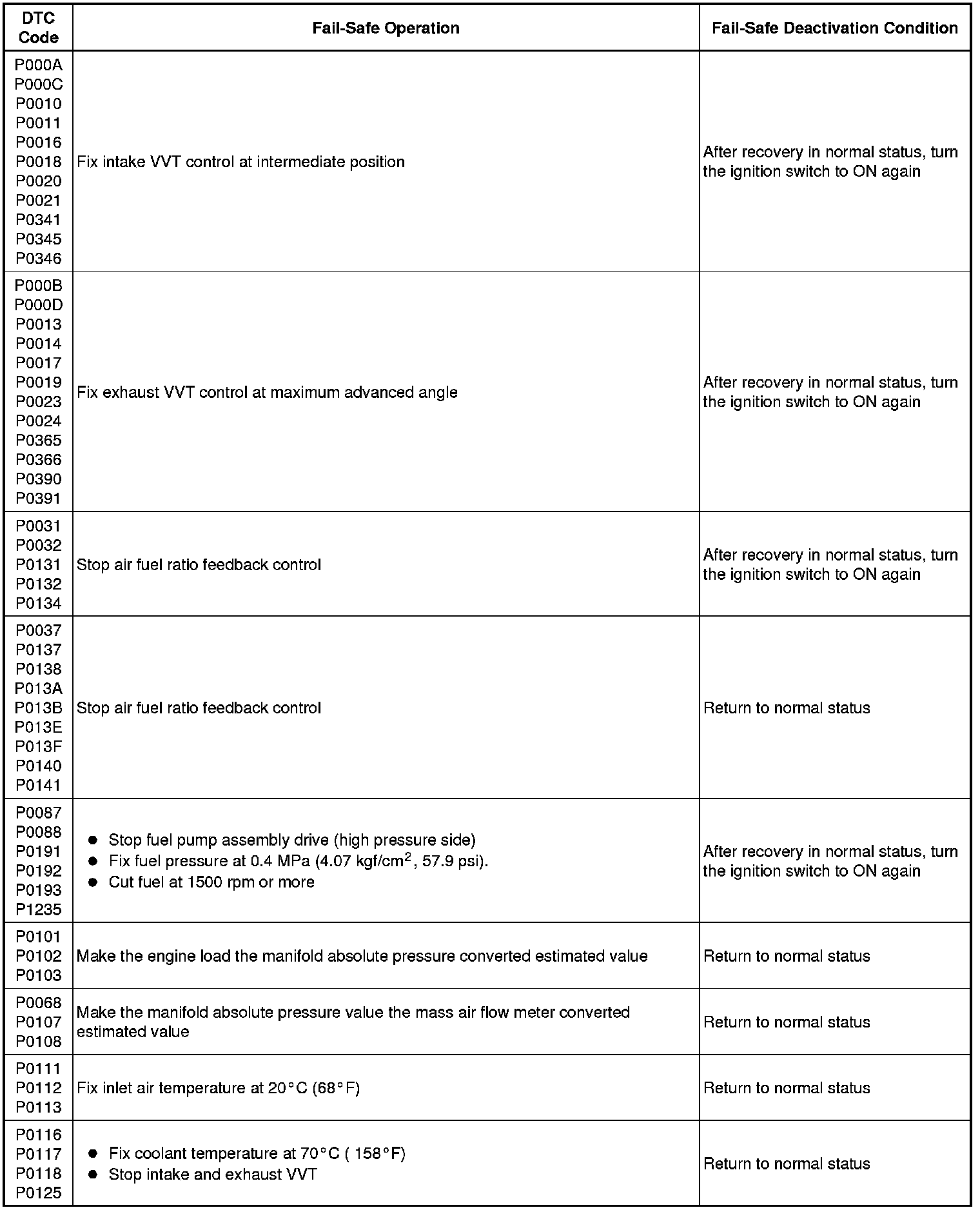

Fail-Safe Chart






FA20 ENGINE CONTROL: SFI SYSTEM: FAIL-SAFE CHART; 2013 MY FR-S [03/2012 -]

If any of the following DTCs are stored, the ECM enters fail-safe mode to allow the vehicle to be driven temporarily or stops fuel injection.
