Installation





WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSTALLATION

1. INSTALL FRONT PASSENGER SIDE POWER WINDOW SWITCH

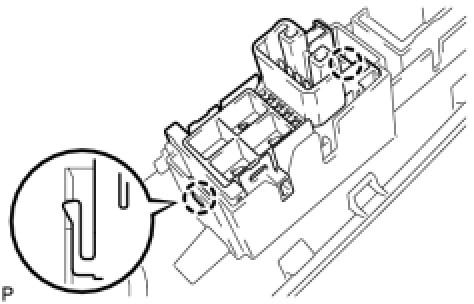

(a) Engage the 2 claws and install the power window switch.

2. INSTALL FRONT ARMREST BASE UPPER PANEL RH Reassembly
