System Specifications

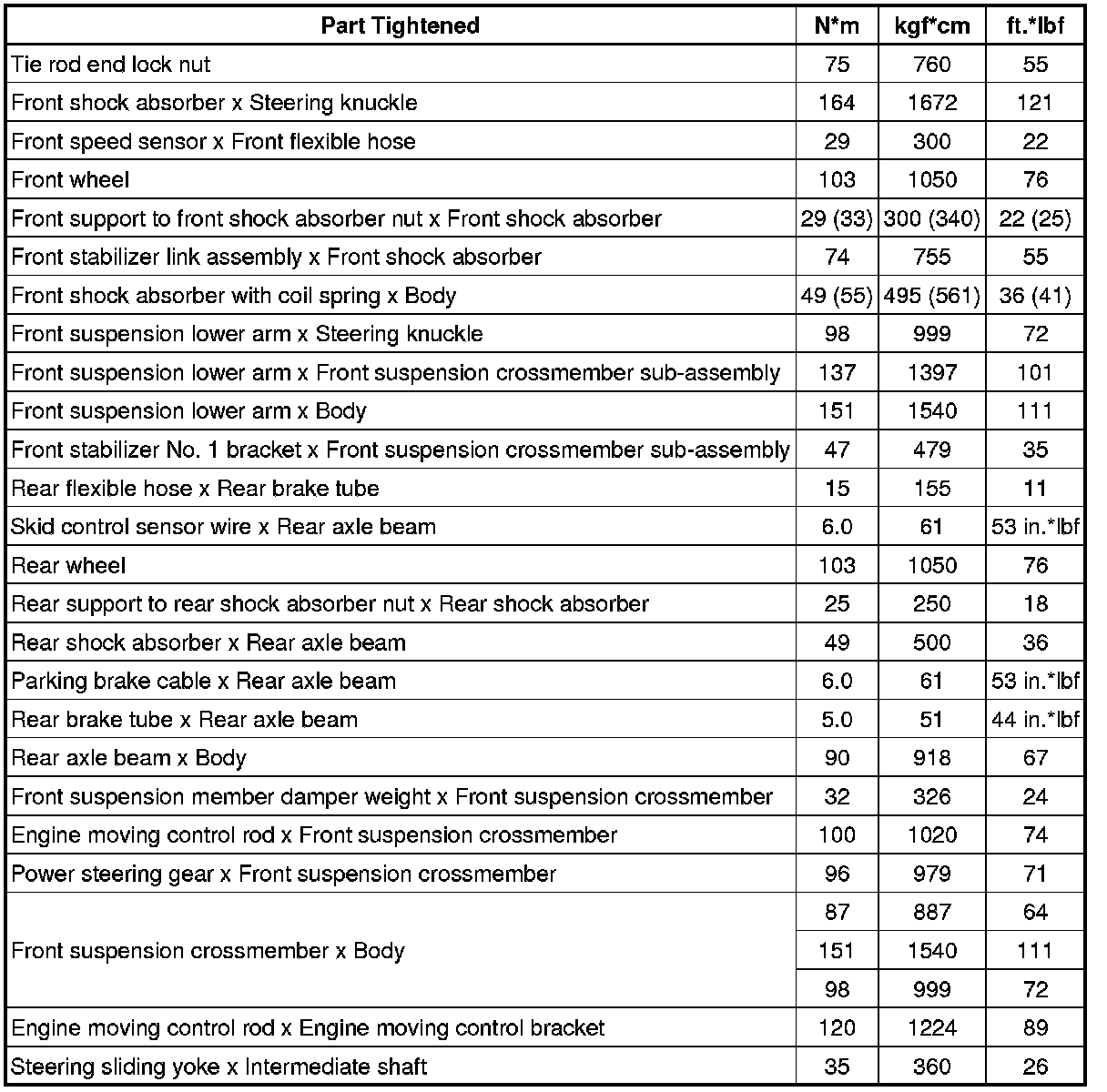

SERVICE SPECIFICATIONS: SUSPENSION: TORQUE SPECIFICATIONS





( ): For use without SST
