Engine Unit: Components: Illustration

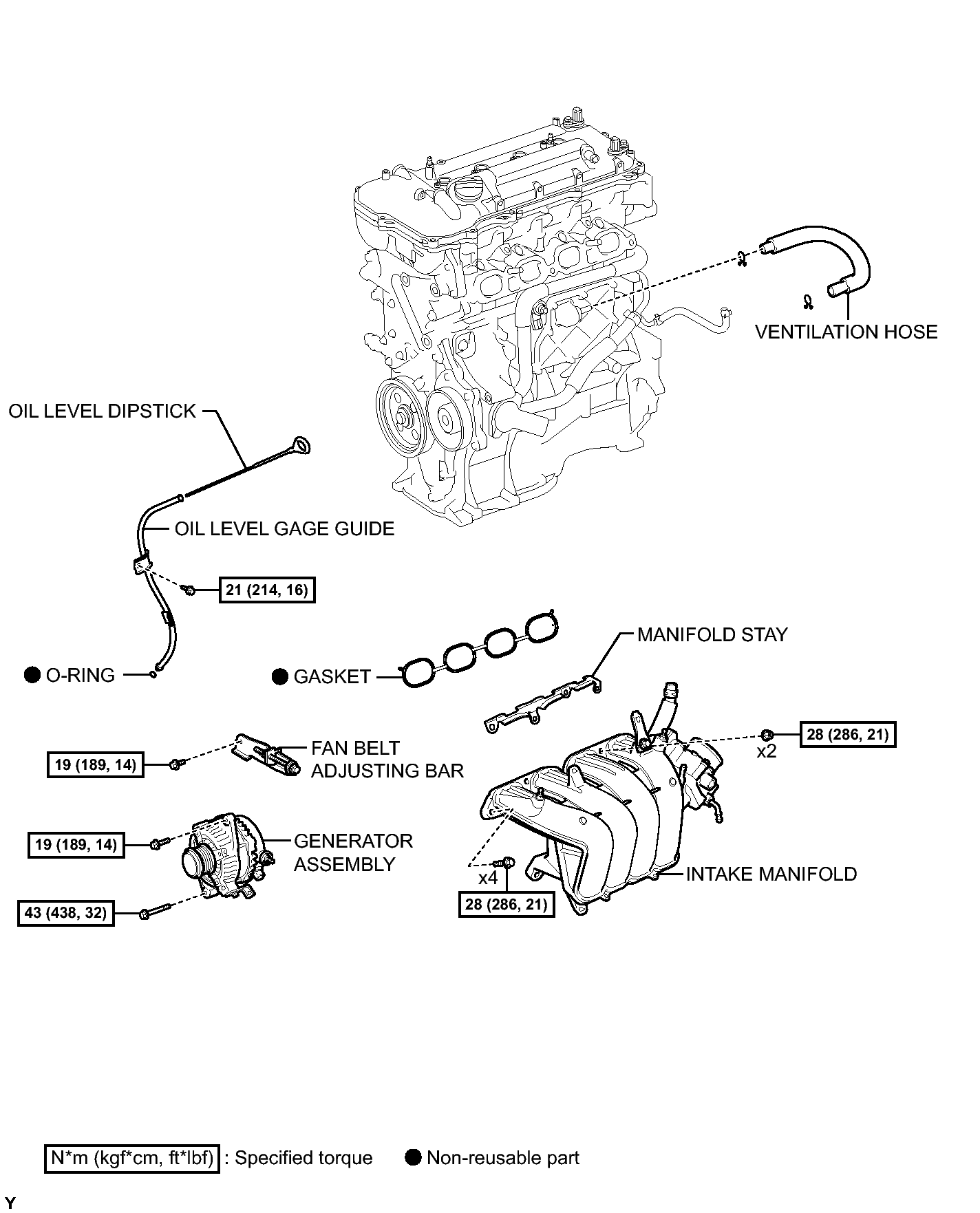

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (1 Of 9)
GTY161000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

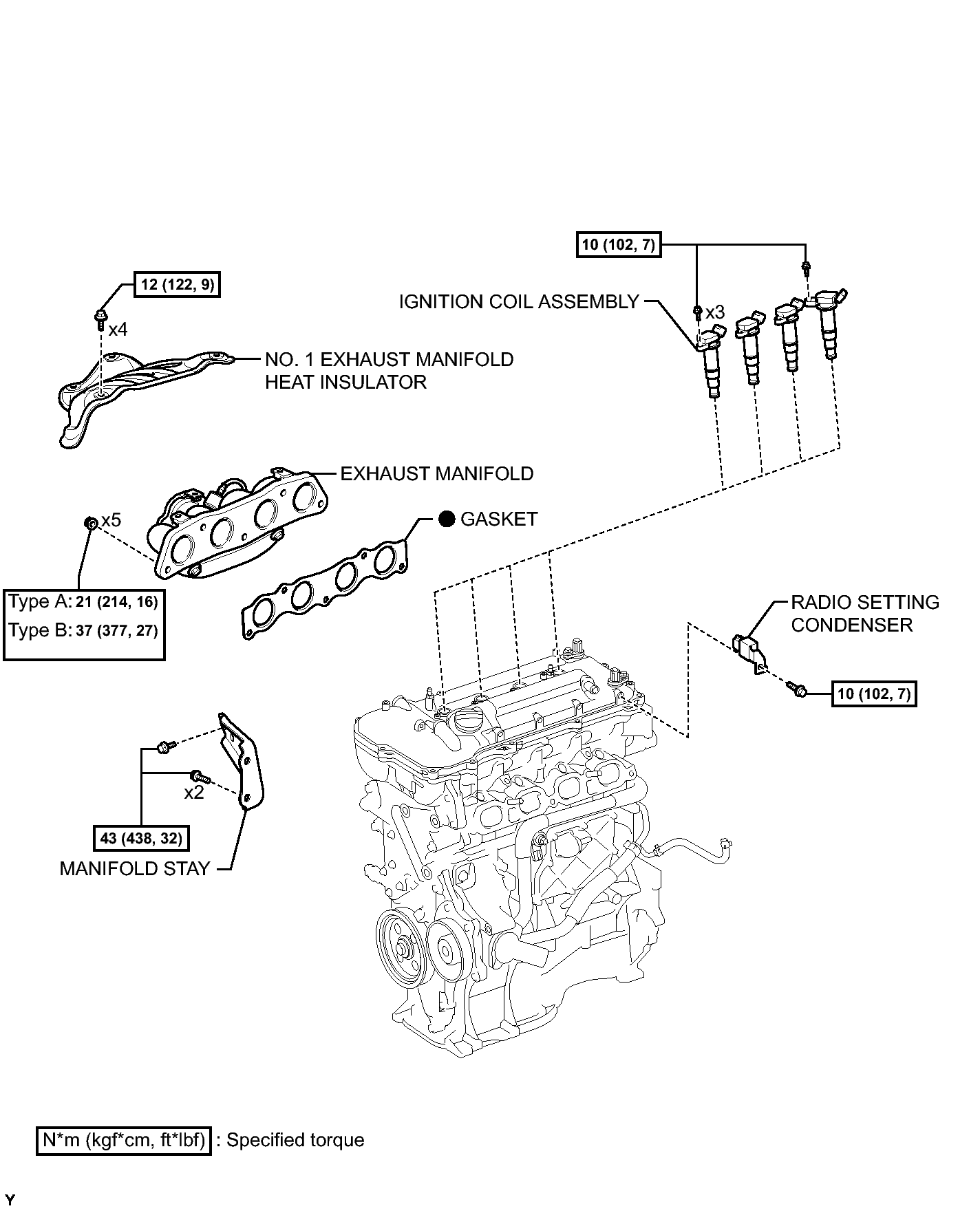

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (2 of 9)
GTY312529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

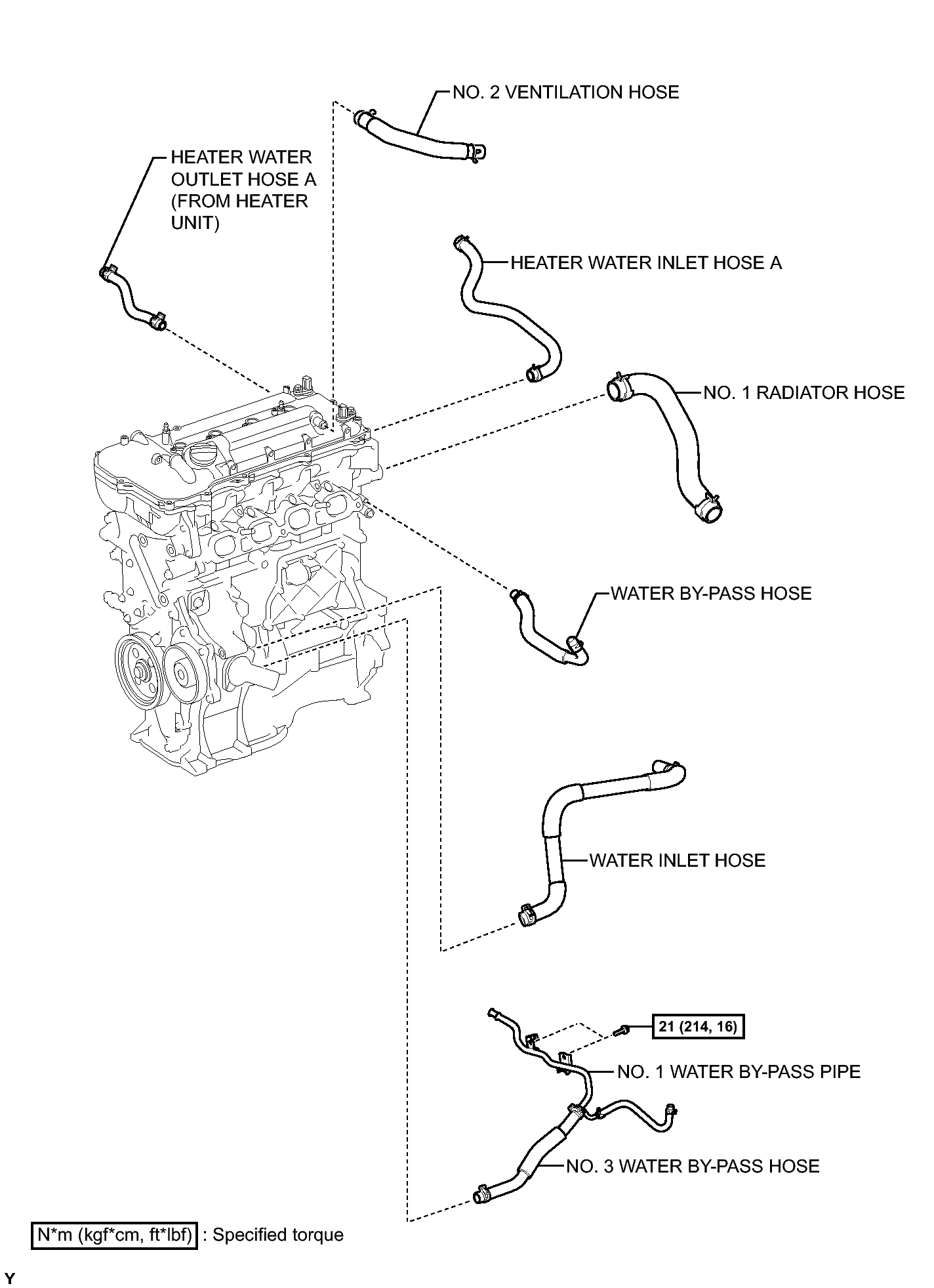

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (13 Of 18)
GTY160907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (4 Of 9)
GTY160905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

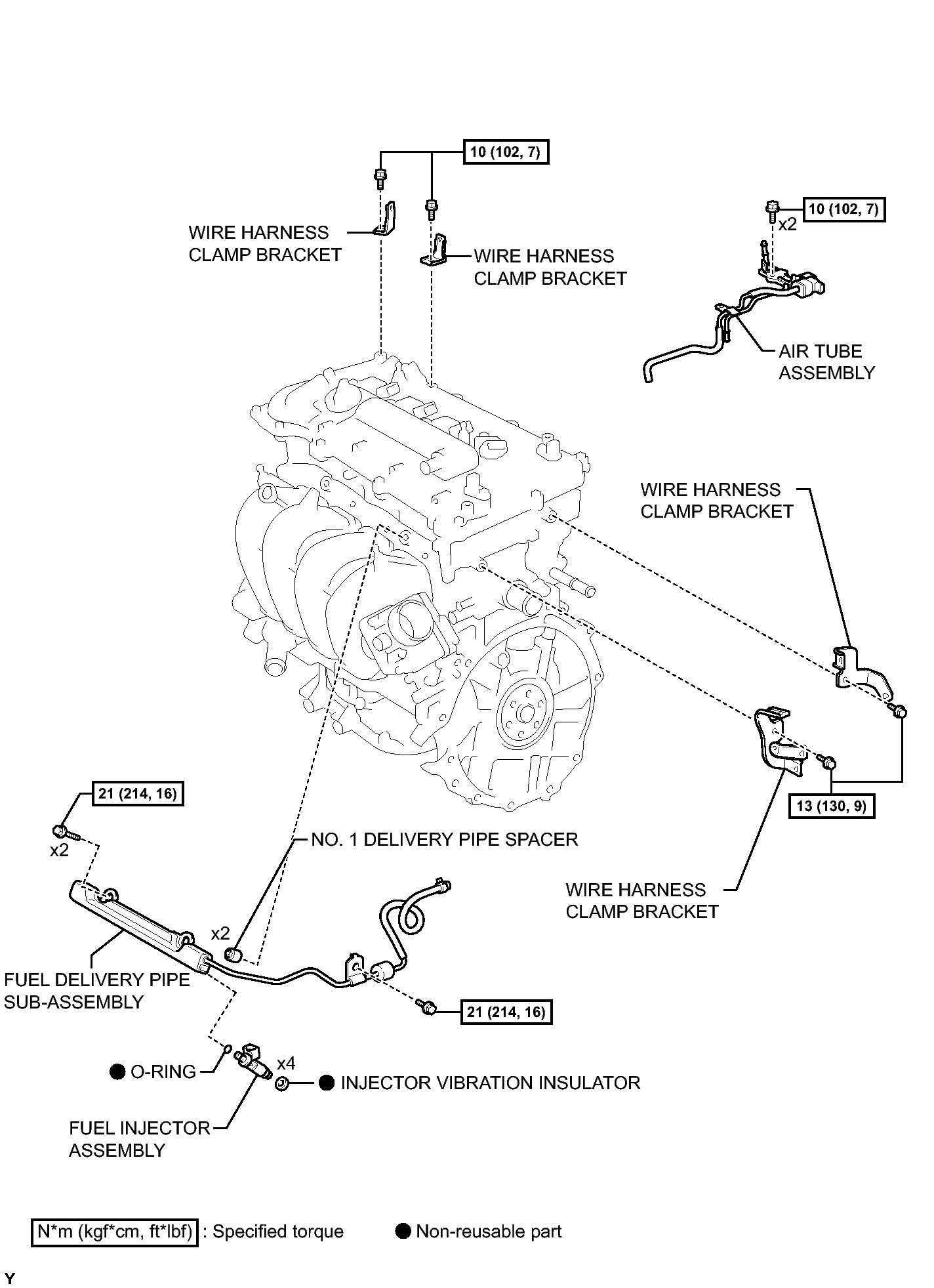

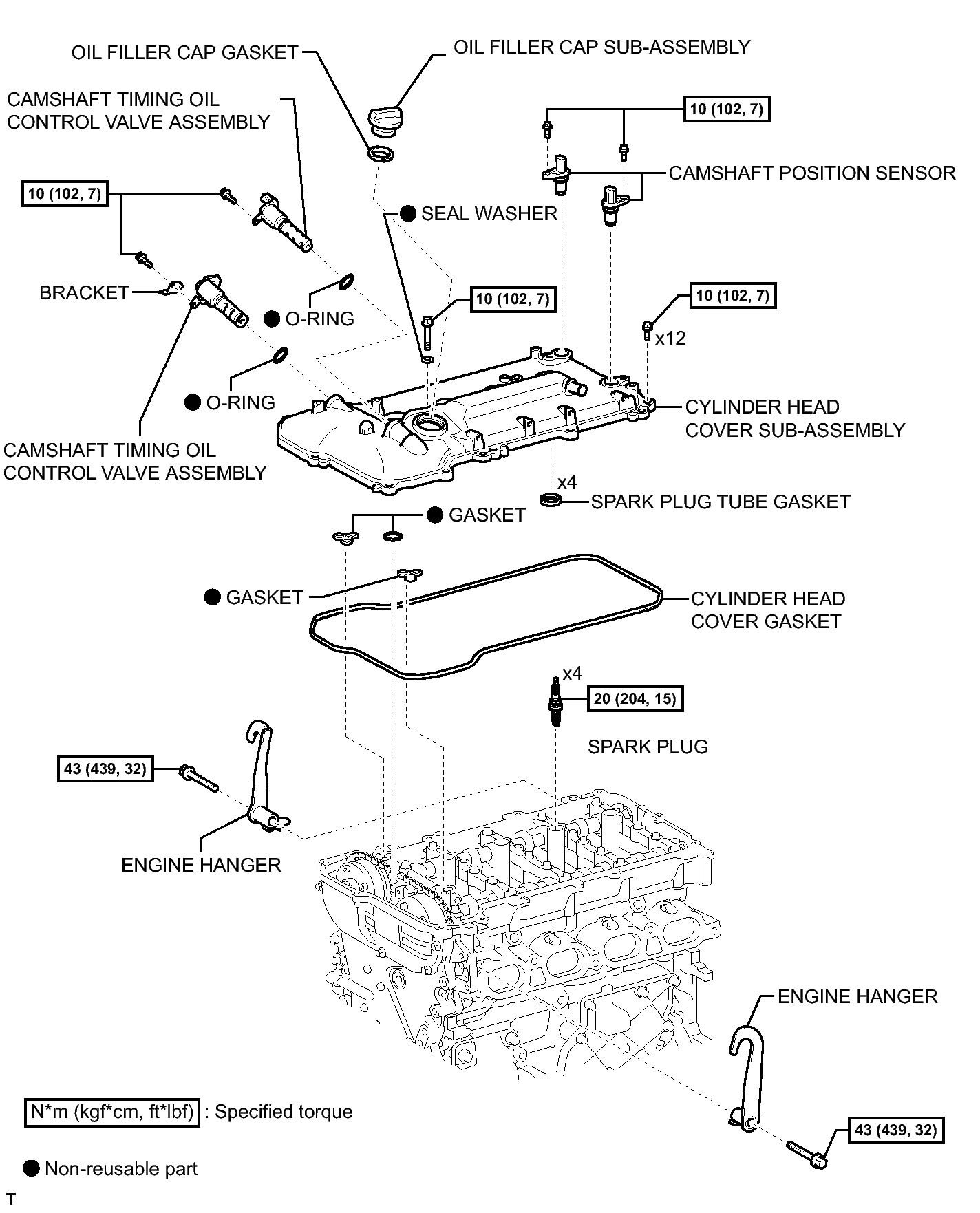

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications(5 Of 9)
GTY160908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

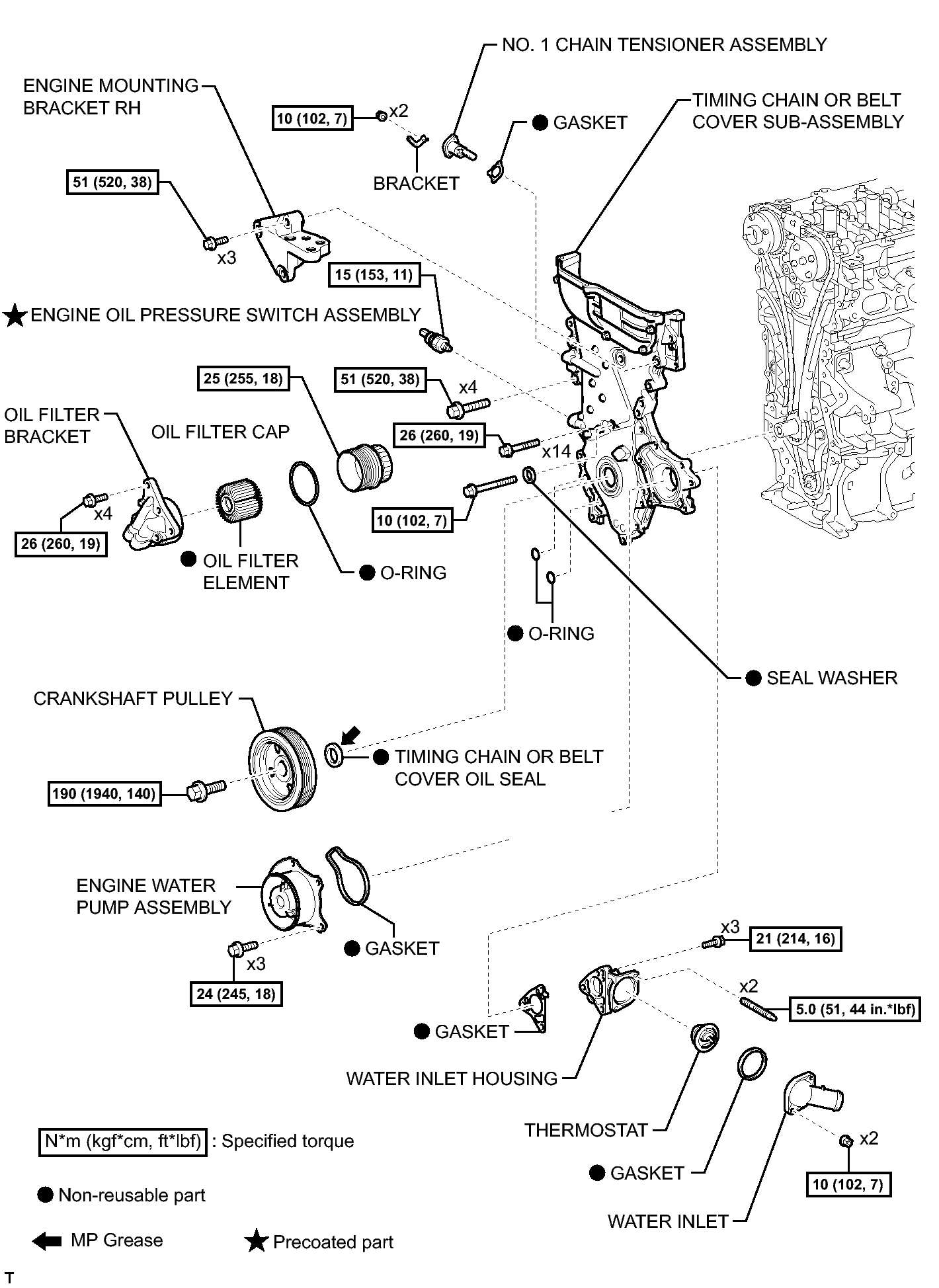

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (6 of 9)
GTY311989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

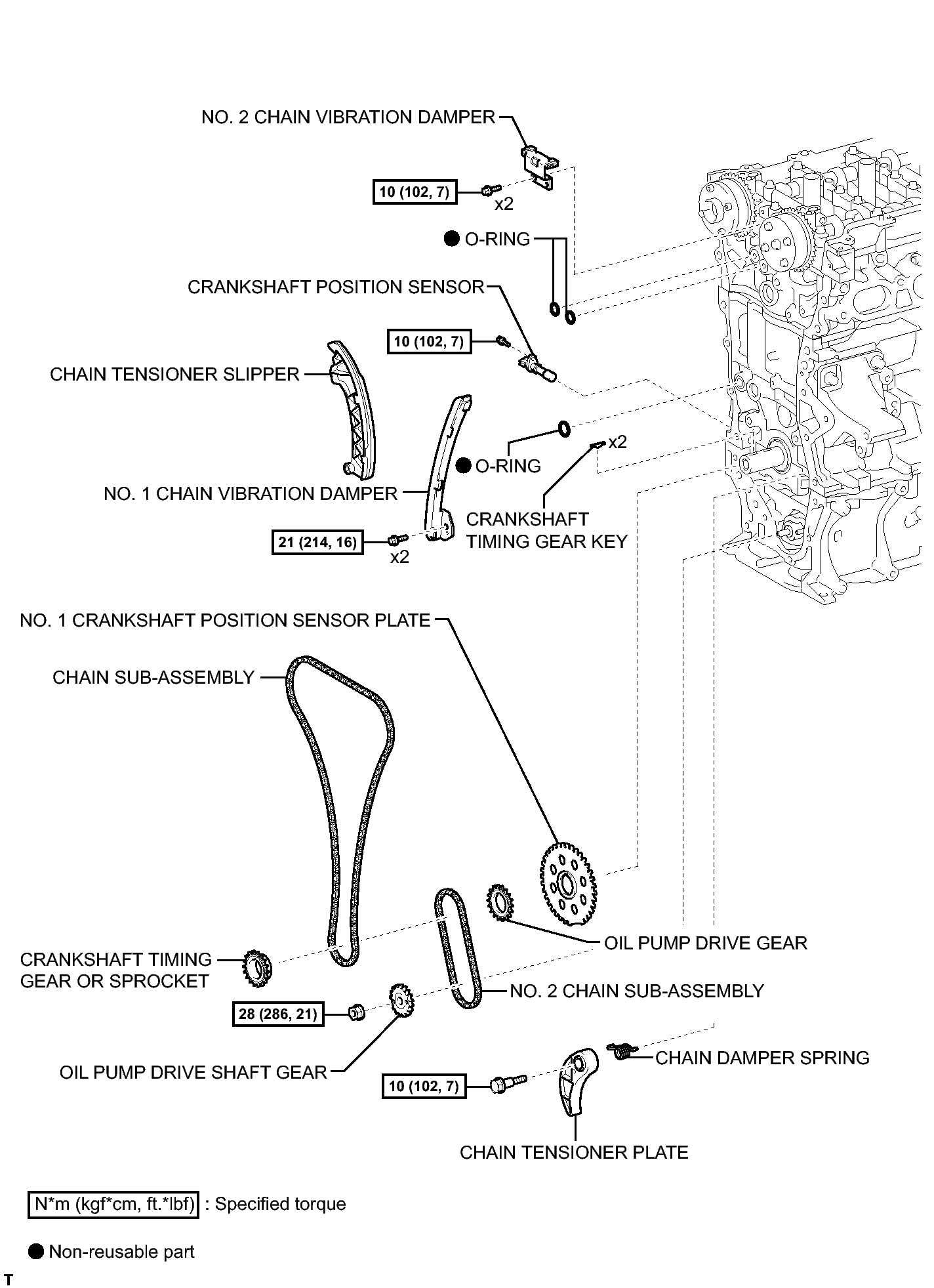

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications(7 Of 9)
GTY161331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

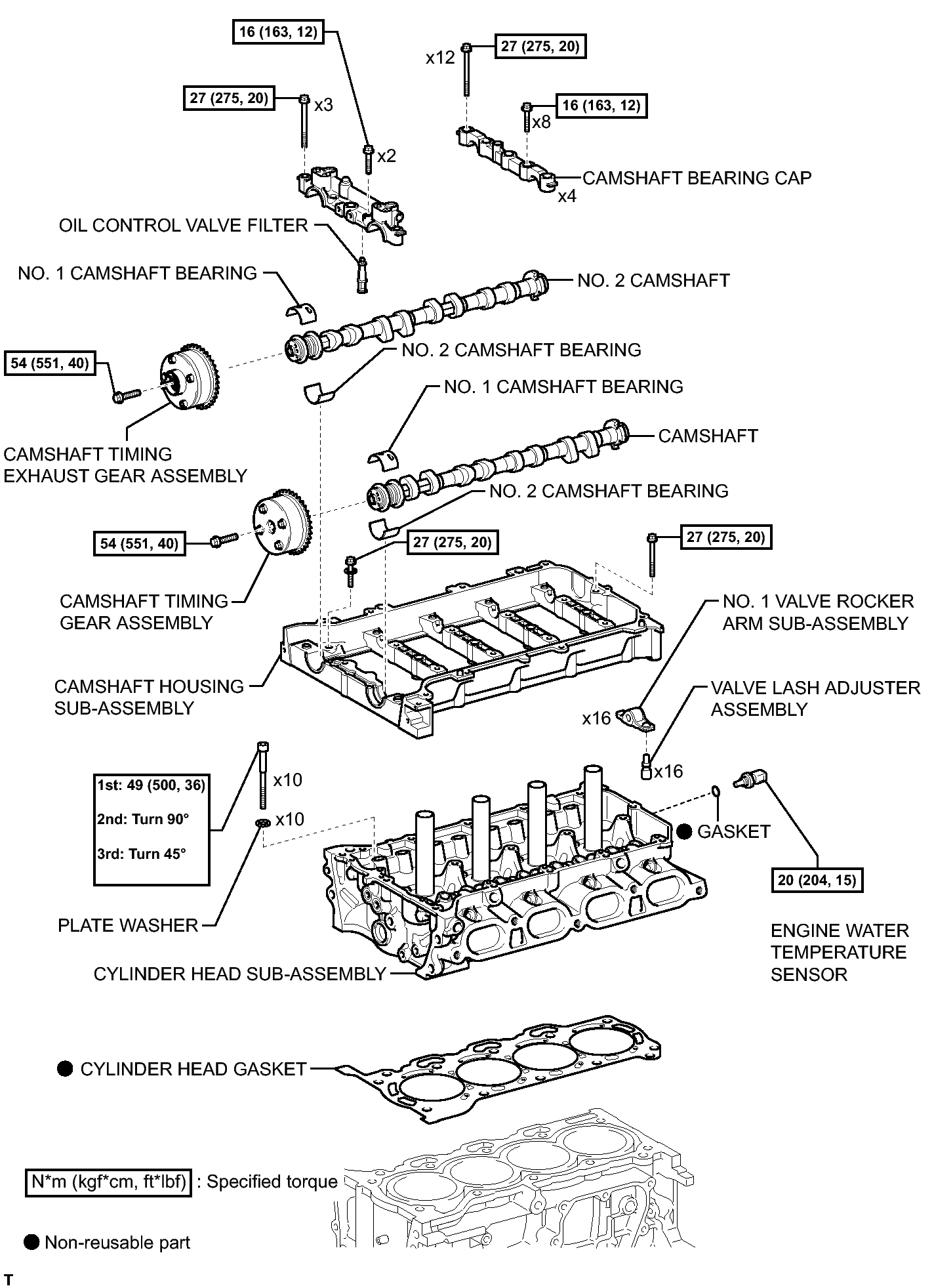

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications(8 Of 9)
GTY161306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

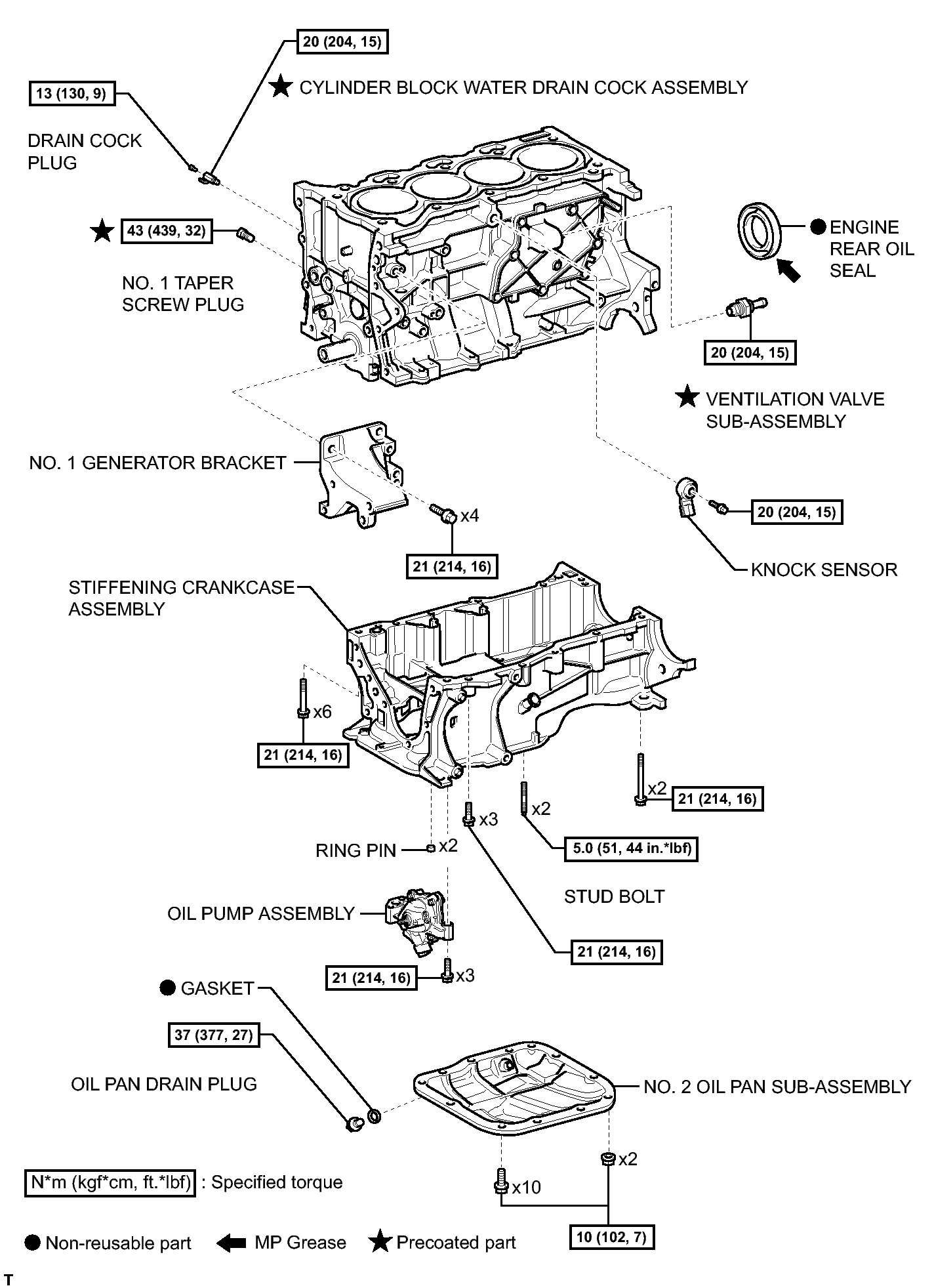

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications(9 Of 9)
GTY161332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
