Inspection





2AZ-FE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER: INSPECTION

1. INSPECT MASS AIR FLOW METER

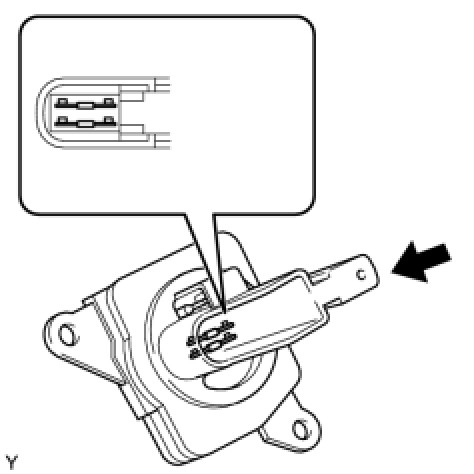

(a) Using a work light, check that the platinum filament (heater portion) in the mass air flow meter has no foreign matter attached.

OK:

No foreign matter attached.
