Engine Intake System (Inspection)
>>
Intake System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

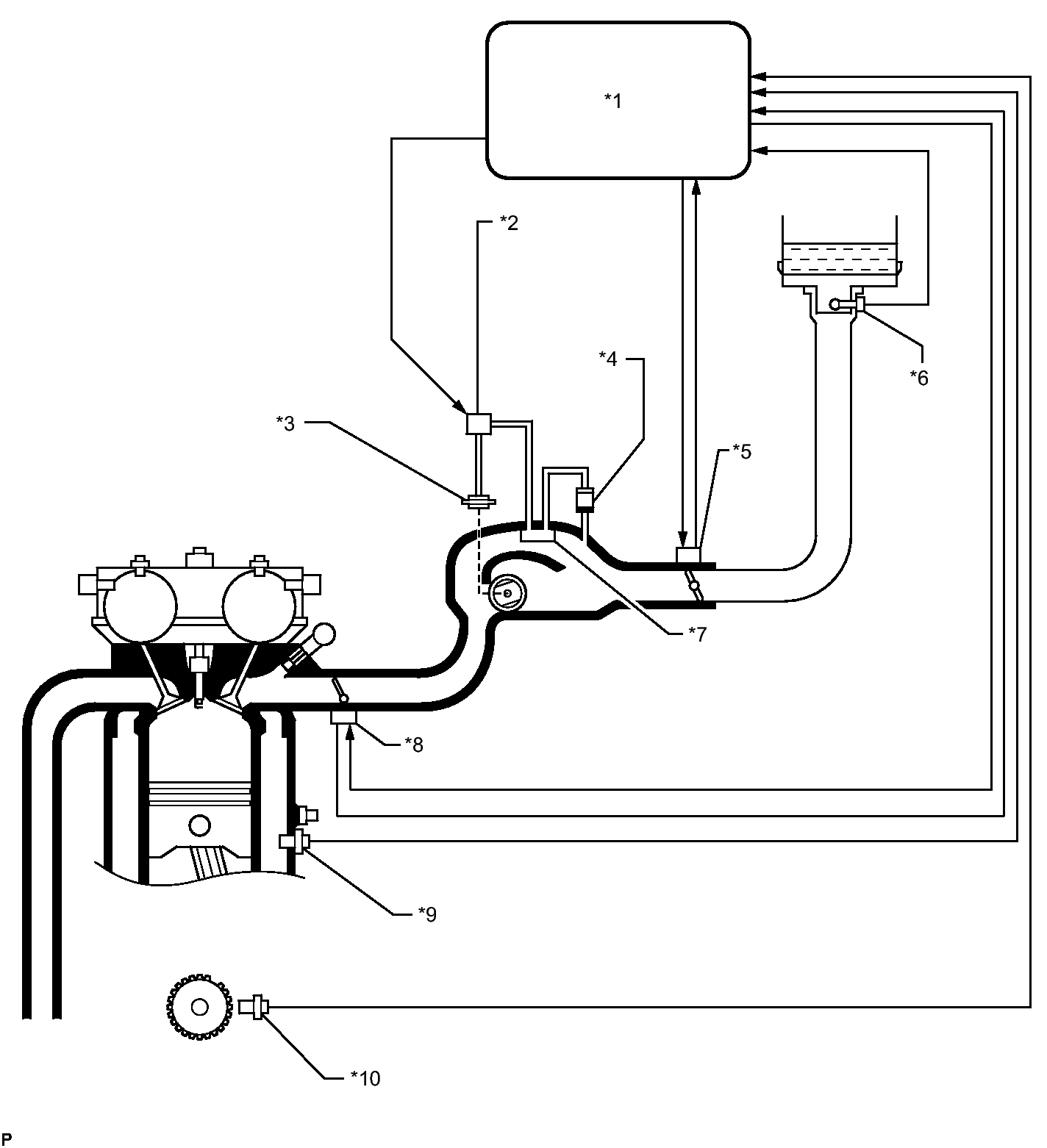

Fig 1: Intake System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION
*1
ECM
*2
Vacuum Switching Valve (for ACIS)
*3
Intake Air Control Valve Actuator (for ACIS)
*4
Check Valve
*5
Throttle Body
*6
Mass Air Flow Meter
*7
Vacuum Tank
*8
Intake Air Control Valve Actuator (for TCV)
*9
Engine Coolant Temperature Sensor
*10
Crankshaft Position Sensor

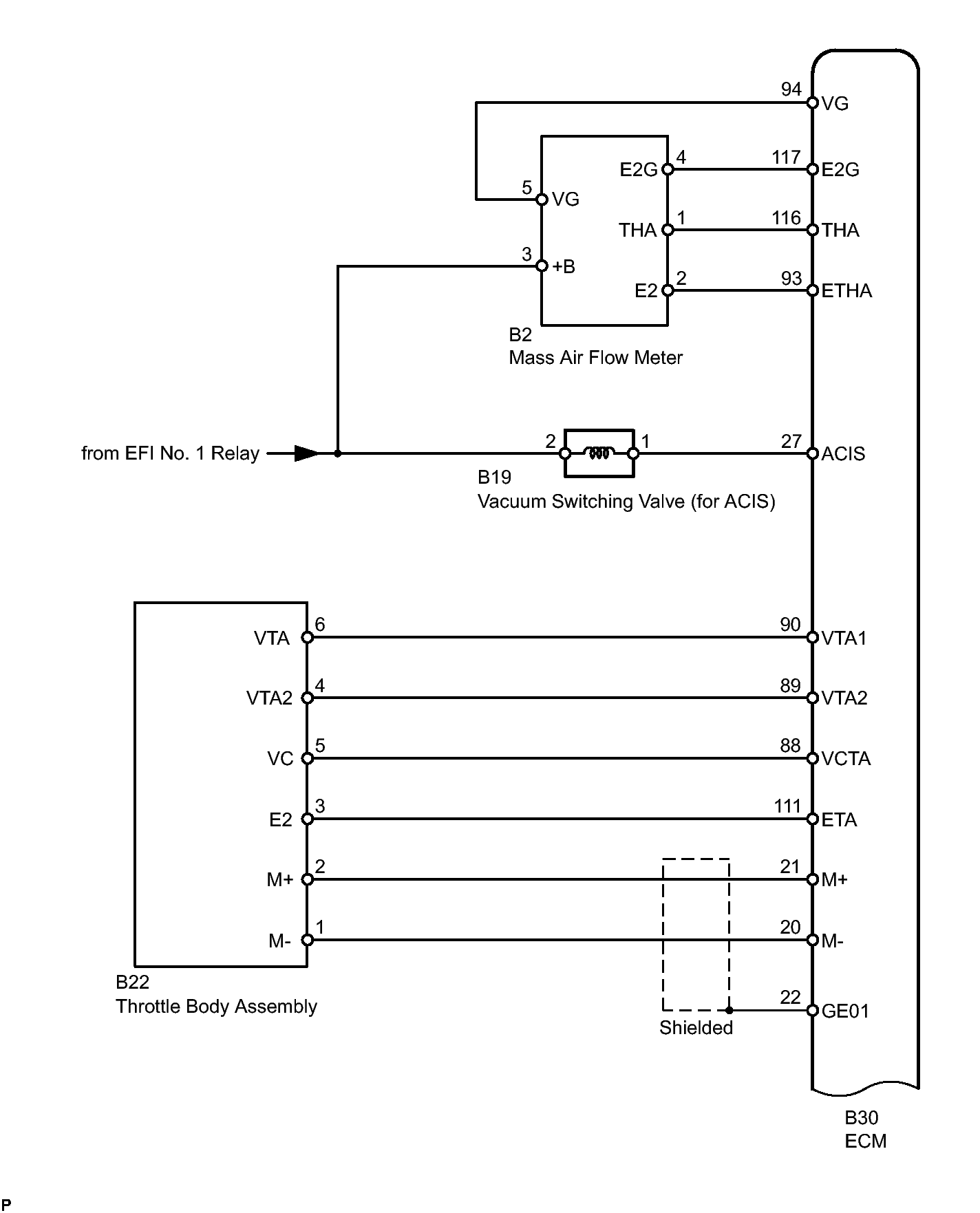

Fig 2: Intake System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

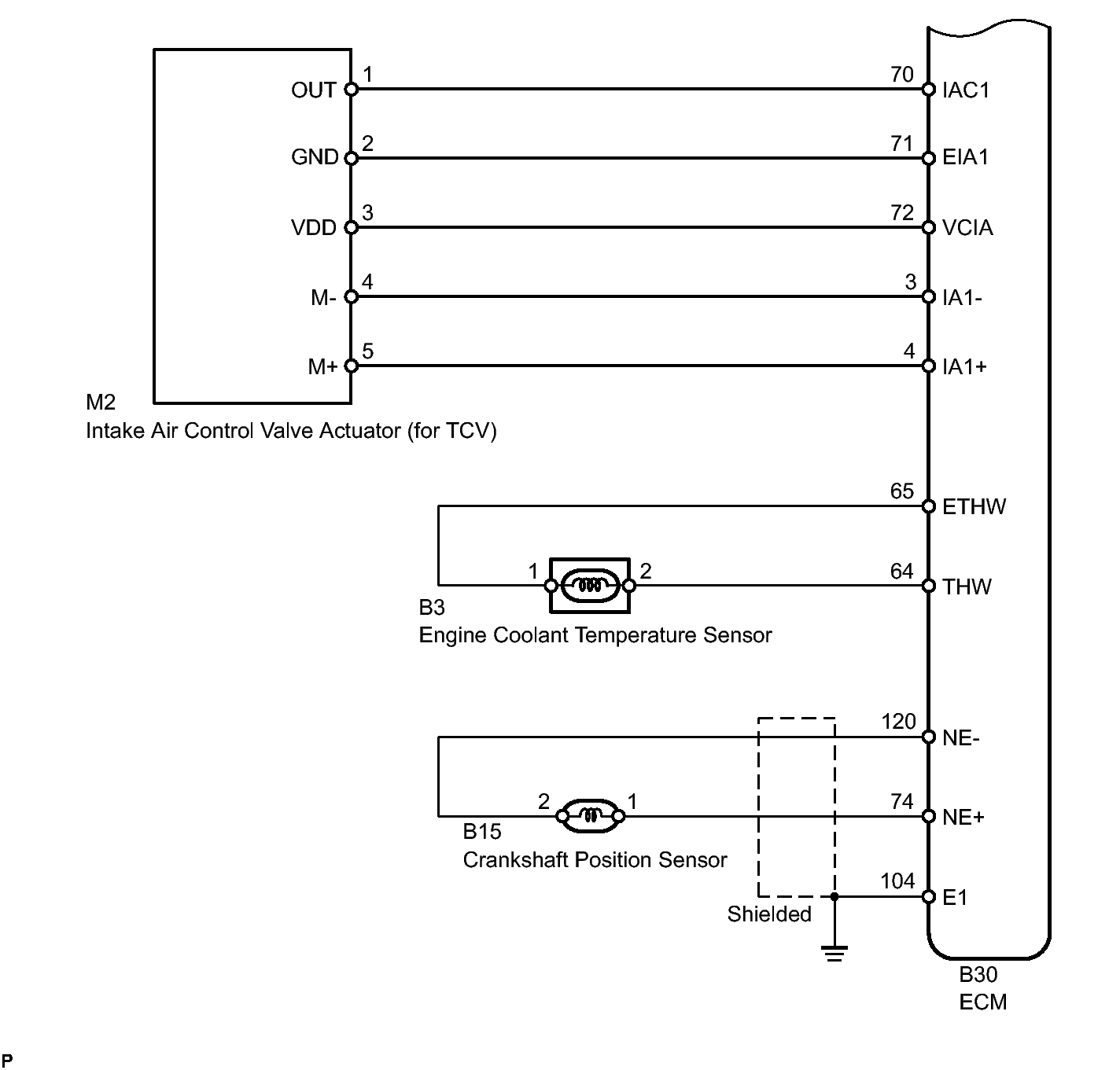

Fig 3: Intake System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
