Fail-Safe Chart

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: FAIL-SAFE CHART

1. Fail-safe

This function minimizes the loss of operation when any abnormality occurs in a sensor or solenoid.

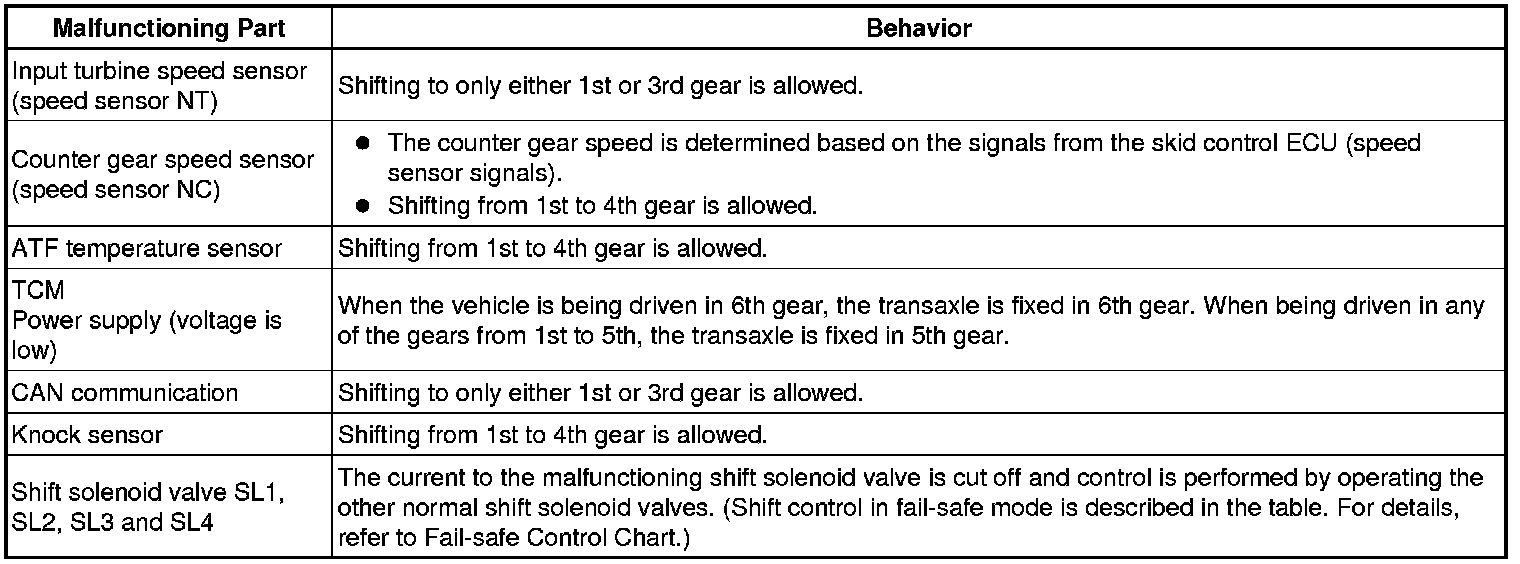

Fail-safe Control List

Shift Solenoid Valve Operation when Normal

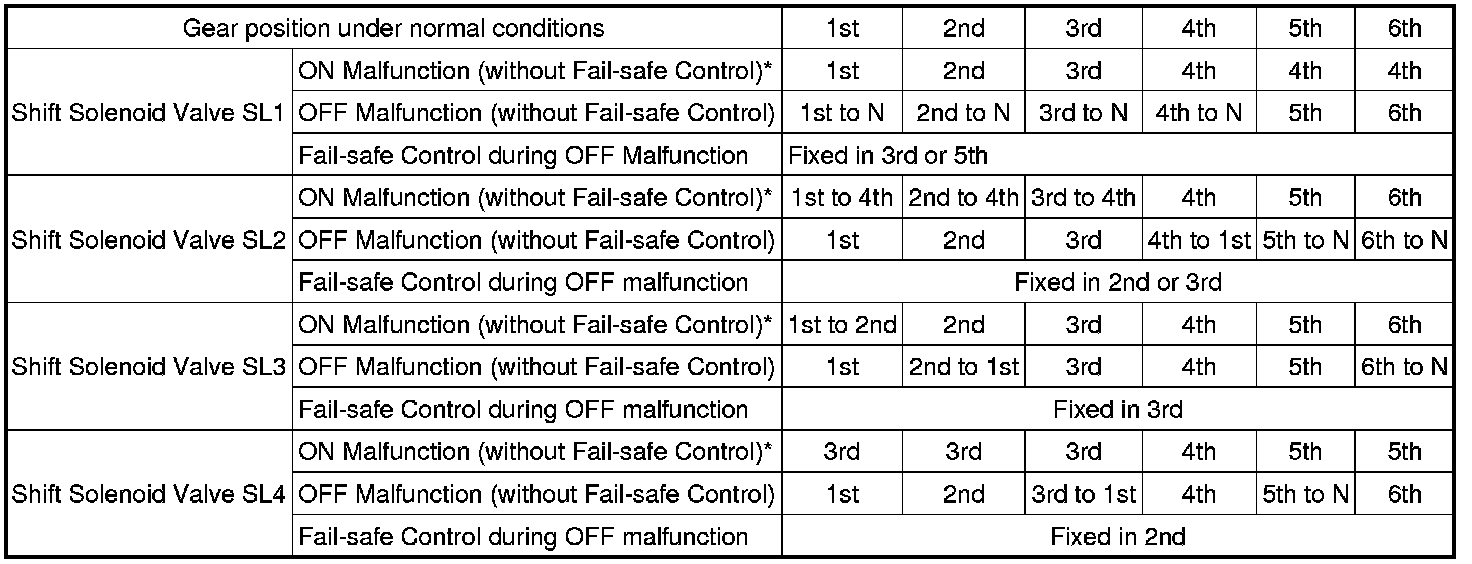

Fail-safe Control Chart

HINT
*: Fail-safe control is not activated when an ON malfunction occurs.
