System Diagram

NETWORKING: CAN COMMUNICATION SYSTEM: SYSTEM DIAGRAM

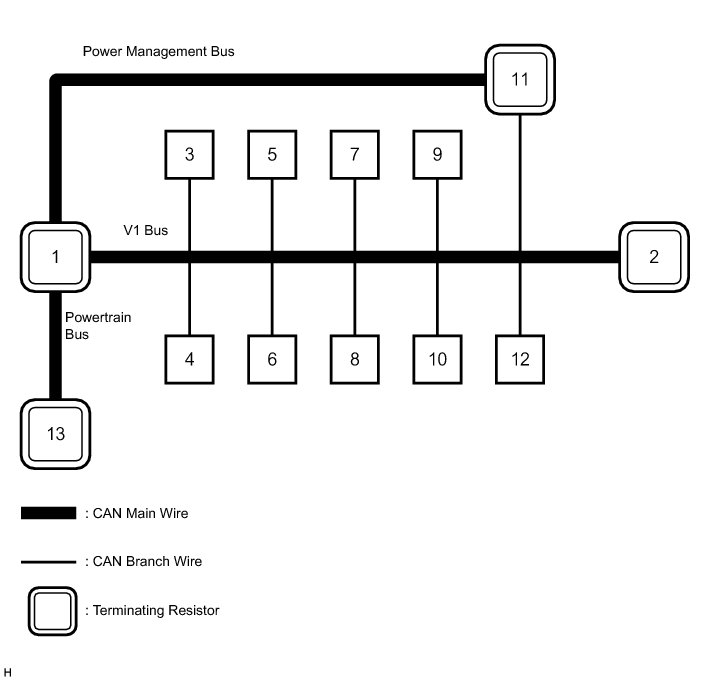

1. SYSTEM DIAGRAM









* *1: W/ Smart Key System

* *2: for Automatic Transaxle

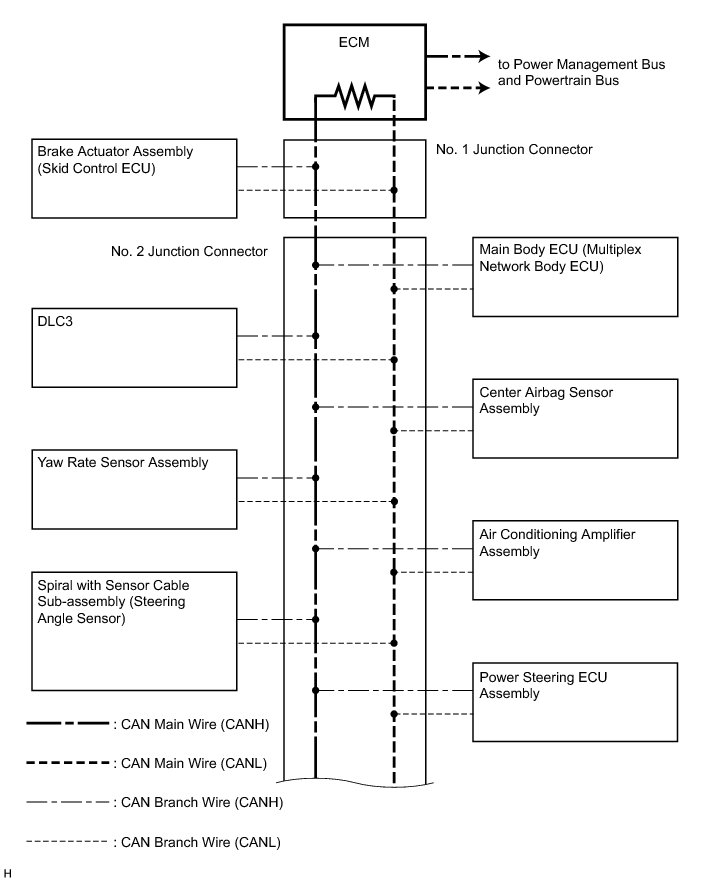

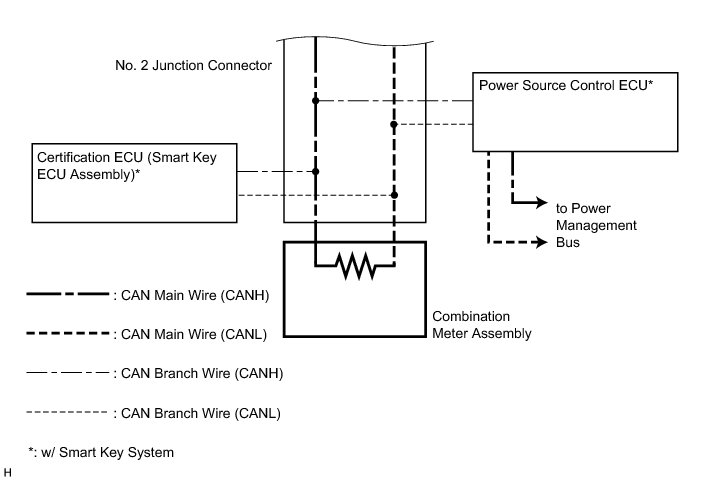

2. V1 BUS

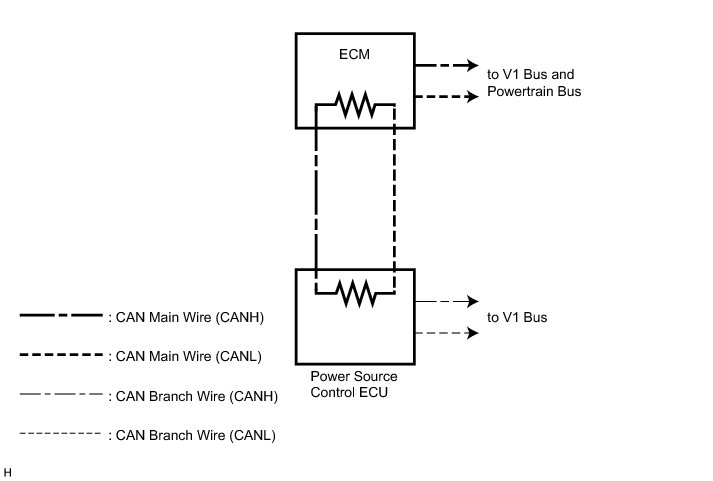

3. POWER MANAGEMENT BUS (W/ Smart Key System)

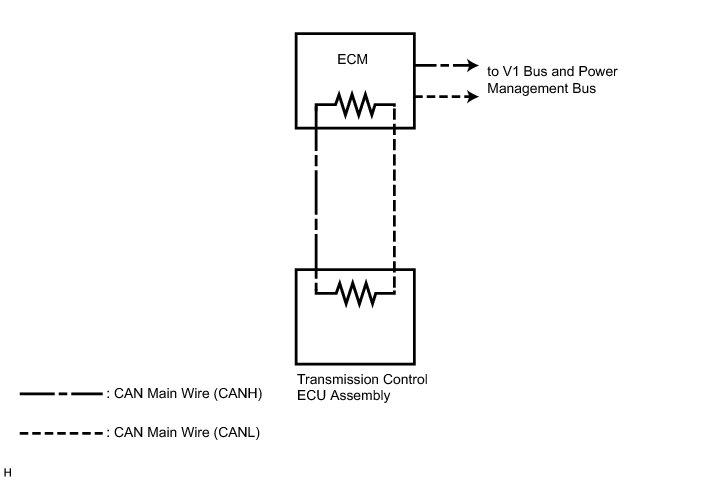

4. POWERTRAIN BUS (for Automatic Transaxle)
