Transmission Control Systems: Locations

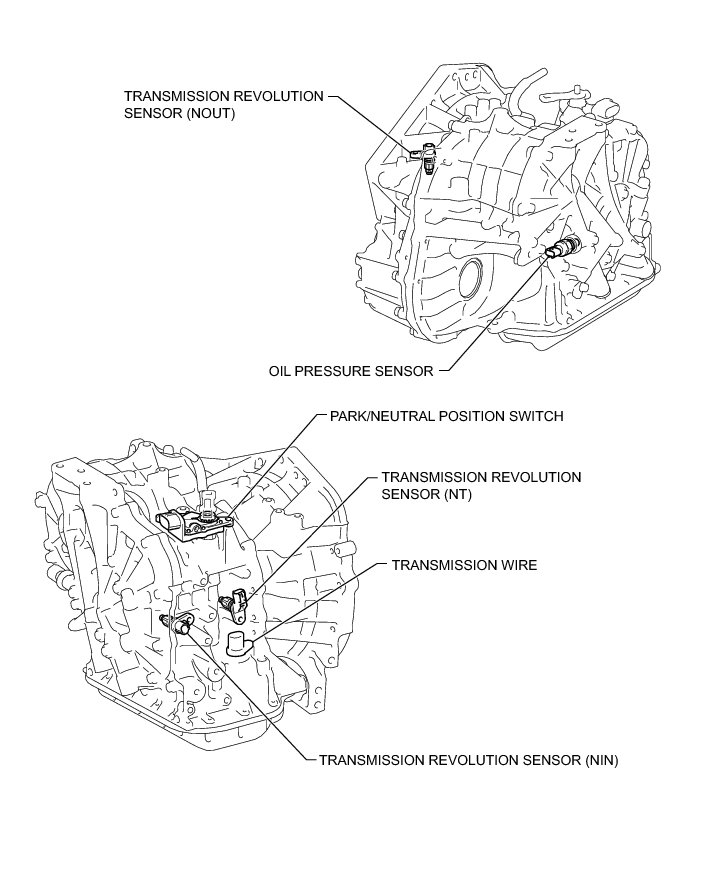

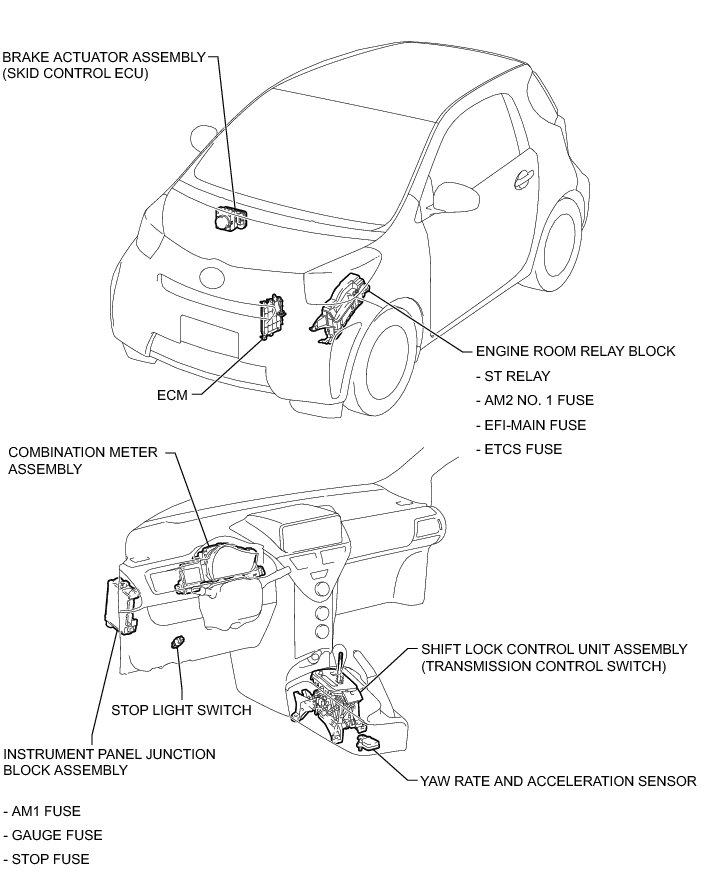

K41B CVT: CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM: PARTS LOCATION
