Engine Immobiliser System: Notes

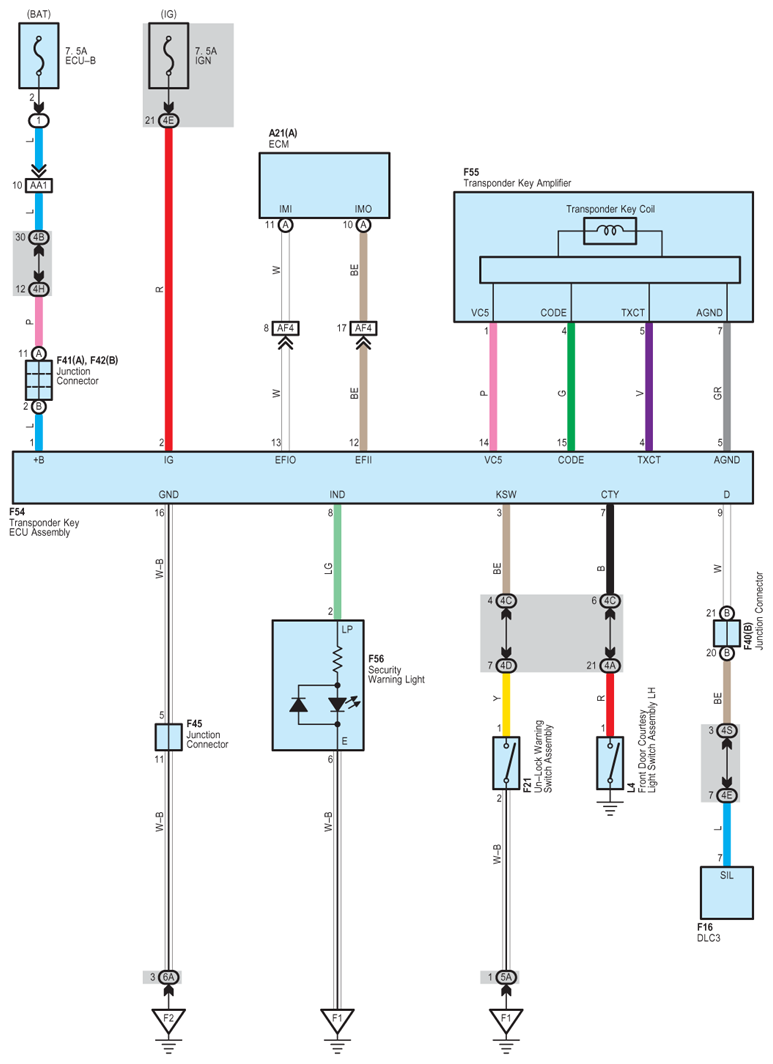

Fig 1: Engine Immobiliser System - Circuit Diagram
G07596098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
