Torque Specifications





SPECIFICATIONS: U760E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

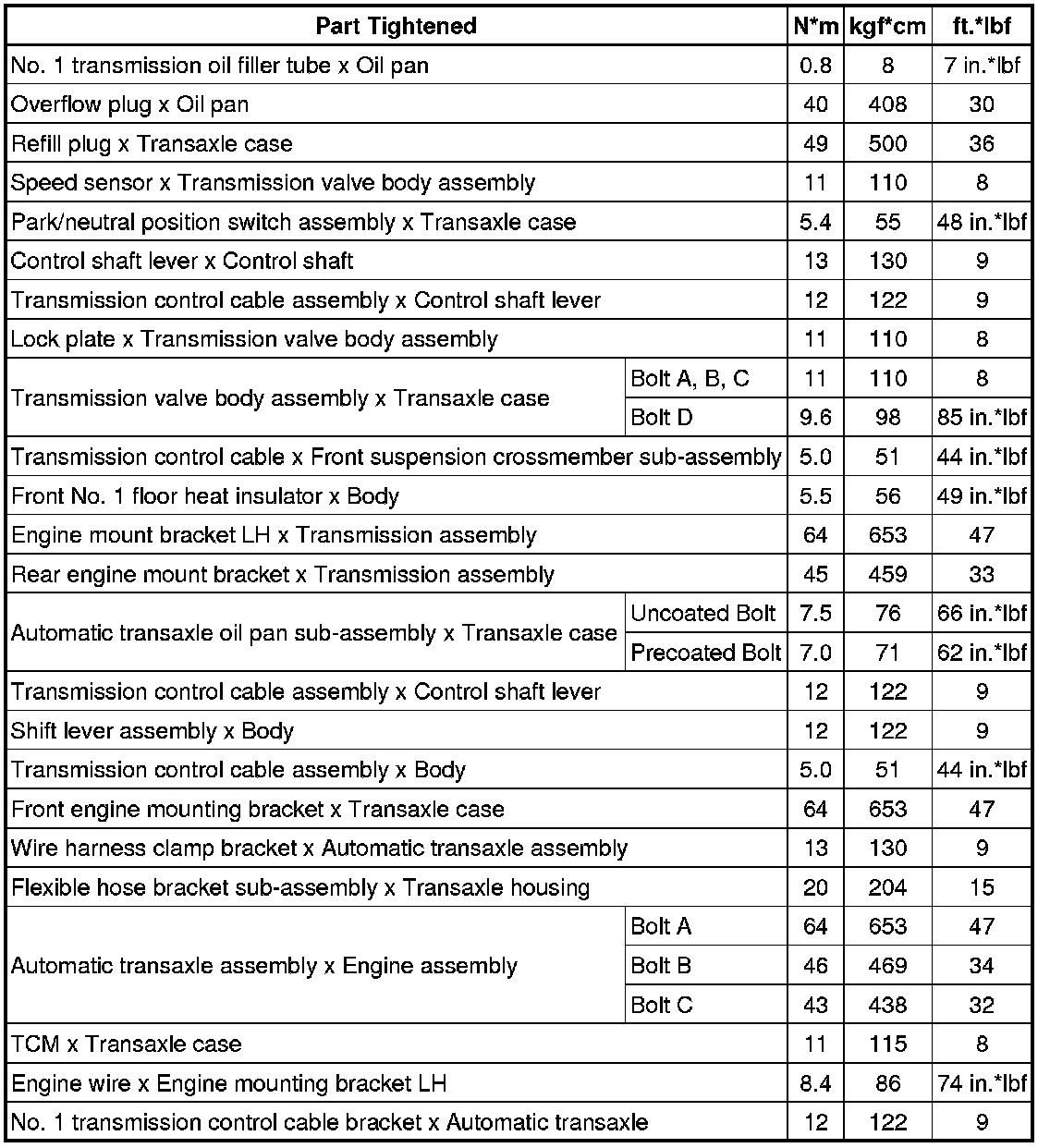

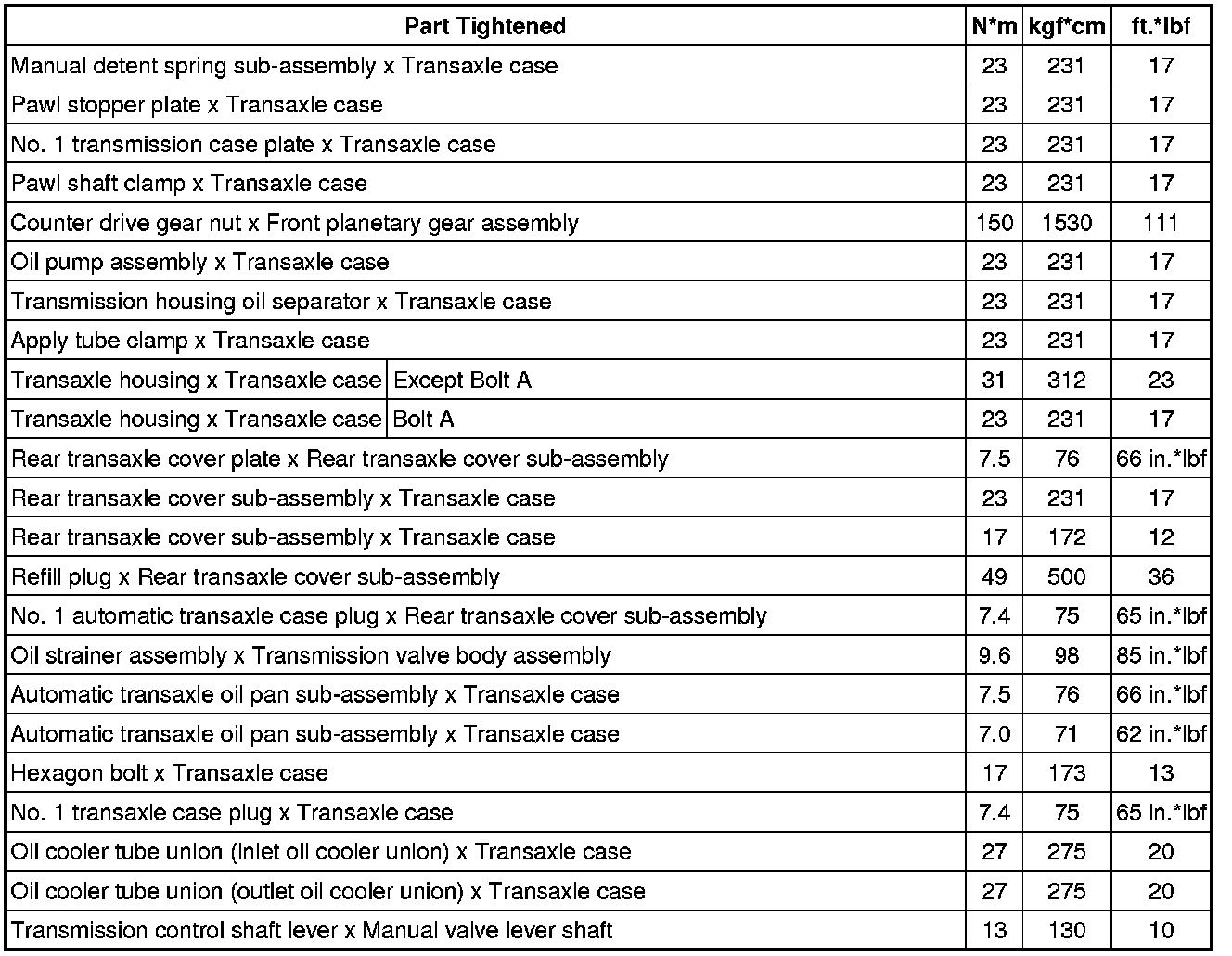

Automatic Transaxle Unit





Oil Pump





Shift Solenoid Valve





Differential Case





Oil Cooler
