CRUISE CONTROL: CLUTCH SWITCH: INSTALLATION

1. INSTALL CLUTCH SWITCH ASSEMBLY

(a) Fully loosen the lock nut of the clutch switch assembly.

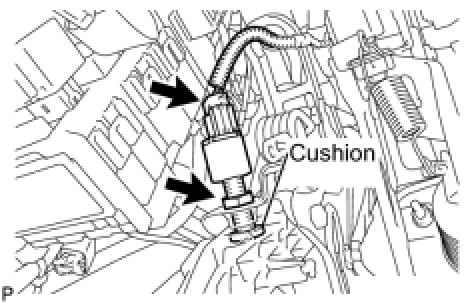

(b) Adjust the clutch switch until the threaded portion comes into contact with the cushion. Tighten the lock nut and ensure that the threaded portion is in contact with the cushion.

Torque : 16 Nm (160 kgf-cm, 12 ft-lbf)

(c) Connect the connector.

2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
