Installation





DOOR LOCK: DOOR CONTROL TRANSMITTER: INSTALLATION

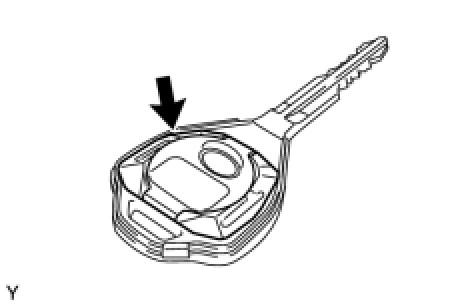

1. INSTALL DOOR CONTROL TRANSMITTER MODULE

(a) Install the door control transmitter module.

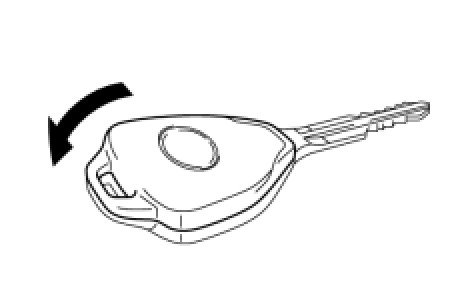

2. INSTALL TRANSMITTER HOUSING COVER

(a) Install the transmitter housing cover onto the transmitter housing case securely.
