Camshaft Position Sensor: Testing and Inspection

2AZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: INSPECTION

INSPECTION





1. INSPECT CAMSHAFT POSITION SENSOR

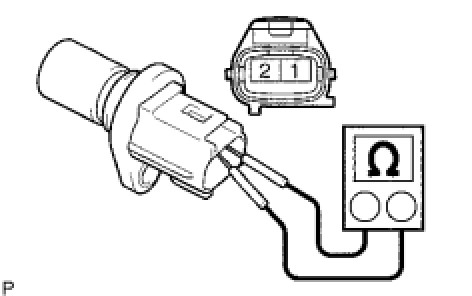

(a) Measure the resistance.
Standard resistance:





HINT: In the table above, the terms Cold and Hot refer to the temperature of the coils. Cold means approximately -10 to 50 °C (14 to 122 °F). Hot means approximately 50 to 100 °C (122 to 212 °F).
If the resistance is not as specified, replace the camshaft position sensor.
