VC Output Circuit: Wiring Diagram

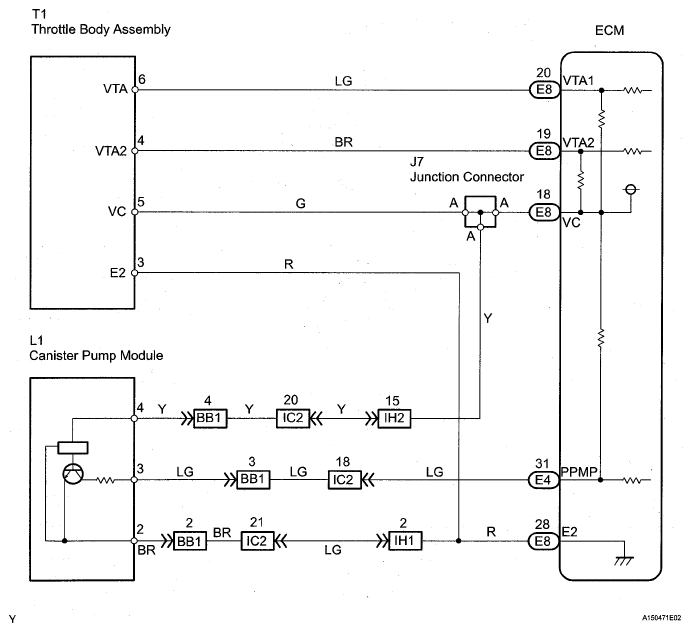

Fig 1: VC Output Circuit - Wiring Diagram
G05539161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
