Fuel Pump Control Circuit: Wiring Diagram

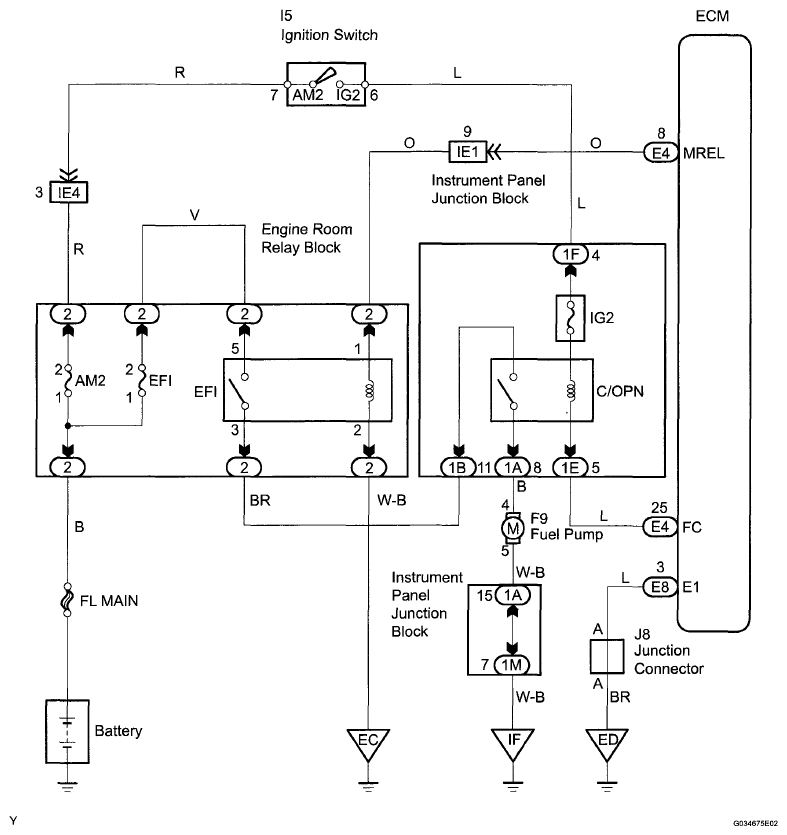

Fig 1: Fuel Pump Control - Wiring Diagram
G06276462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
