Torque Specifications








SERVICE SPECIFICATIONS: U341E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

SPEED SENSOR





PARK / NEUTRAL POSITION SWITCH





TRANSMISSION WIRE





VALVE BODY ASSEMBLY





SHIFT LEVER





TRANSMISSION CONTROL CABLE ASSEMBLY





DIFFERENTIAL OIL SEAL

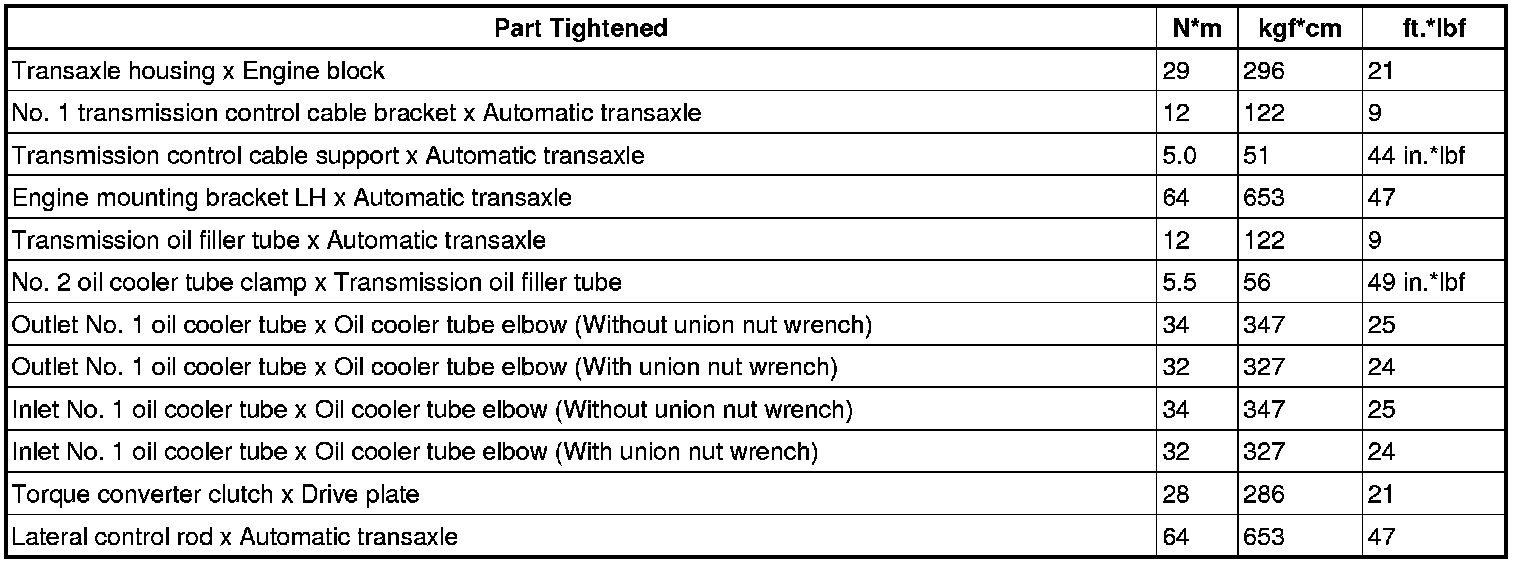

AUTOMATIC TRANSAXLE ASSEMBLY





AUTOMATIC TRANSAXLE UNIT





TRANSAXLE REAR COVER





VALVE BODY ASSEMBLY





DIFFERENTIAL CASE
