Installation








2ZR-FE ENGINE CONTROL SYSTEM: IGNITION RELAY NO. 1: INSTALLATION

INSTALLATION

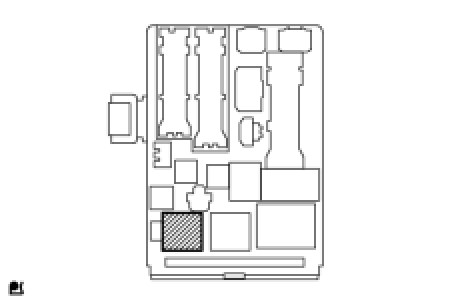

1. INSTALL NO. 1 IGNITION RELAY
(a) Install the No. 1 ignition relay.
2. INSTALL INSTRUMENT PANEL BOX
