Oil Pump: Components

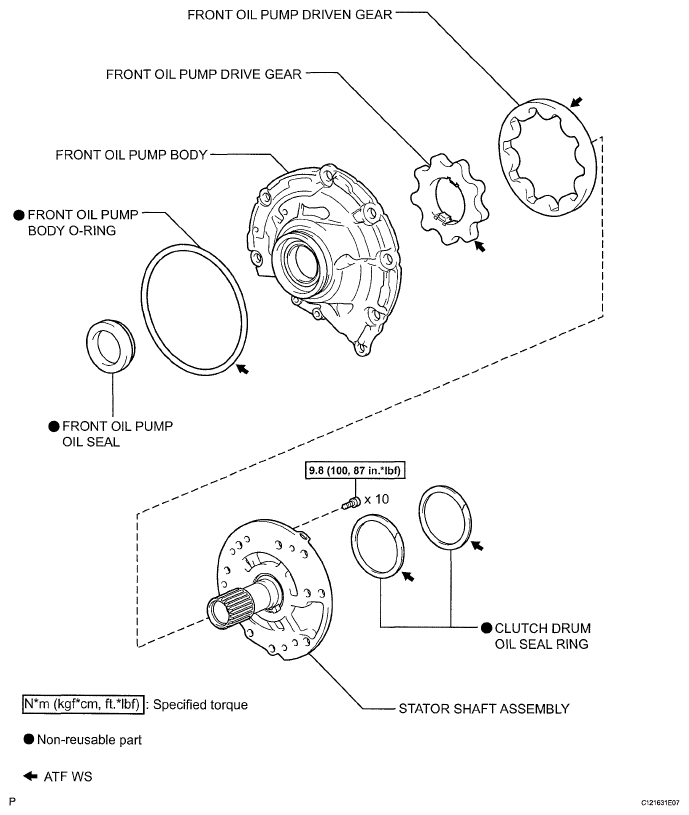

Fig 1: Oil Pump Replacement Components With Torque Specifications
G05400289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
