Fuse Block

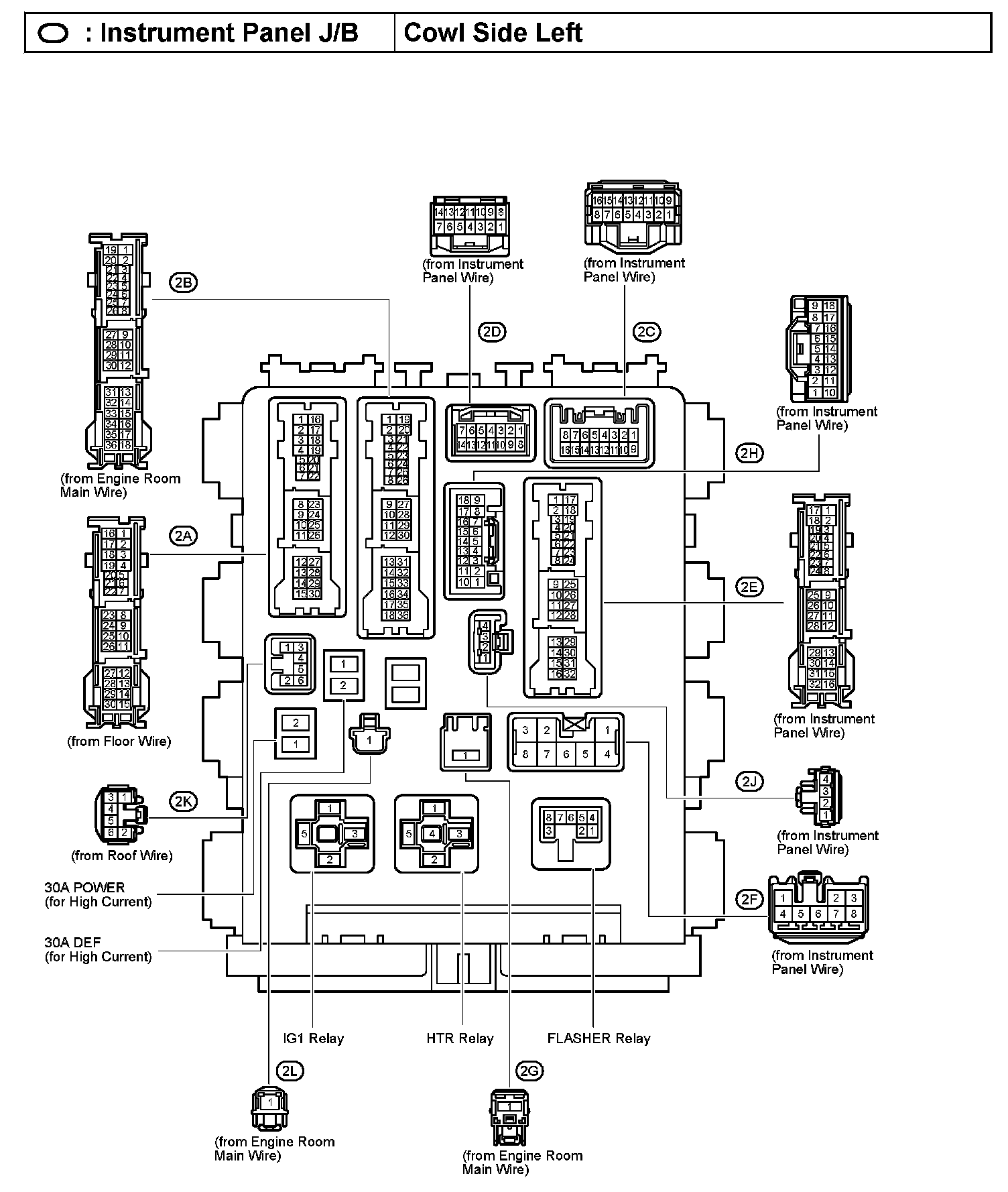

Instrument Panel J/B - Cowl Side Left:



Instrument Panel J/B - Cowl Side Left:

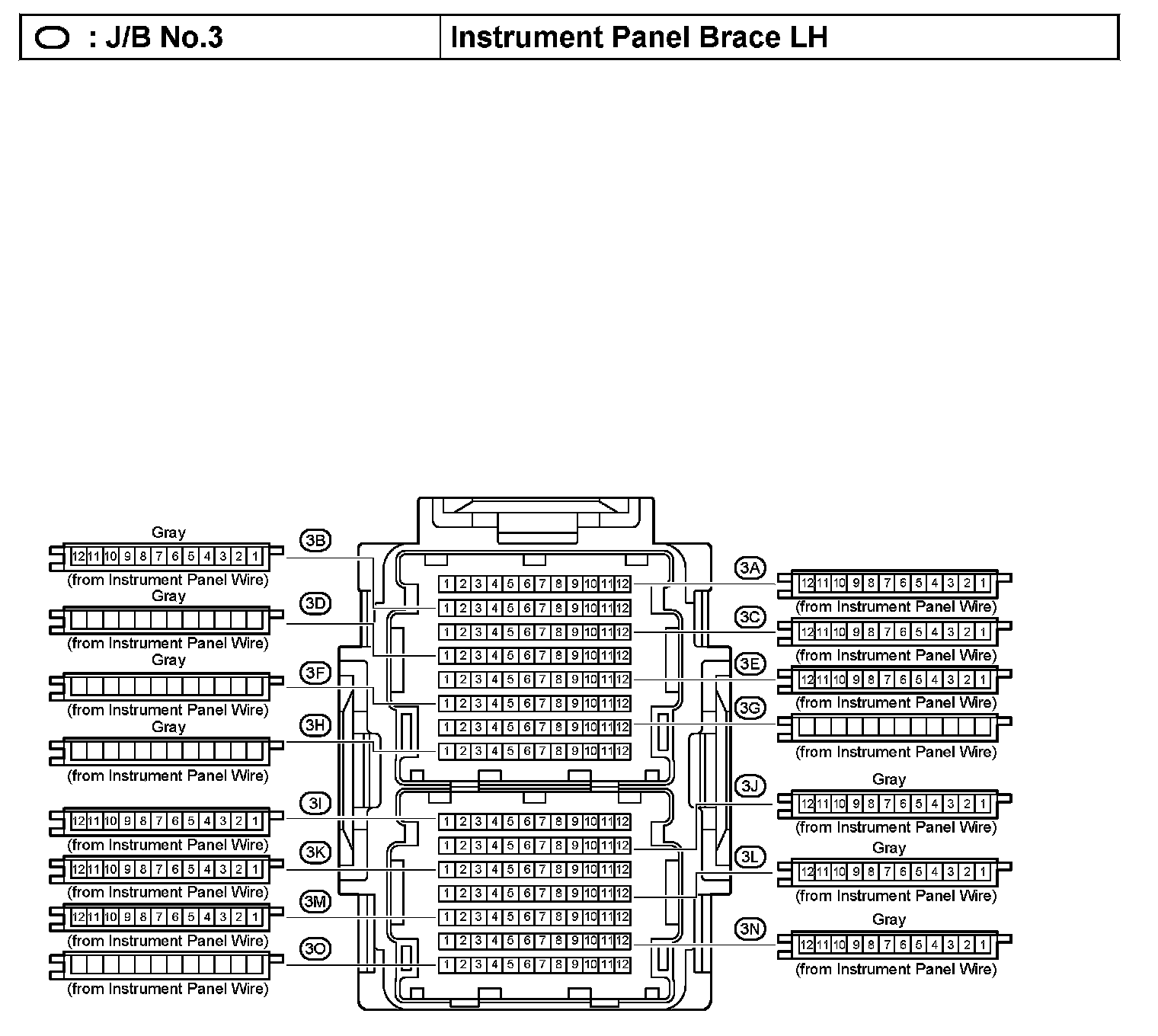

J/B No.3 - Instrument Panel Brace LH:



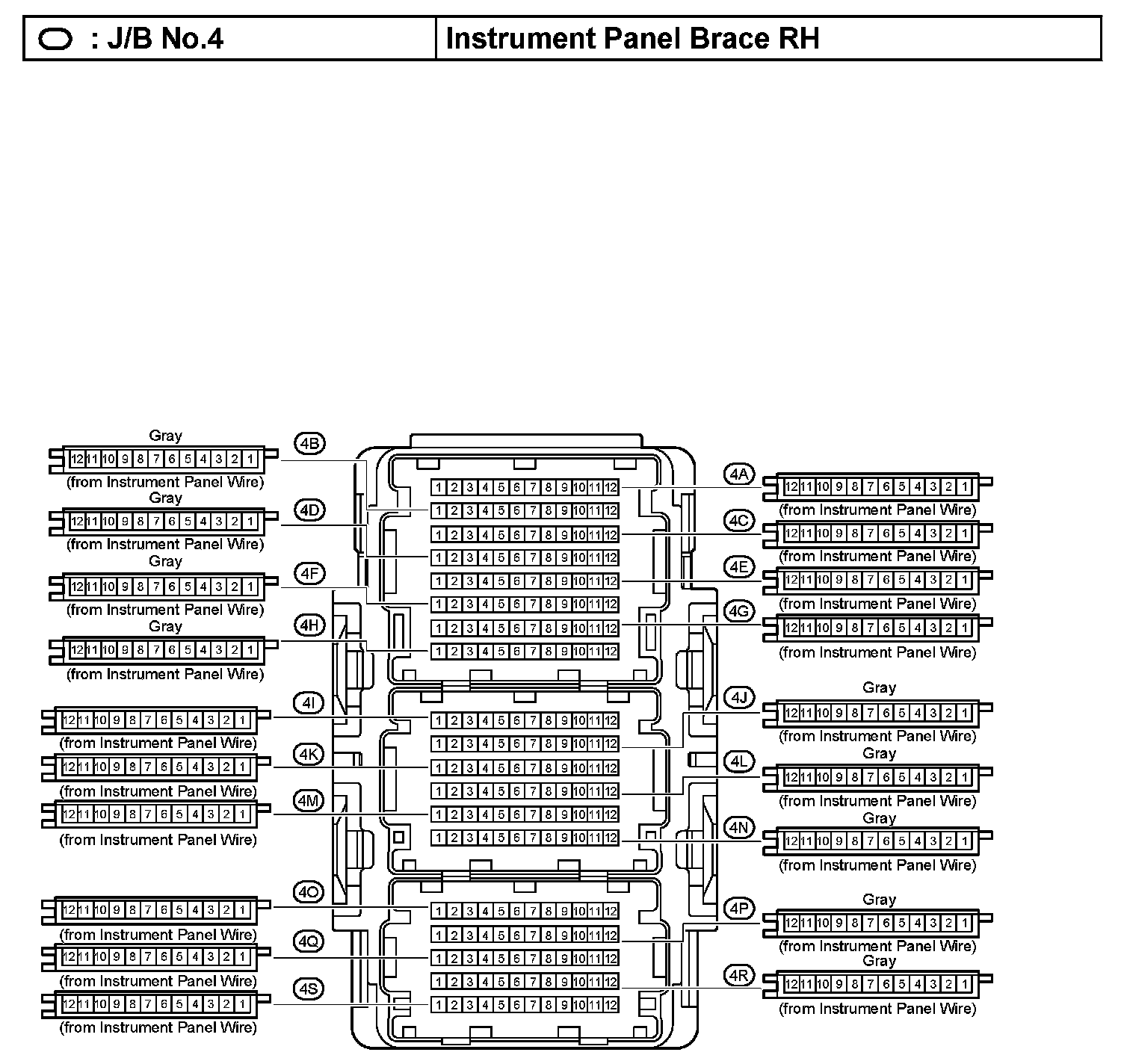

J/B No.4 - Instrument Panel Brace LH:

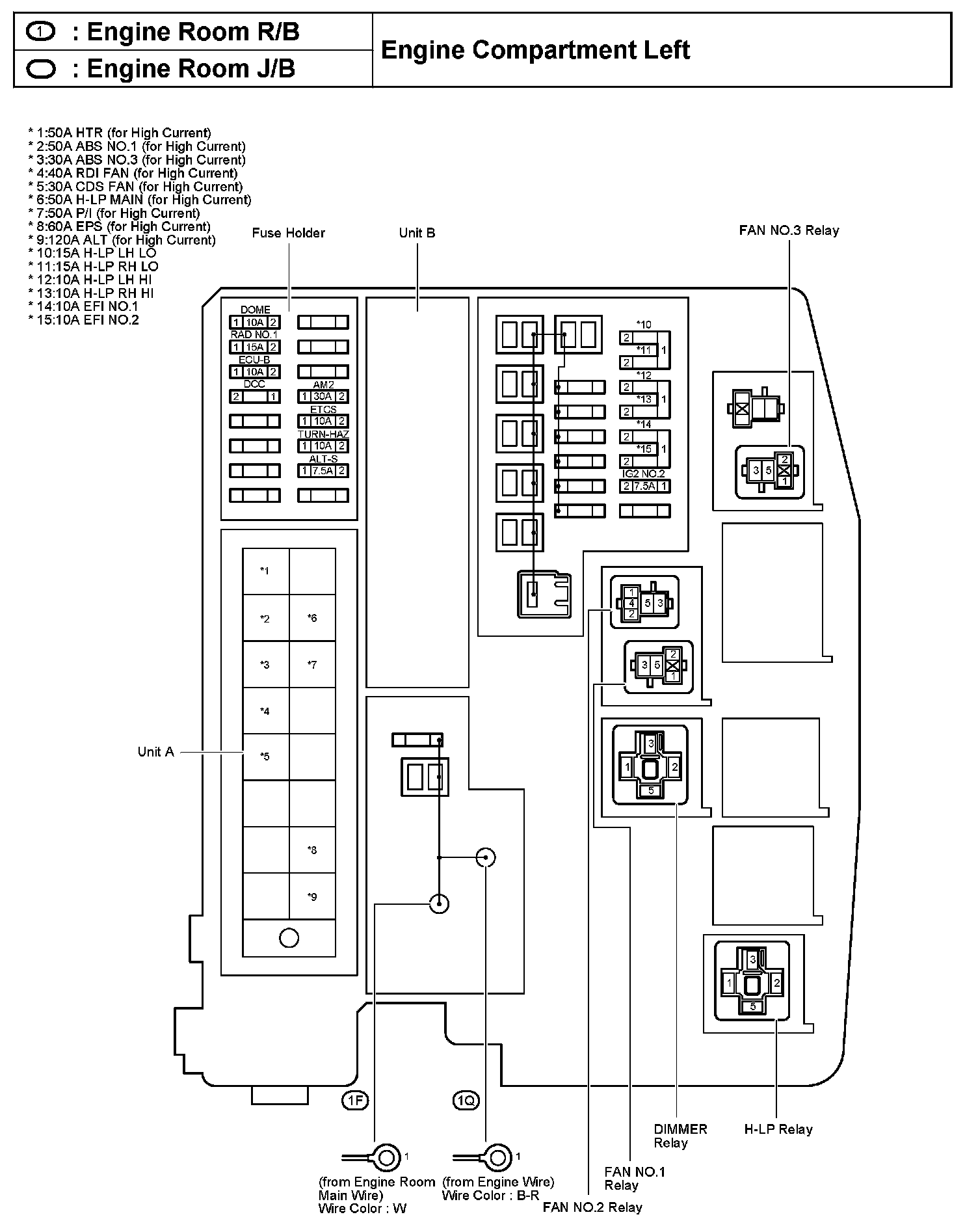

Engine Room R/B,J/B - Engine Compartment Left:

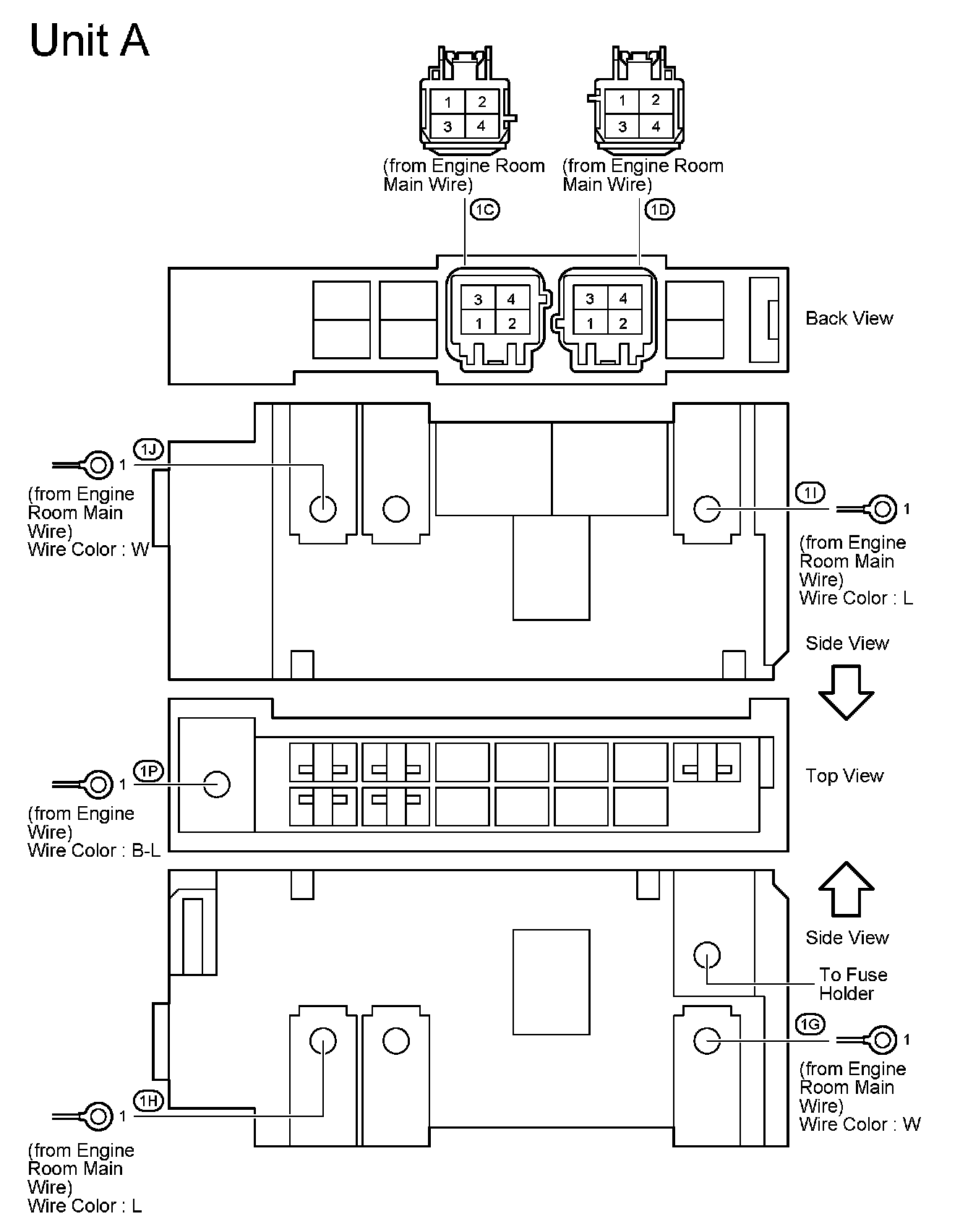

Engine Room R/B,J/B - Engine Compartment Left:

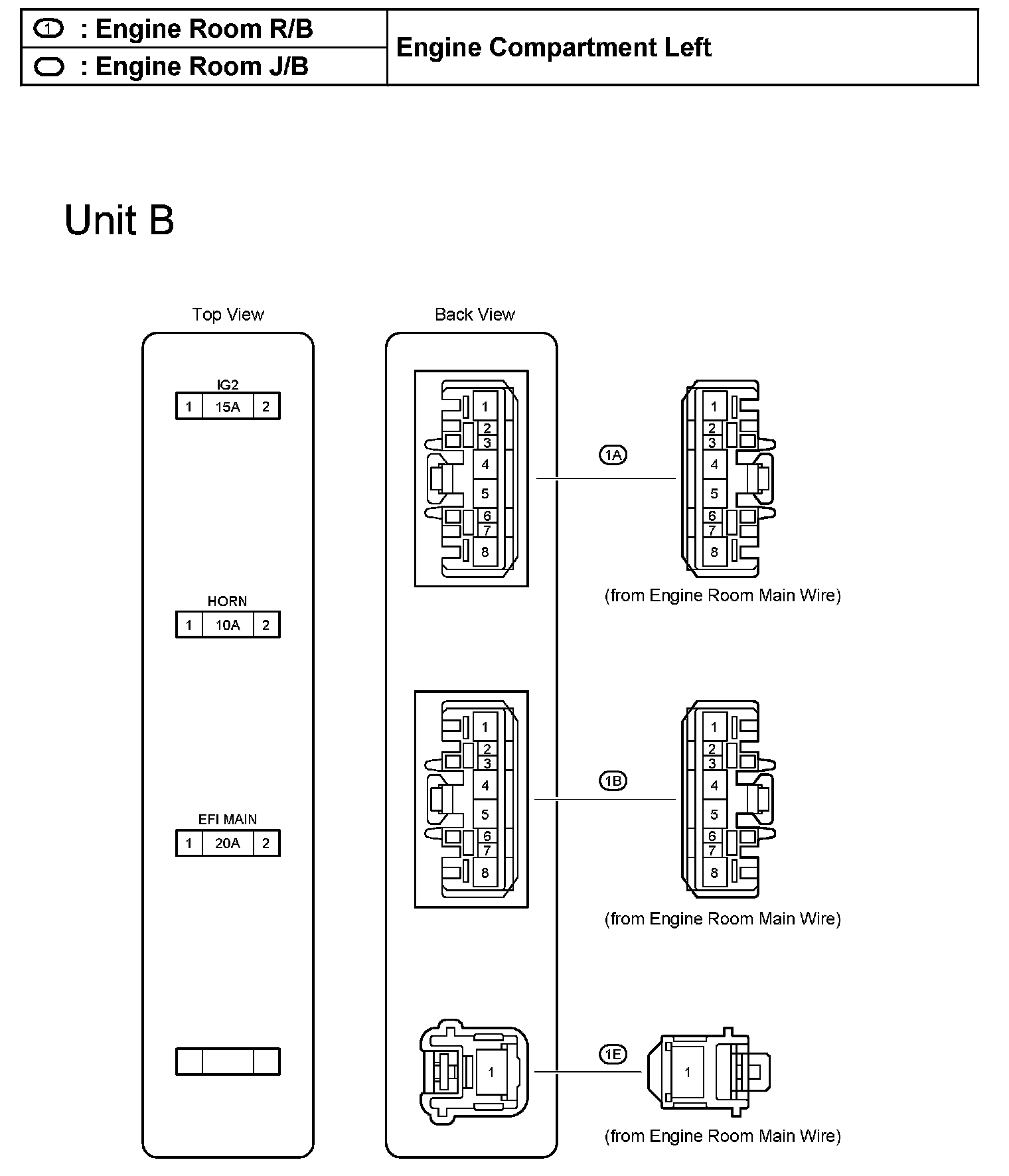

Engine Room R/B,J/B - Engine Compartment Left:
