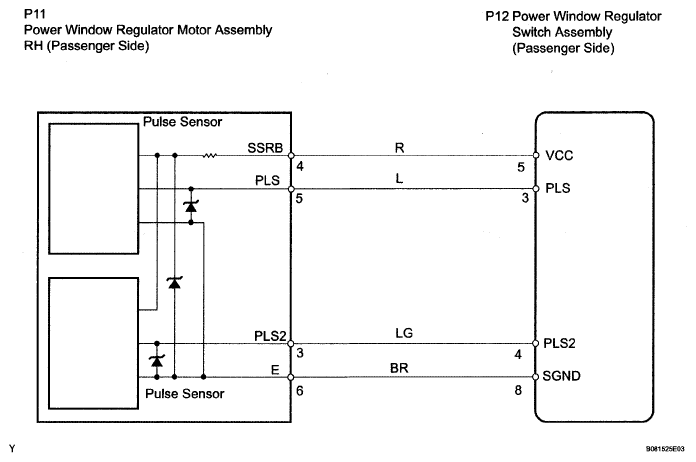

Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
