Valve Body: Components

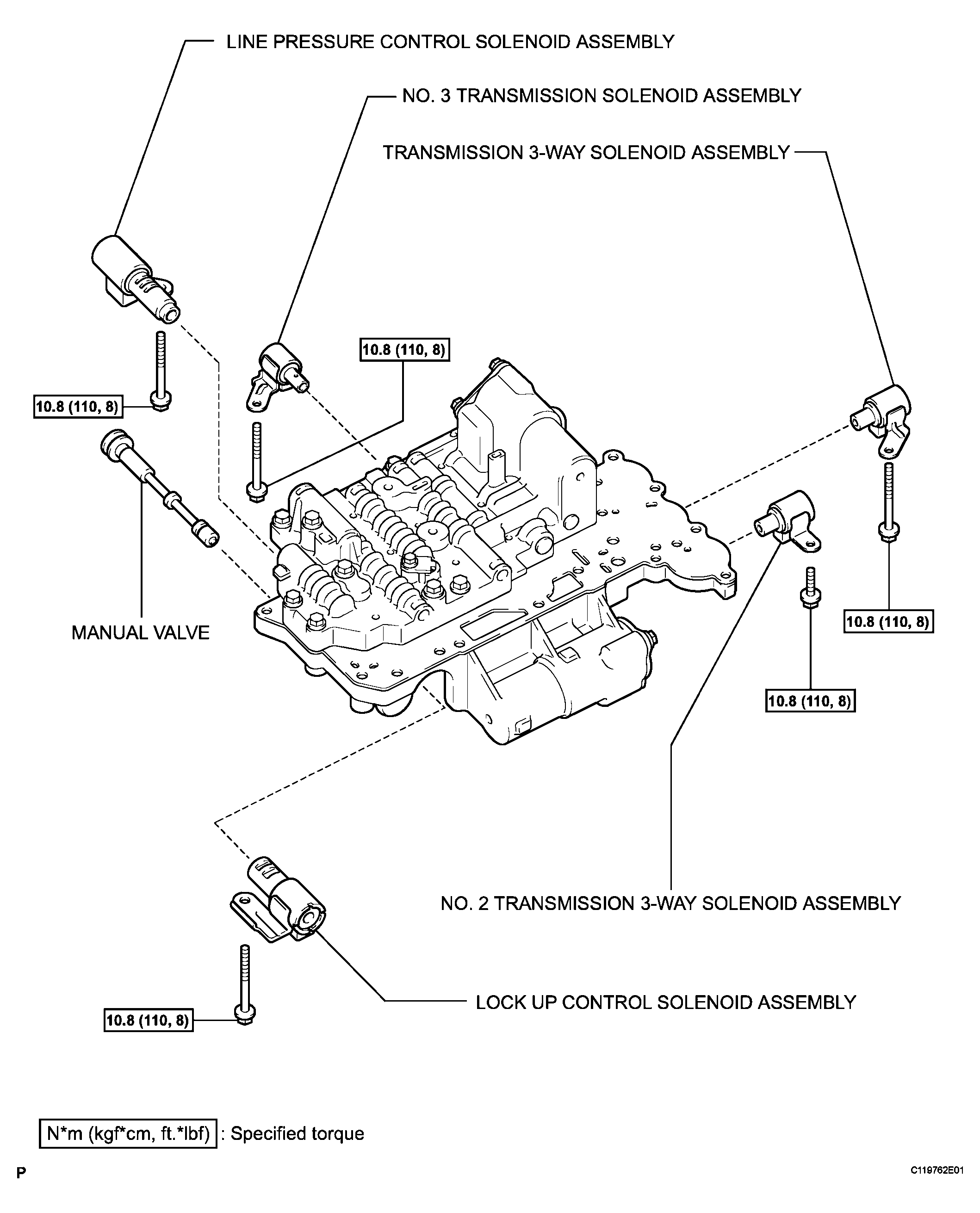

Fig 1: Identifying Valve Body Components

G04227937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
