Valve Body Assembly: Components

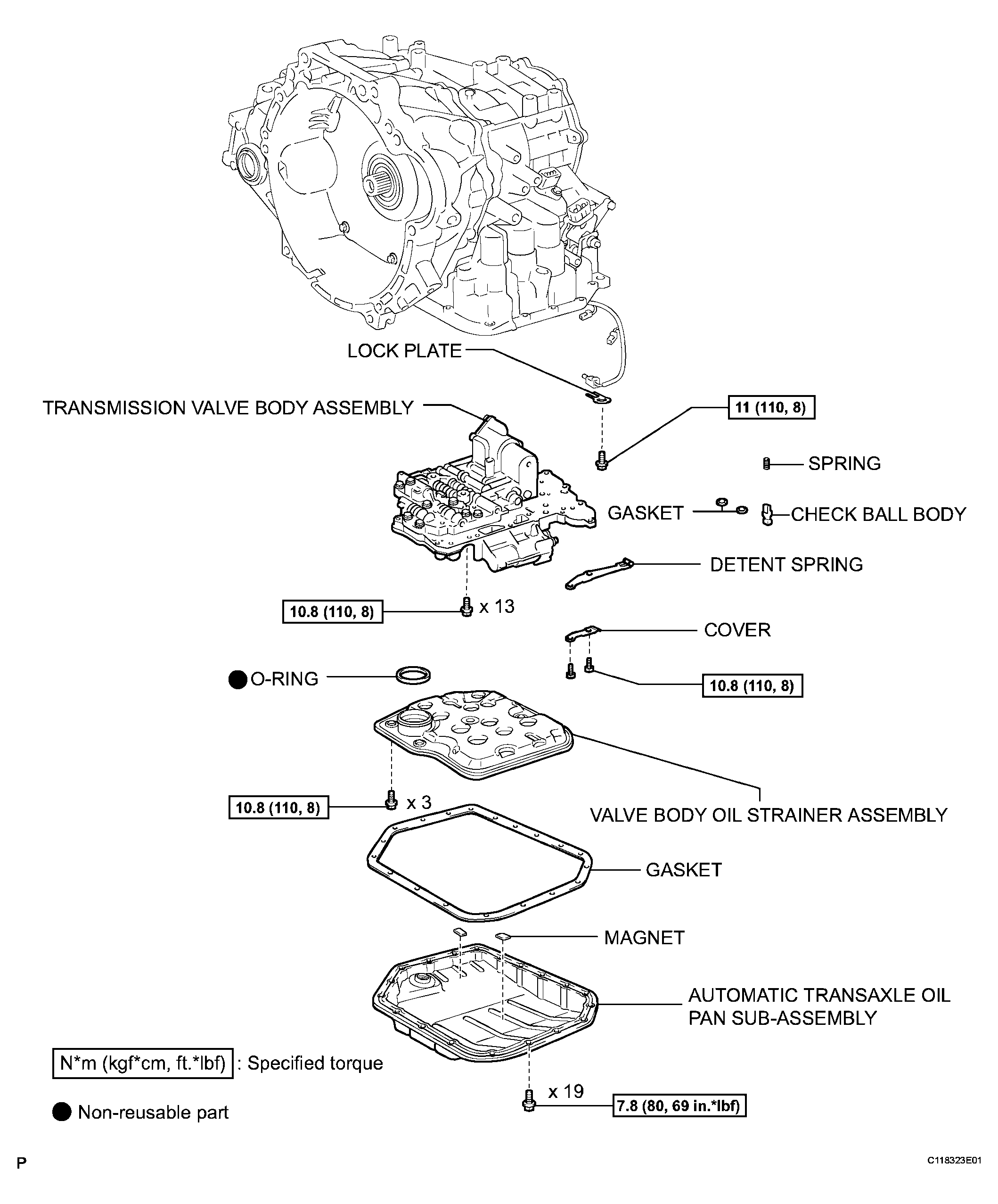

Fig 1: Identifying Automatic Transaxle Assembly Components
G04227511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
