Transmission Revolution Sensor: Components

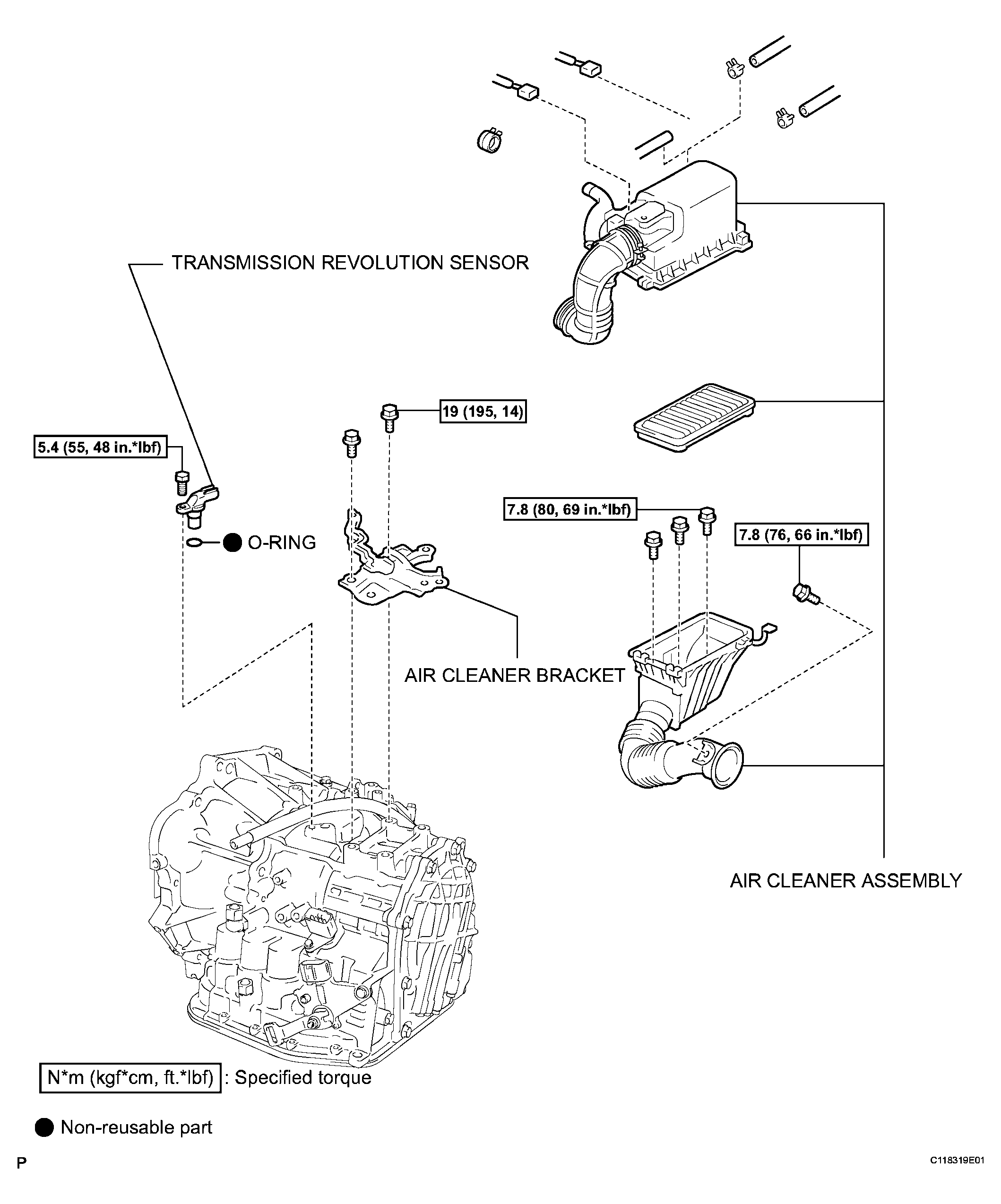

Fig 1: Identifying Automatic Transaxle Fluid Components
G04227473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
