System Diagram

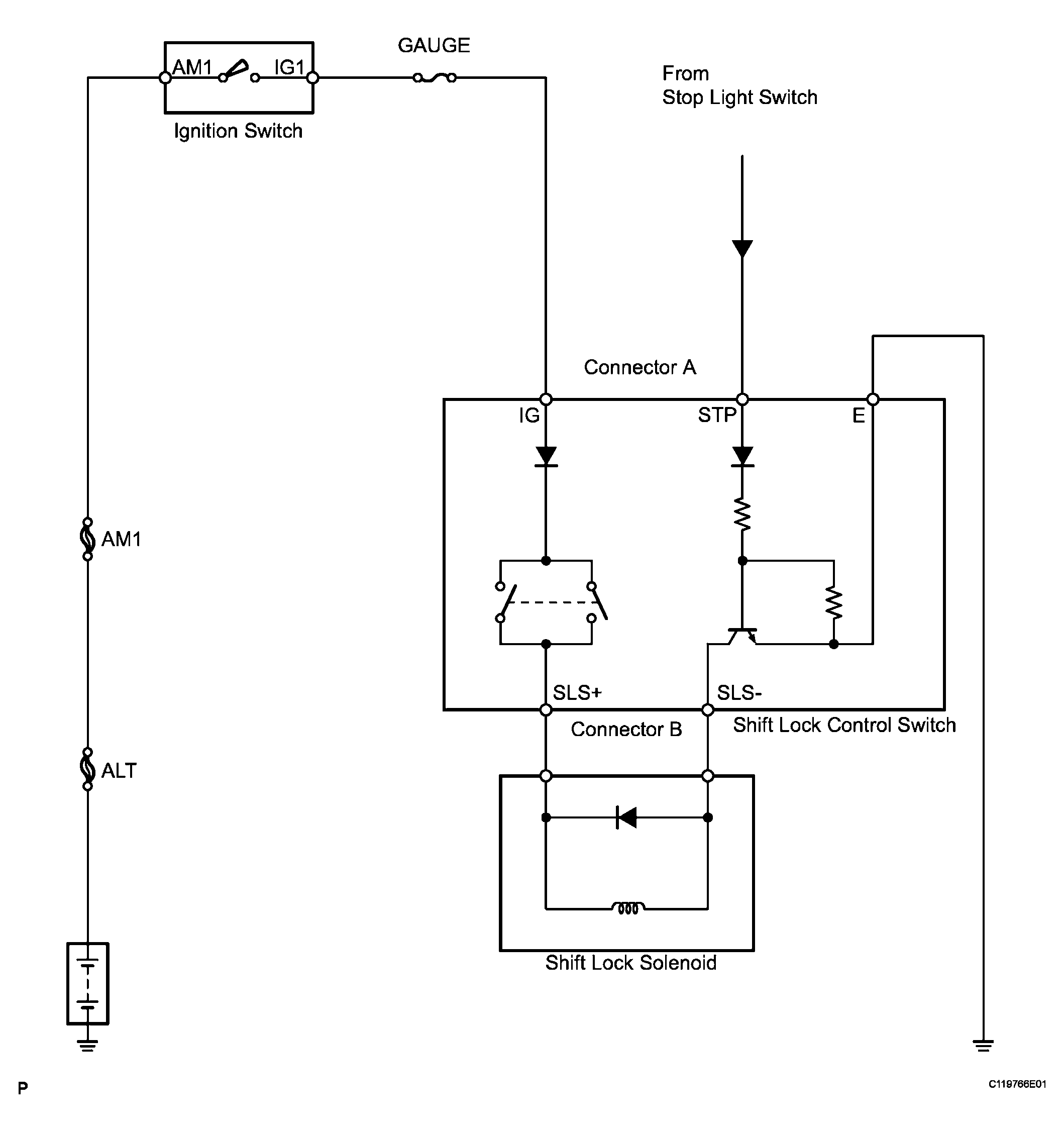

Fig 1: System Diagram
G04227534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The shift lock control switch turns ON when the shift lever is in the P position, and turns OFF when the shift lever is not in the P position.
