Input Shaft: Components

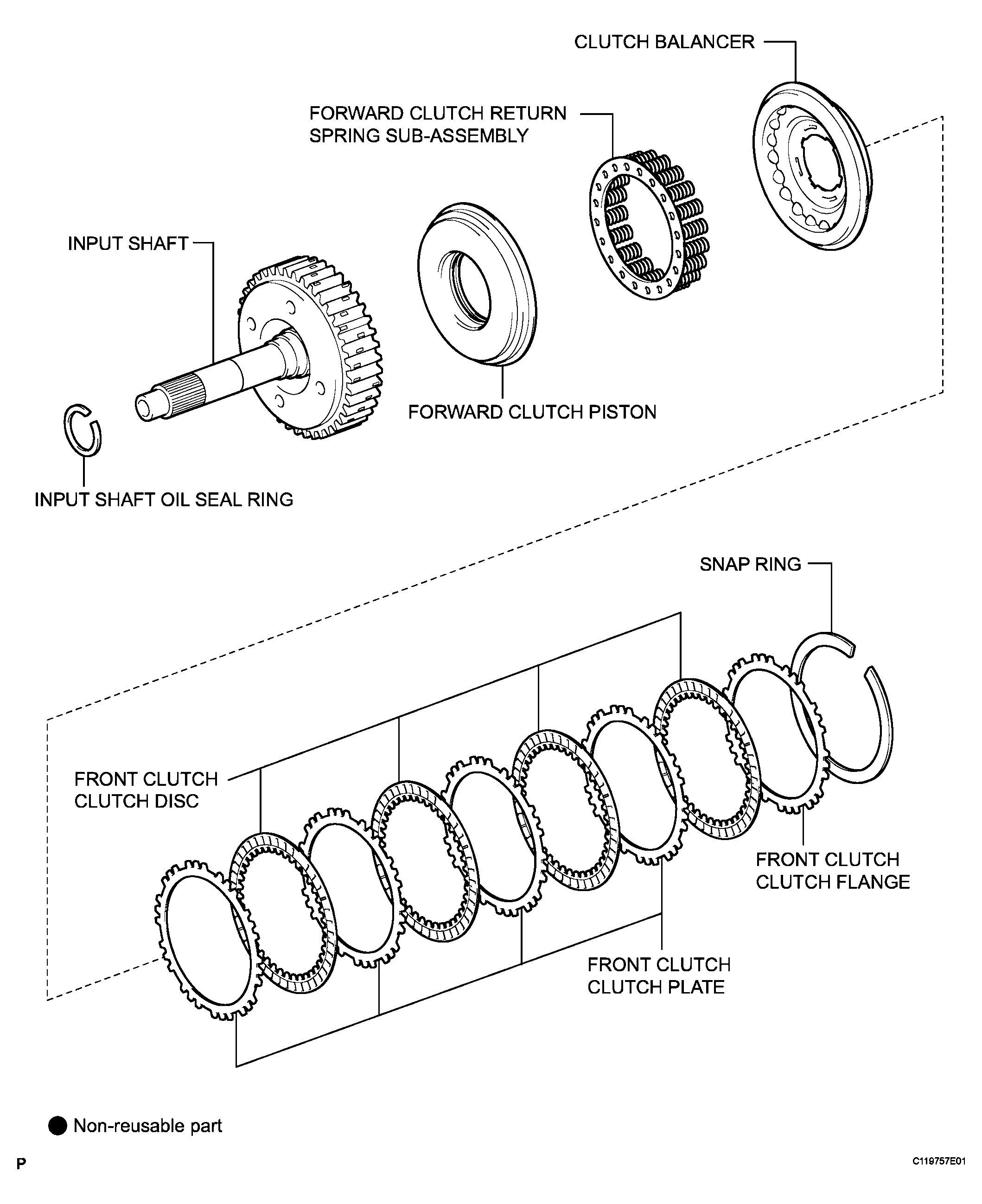

Fig 1: Identifying Input Shaft Components

G04227874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
