EVAP System: Wiring Diagram

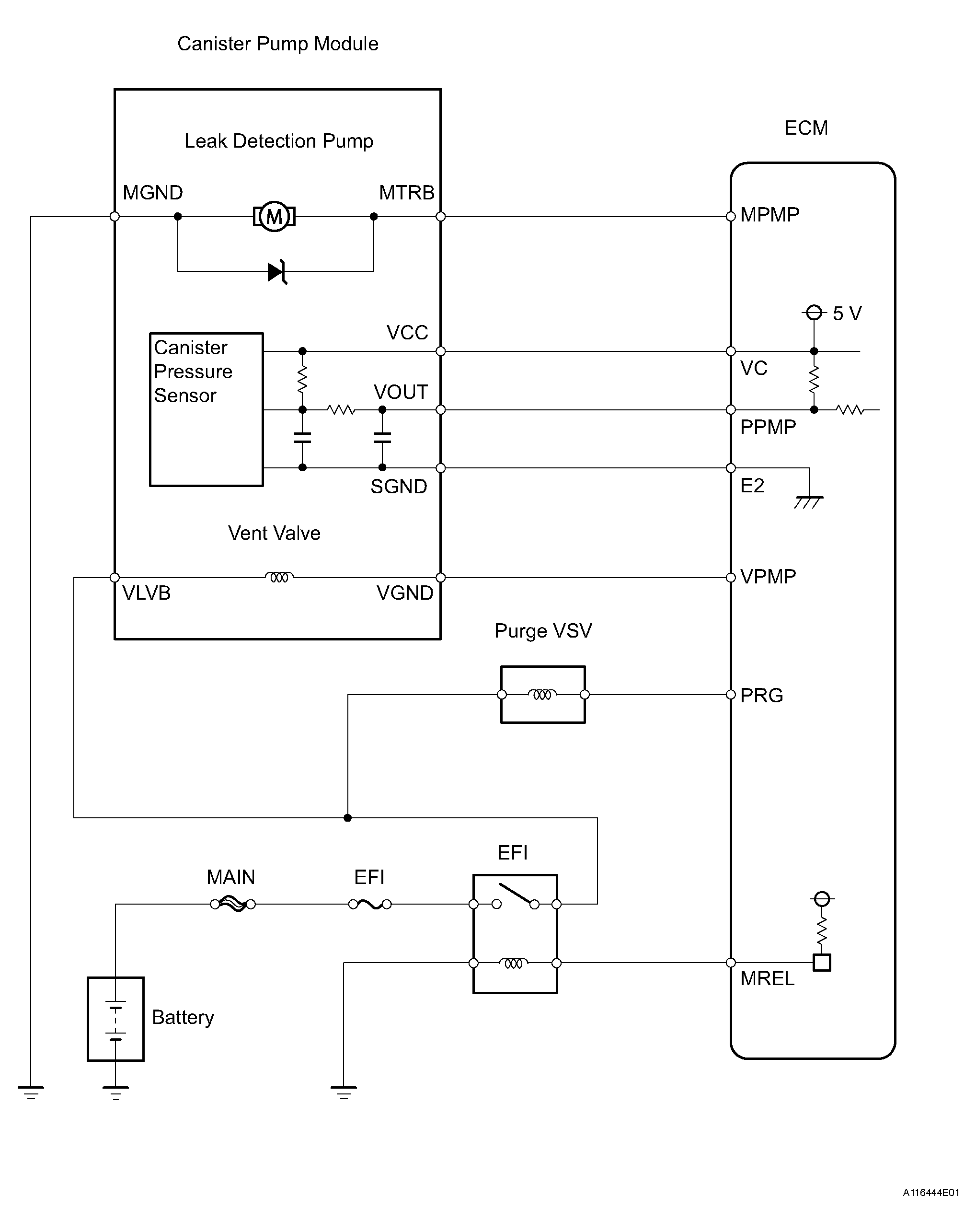

Fig 1: Wiring Diagram - EVAP System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
