Electronic Brake Control Module

TERMINALS OF ECU

Terminals Of Control Module/Pinouts:

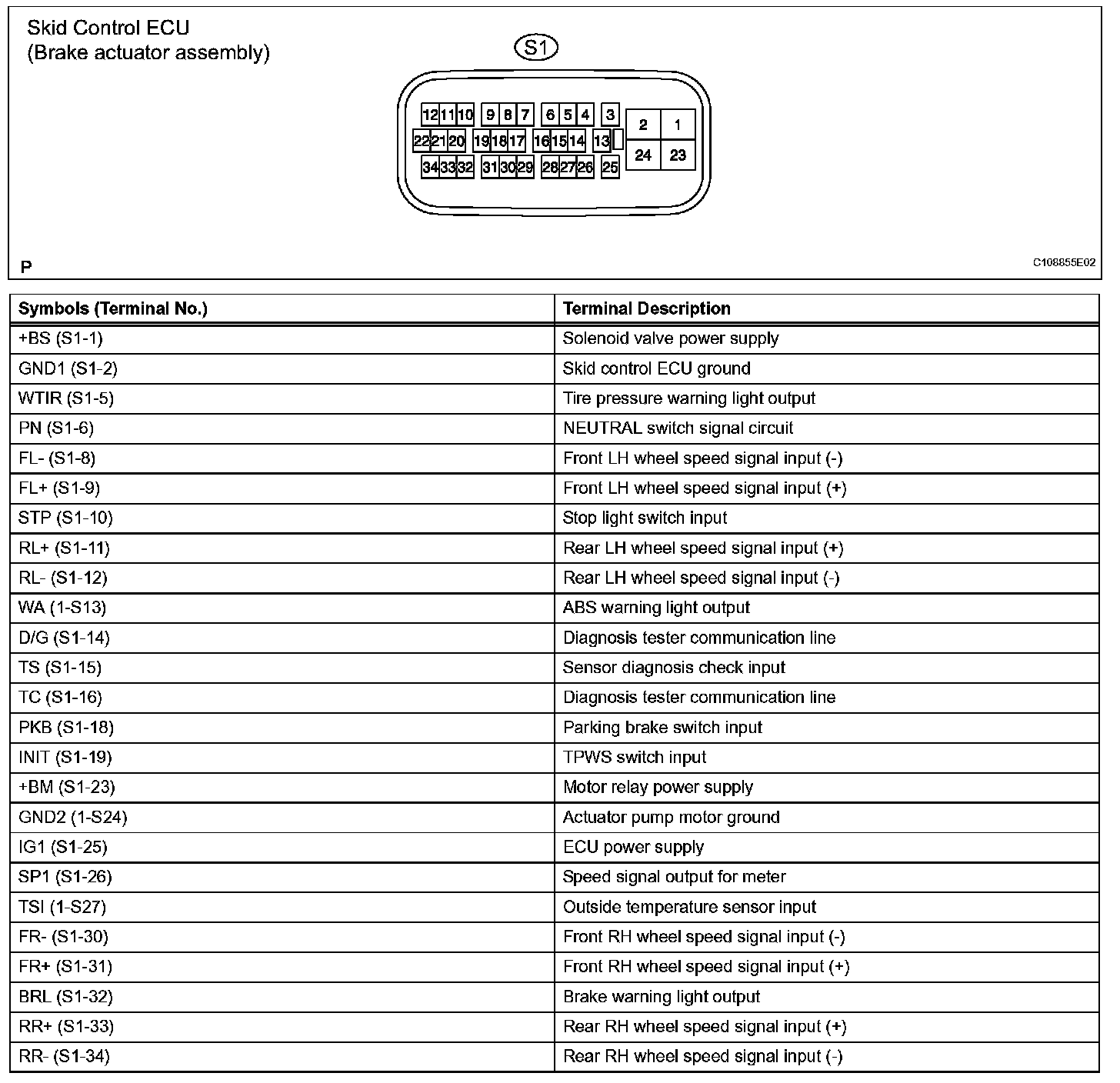

1. TERMINALS OF ECU

Terminals Of Control Module/Pinouts:

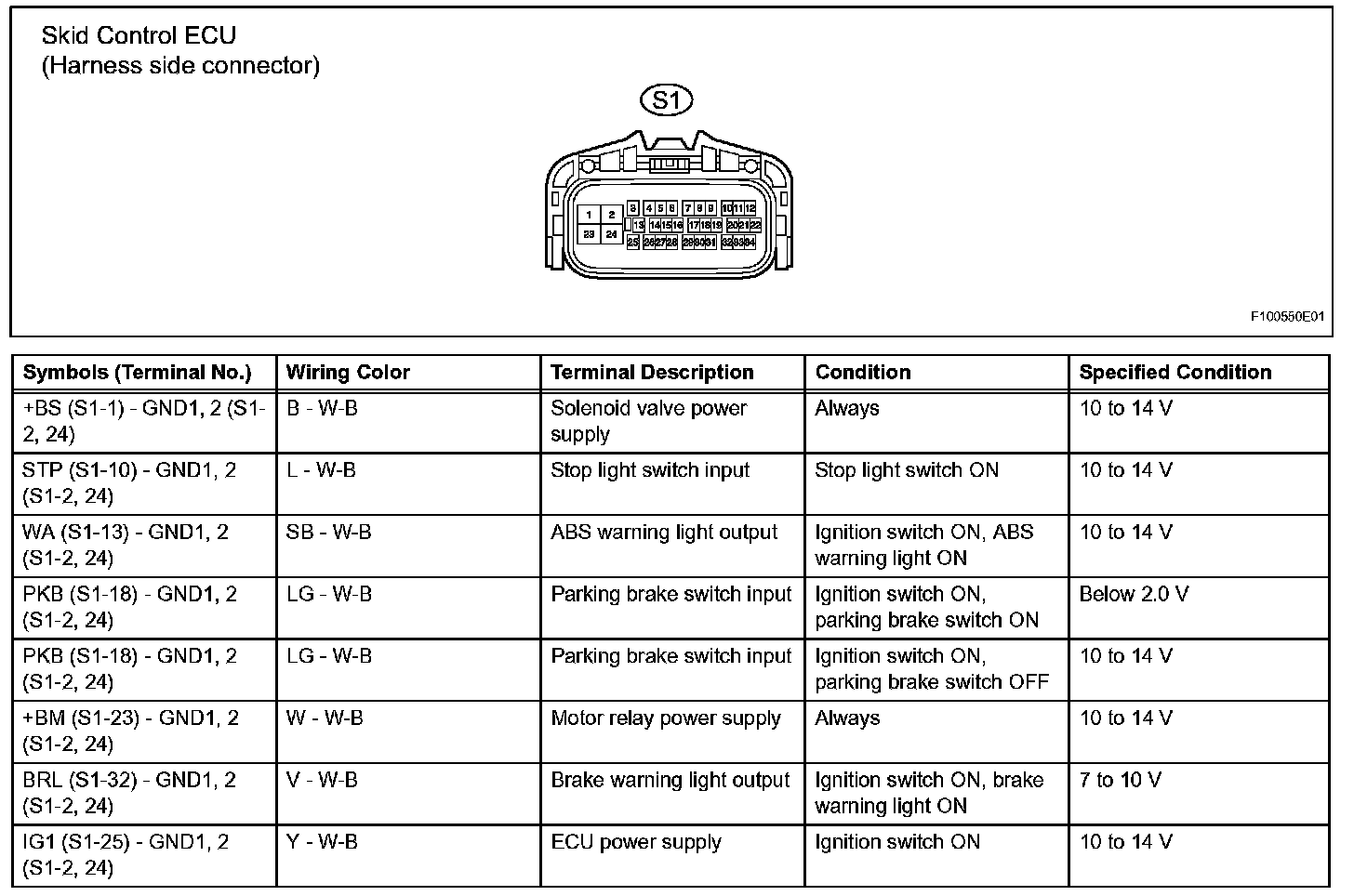

2. TERMINALS INSPECTION
Disconnect the connector and measure the voltage on the wire harness side.

HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is water resistant.
