Camshaft Timing Oil Control Valve Assembly: Components

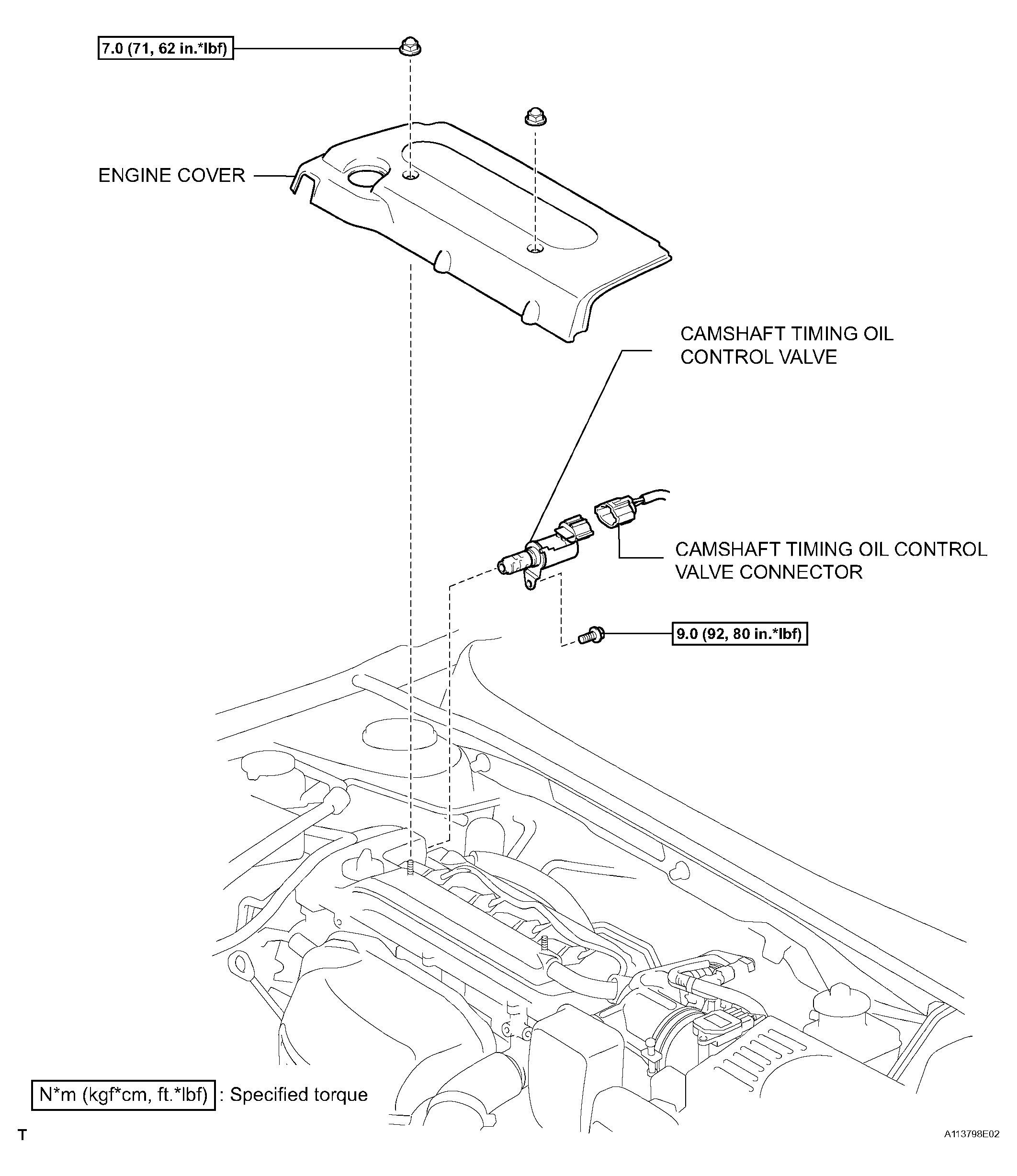

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Components
G04221324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
