Torque Specifications

Fig 1: Engine Mechanical Torque Specifications (1 of 2)
G03094959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

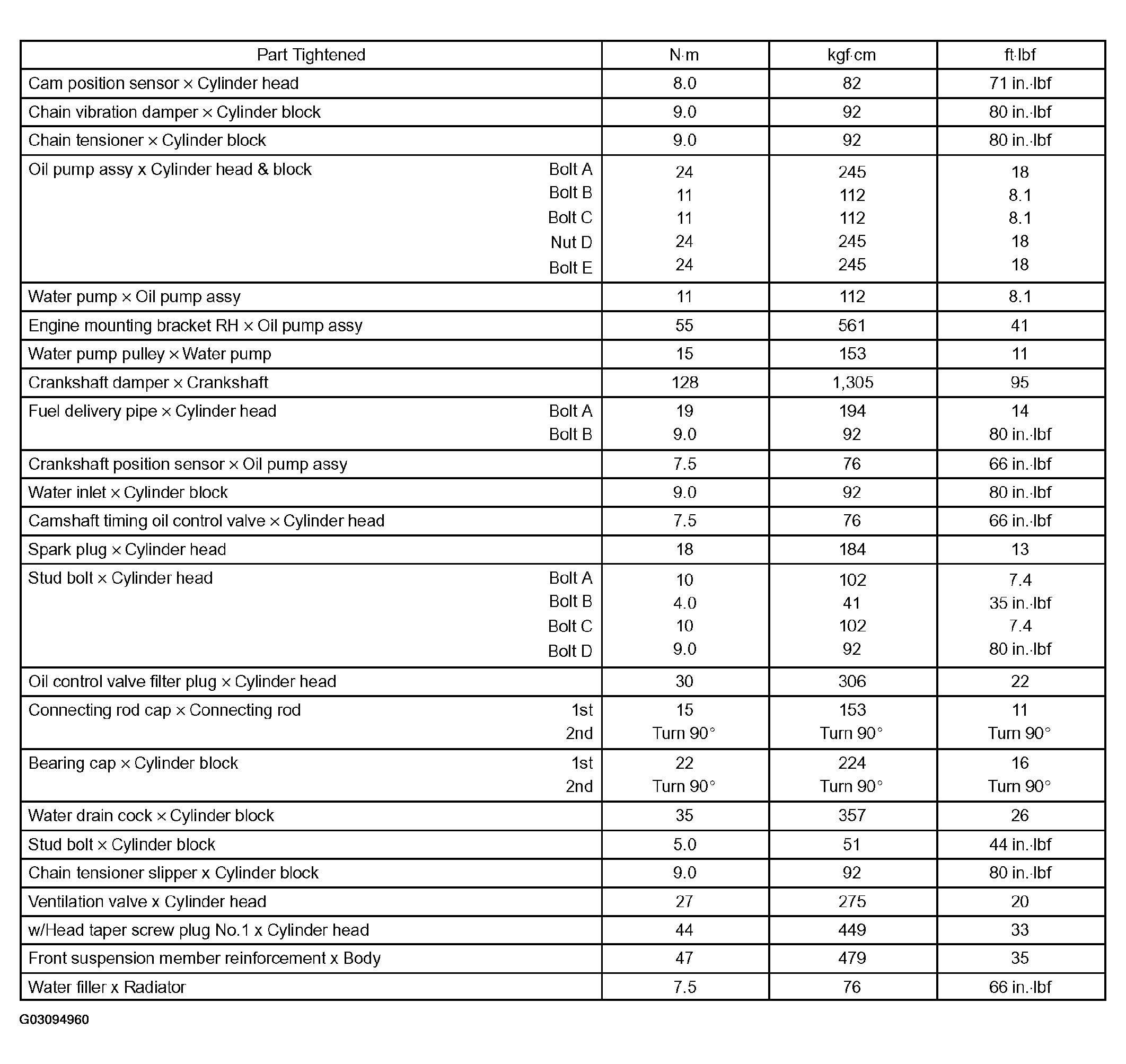

Fig 2: Engine Mechanical Torque Specifications (2 of 2)
G03094960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
