Circuit Description

Refer to DTC P0100 on DTC P0101 MASS OR VOLUME AIR FLOW CIRCUIT RANGE/PERFORMANCE PROBLEM .

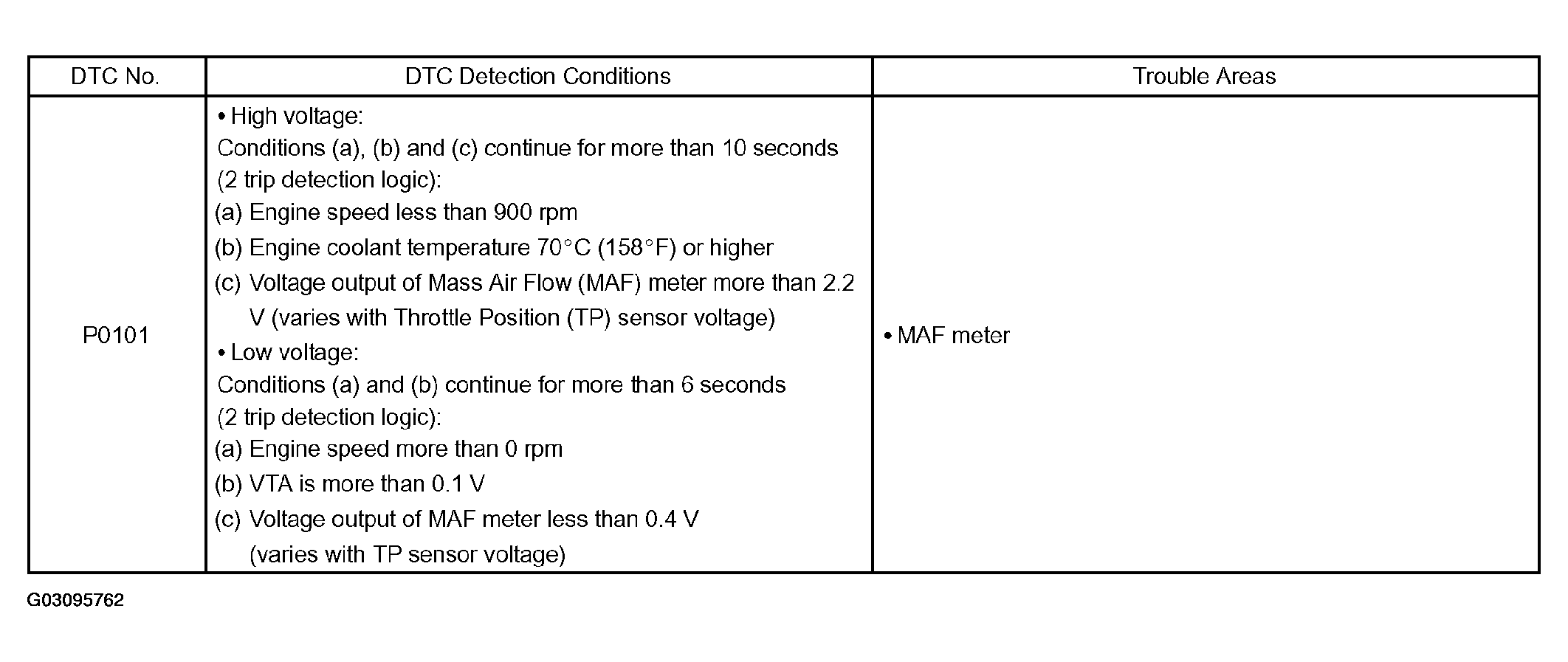

Fig 1: DTC Chart
G03095762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
