Headlamp Dimmer Switch ASSY: Replacement

  1. REMOVE STEERING COLUMN COVER (See  OVERHAUL  )
  2. REMOVE HEADLAMP DIMMER SWITCH ASSY
    1. Disconnect the connector.
    2. Using a screwdriver, disengage the claw and pull out the headlamp dimmer switch assy.

      HINT:

      Tape up the screwdriver tip before use to avoid damage.

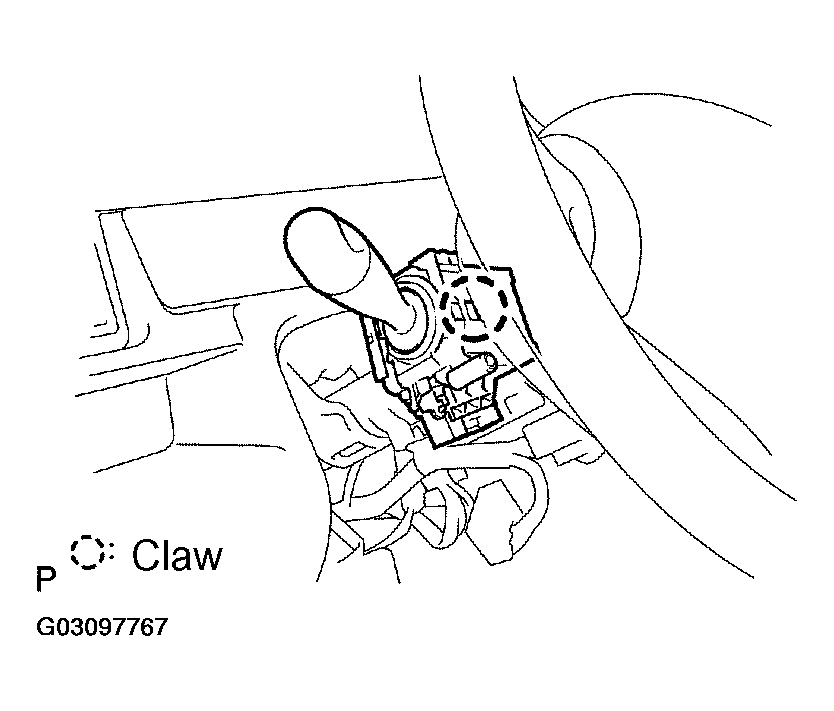

    Fig 1: Removing Headlamp Dimmer Switch Assy
    G03097767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL STEERING COLUMN COVER (See  OVERHAUL  )
