Power Window Control Module: Testing and Inspection

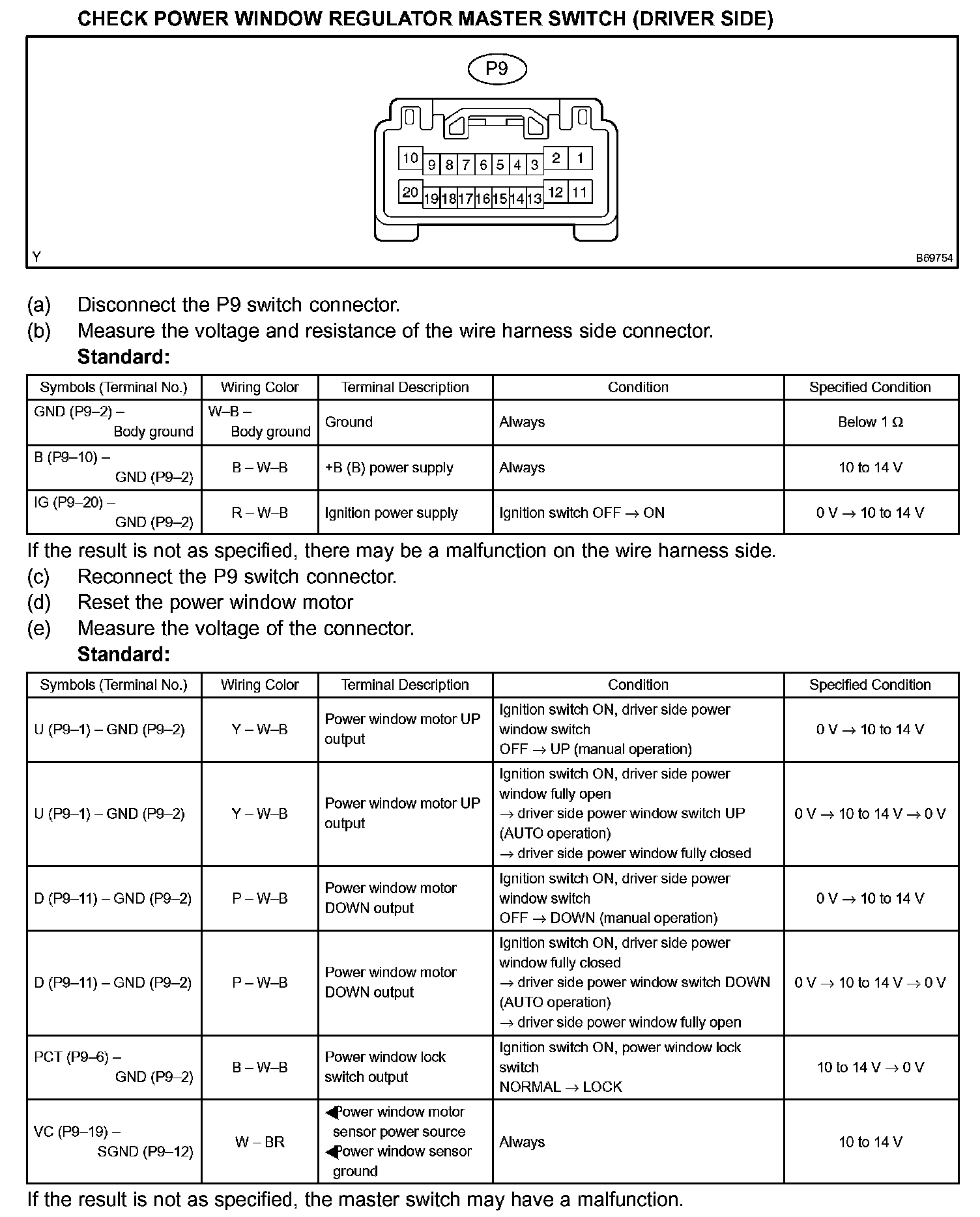

Terminals Of Control Module/Pinouts - Check Power Window Regulator Master Switch (Driver Side):

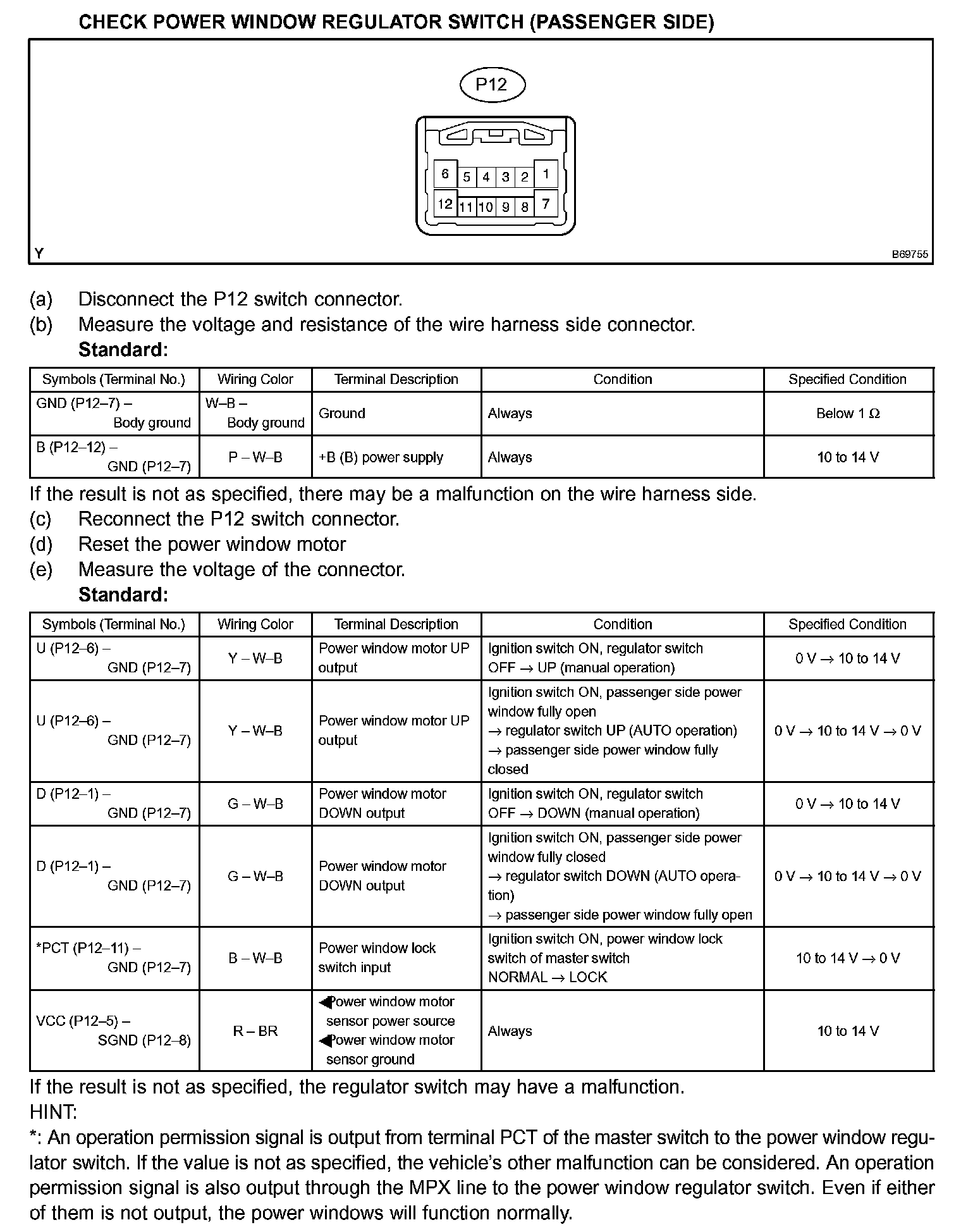

Terminals Of Control Module/Pinouts - Check Power Window Regulator Switch (Passenger Side):
