SFI System - Diagnosis: Location

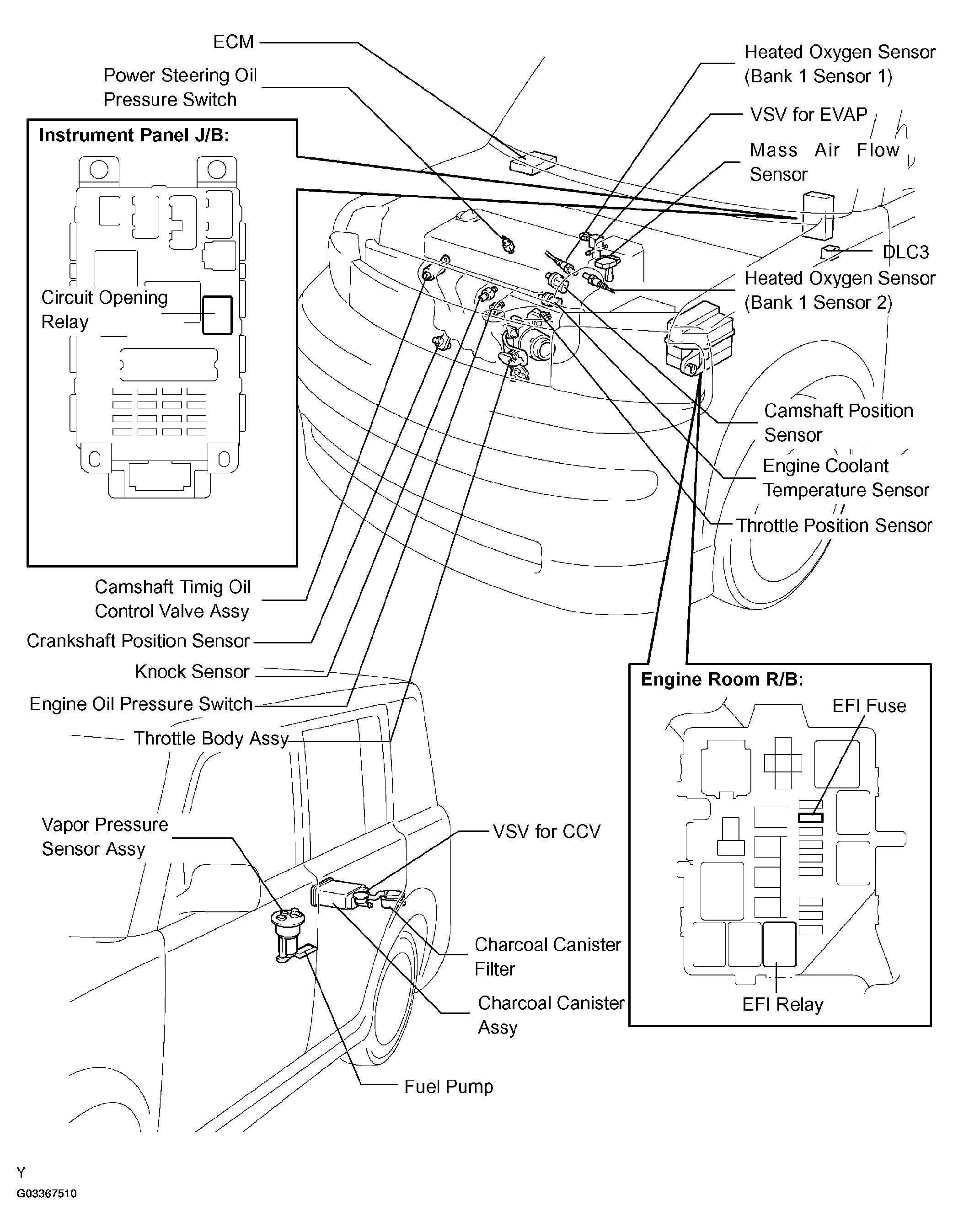

Fig 1: SFI System Component Location
G03367510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
