Check DLC3 Sub Bus Line For Disconnection

CIRCUIT DESCRIPTION

Disconnection is suspected in the DLC3 sub bus line when resistance between terminals 6 (A-R) and 14 (B+R) of the DLC3 is more than 132 Ohm.

NOTE: When CAN communication DTCs are output, trouble other than the disconnection of the DLC3 is suspected. Troubleshoot again following "HOW TO PROCEED WITH TROUBLESHOOTING" after these repairs.

Wiring Diagram:

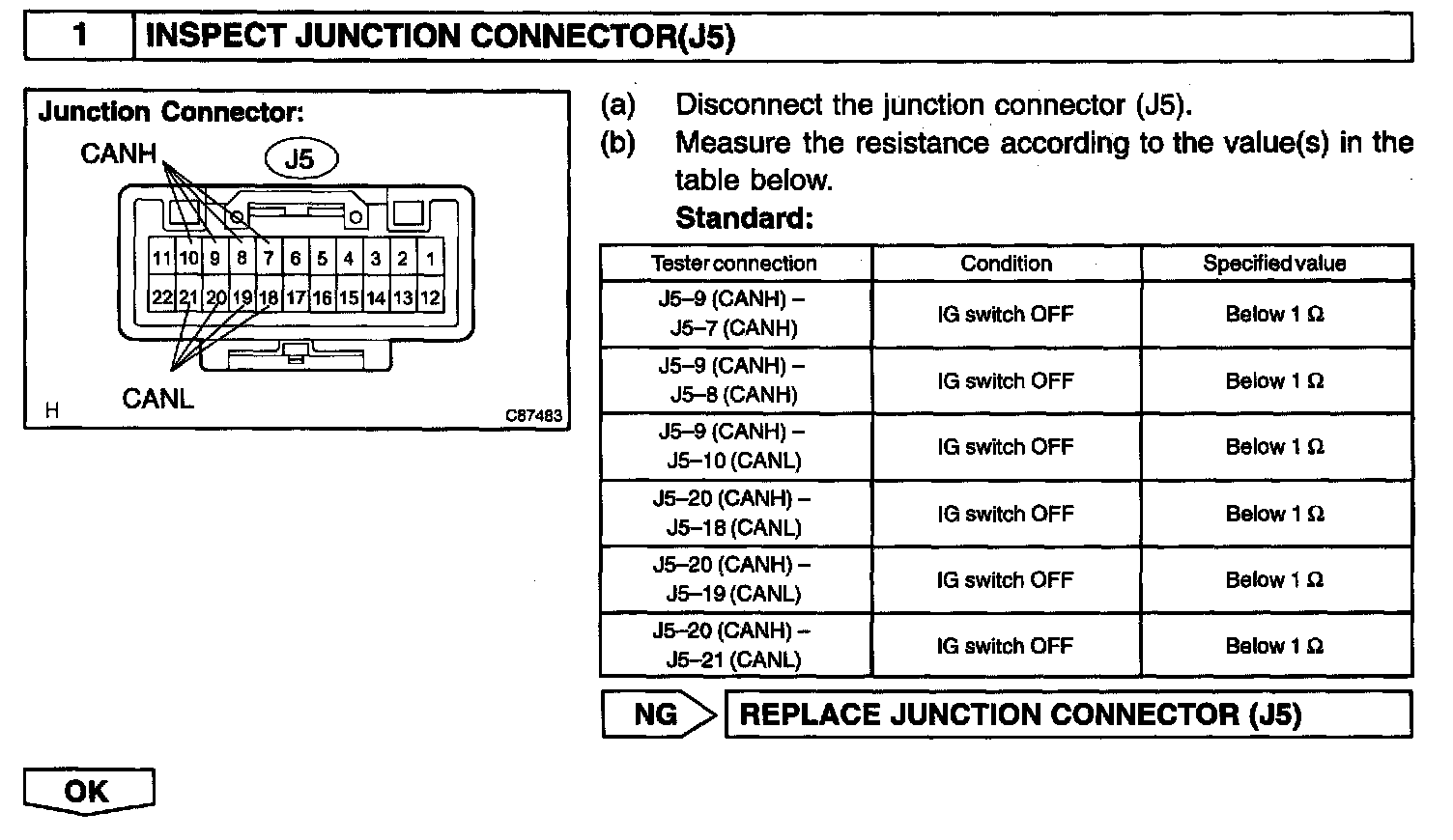

Step 1:

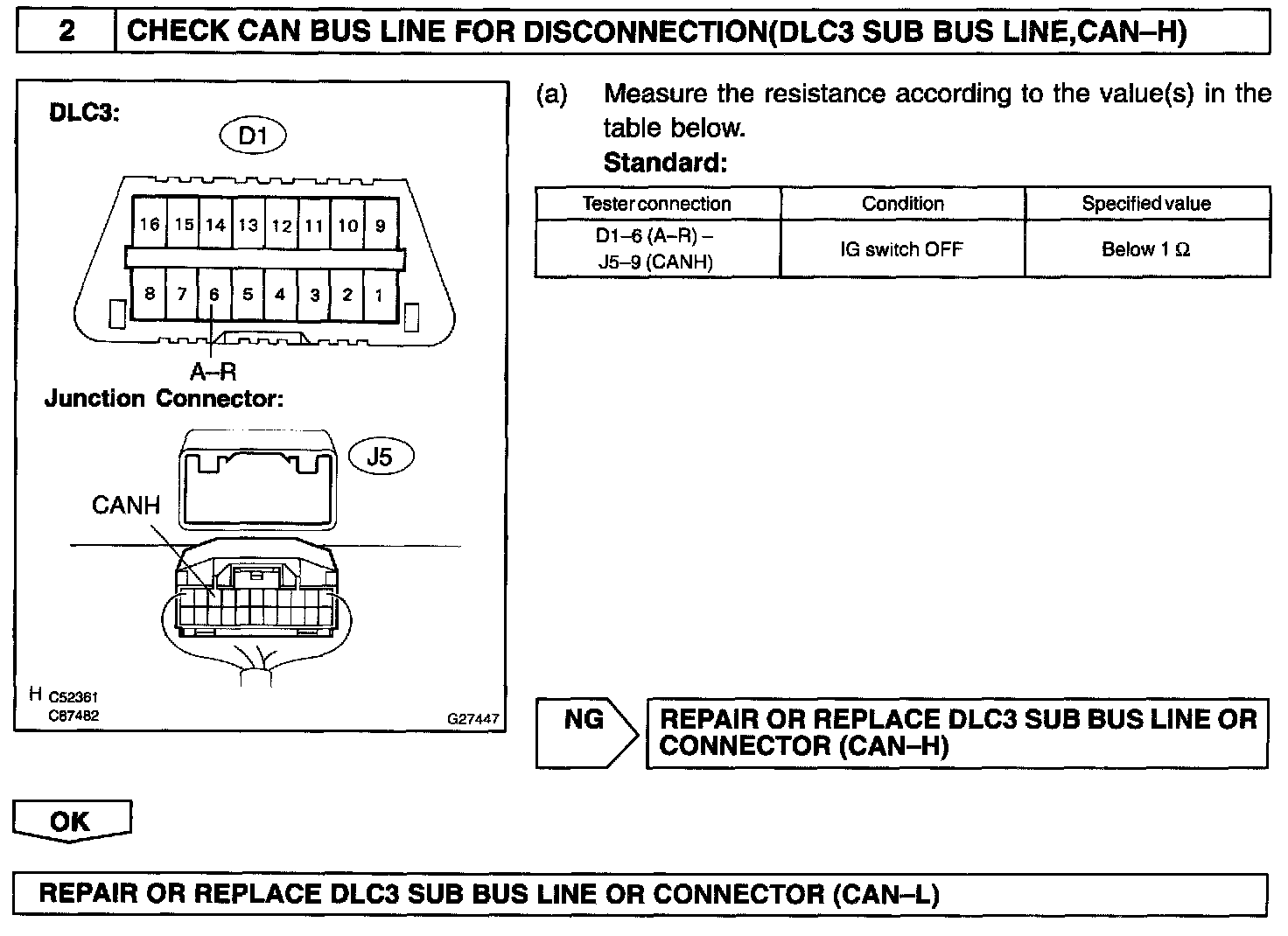

Step 2:

INSPECTION PROCEDURE

NOTE: When CAN communication DTCs are output, trouble other than the disconnection of the DLC3 is suspected. Troubleshoot again following HOW TO PROCEED WITH TROUBLESHOOTING after these repairs.
