Radio Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2004 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

LOCATION: See LOCATION

DISCONNECT BATTERY NEGATIVE TERMINAL (See SUPPLEMENTAL RESTRAINT SYSTEM SERVICE SPECIFICATIONS )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CTR (See REPLACEMENT )
REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
1. Remove the 4 bolts.
2. Disconnect the connector.
3. Remove the radio receiver assembly w/ bracket.

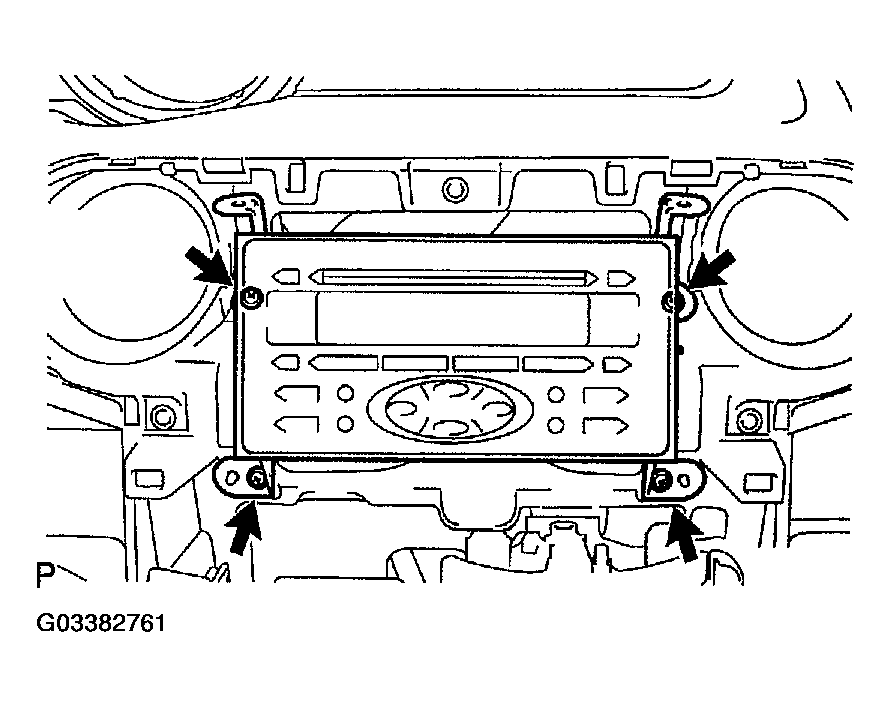

  Fig 1: Locating Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

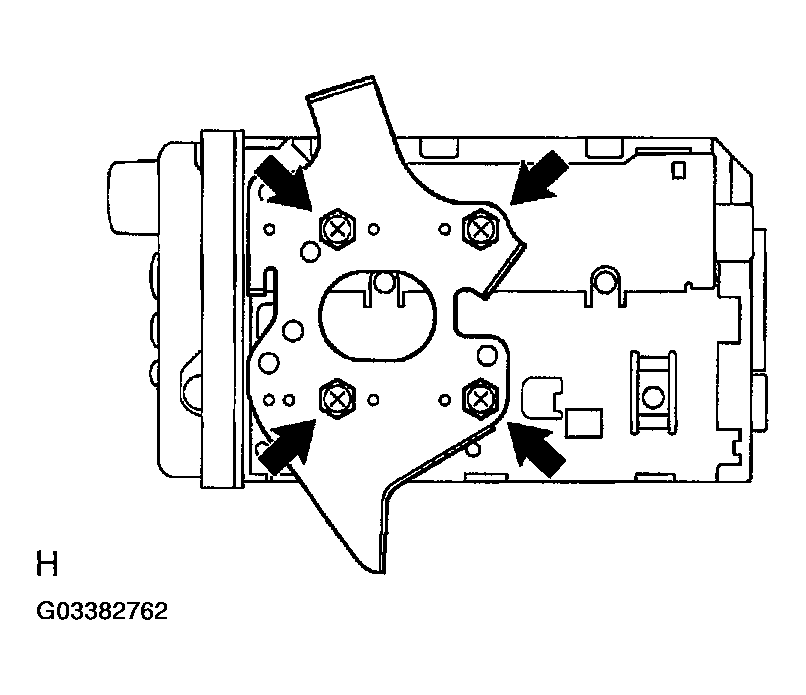

REMOVE RADIO BRACKET NO.1
1. Remove the 4 screws and the radio bracket No.1.

  Fig 2: Removing 4 Screws & Radio Bracket No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO. 2
1. Remove the 4 screws and the radio bracket No.2.

  Fig 3: Removing 4 Screws & Radio Bracket No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER ASSY
