System Diagram

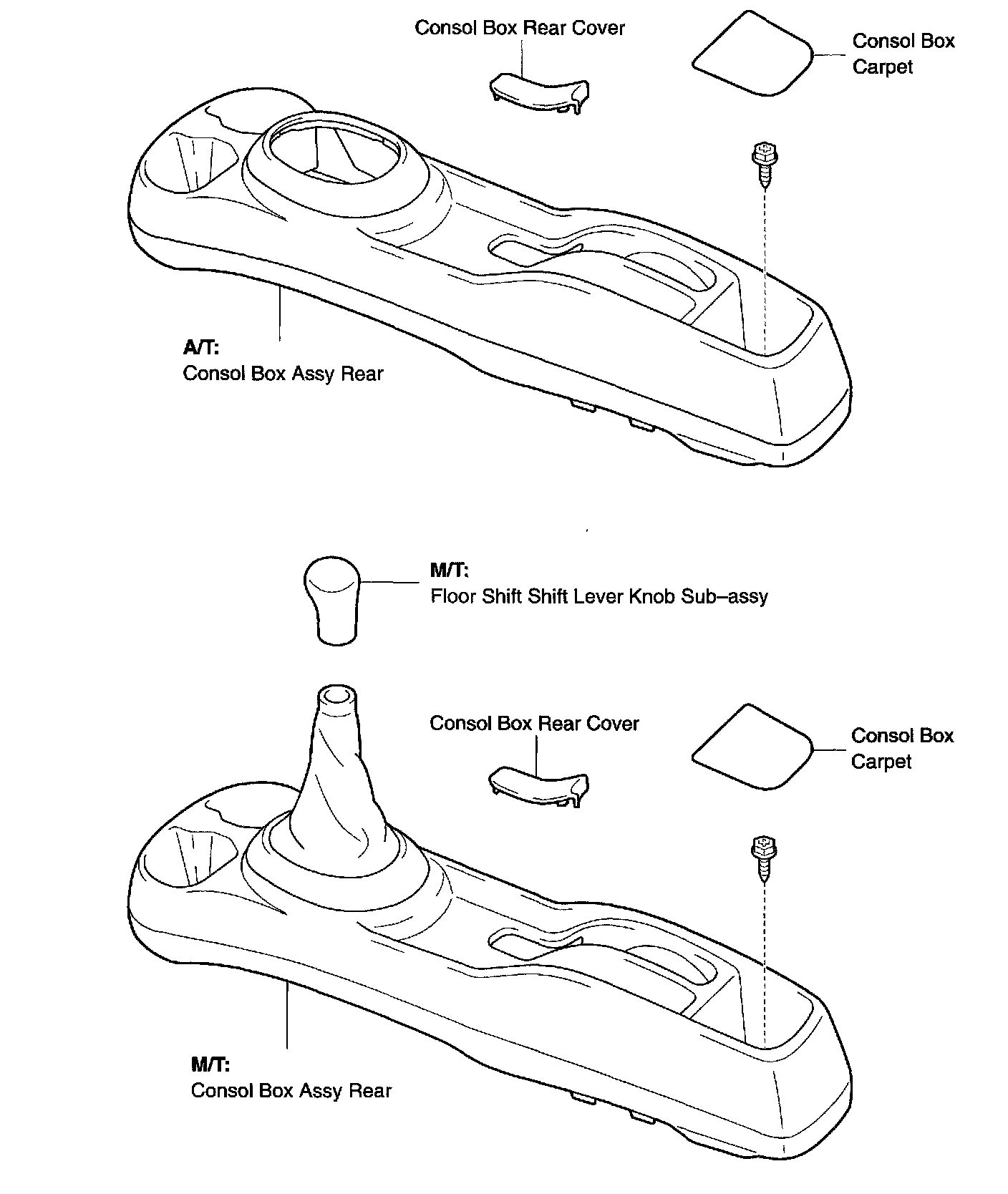

Part 1 Of 2:




Part 2 Of 2:

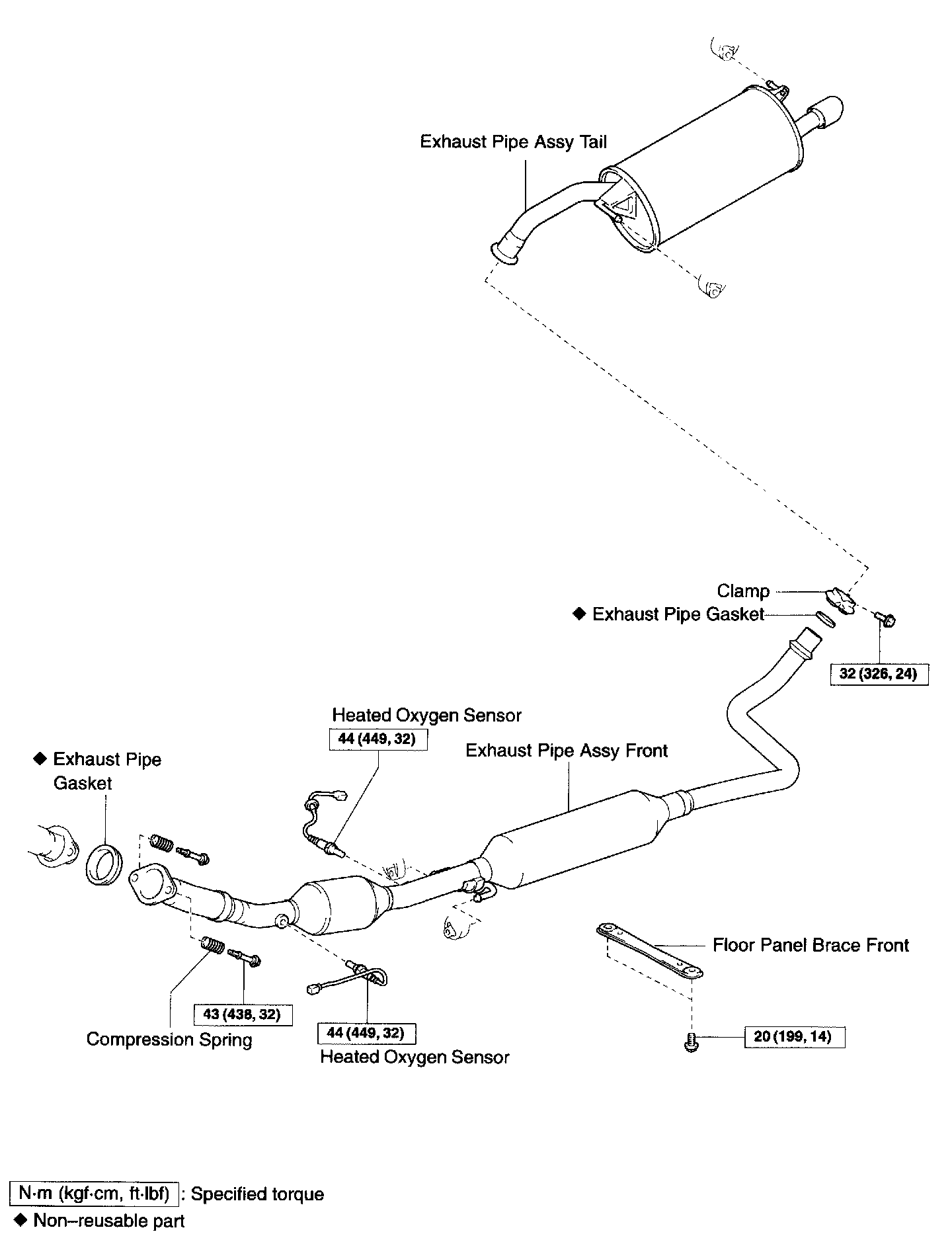

EXHAUST PIPE ASSY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
