Automatic Transaxle - Diagnostics: Initialization
- RESET MEMORY
CAUTION:
Perform the RESET MEMORY (AT initialization) when replacing the automatic transaxle assy, engine assy or ECM.
NOTE:
Hand-held tester only
- Turn the ignition switch off.
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch to the ON position.

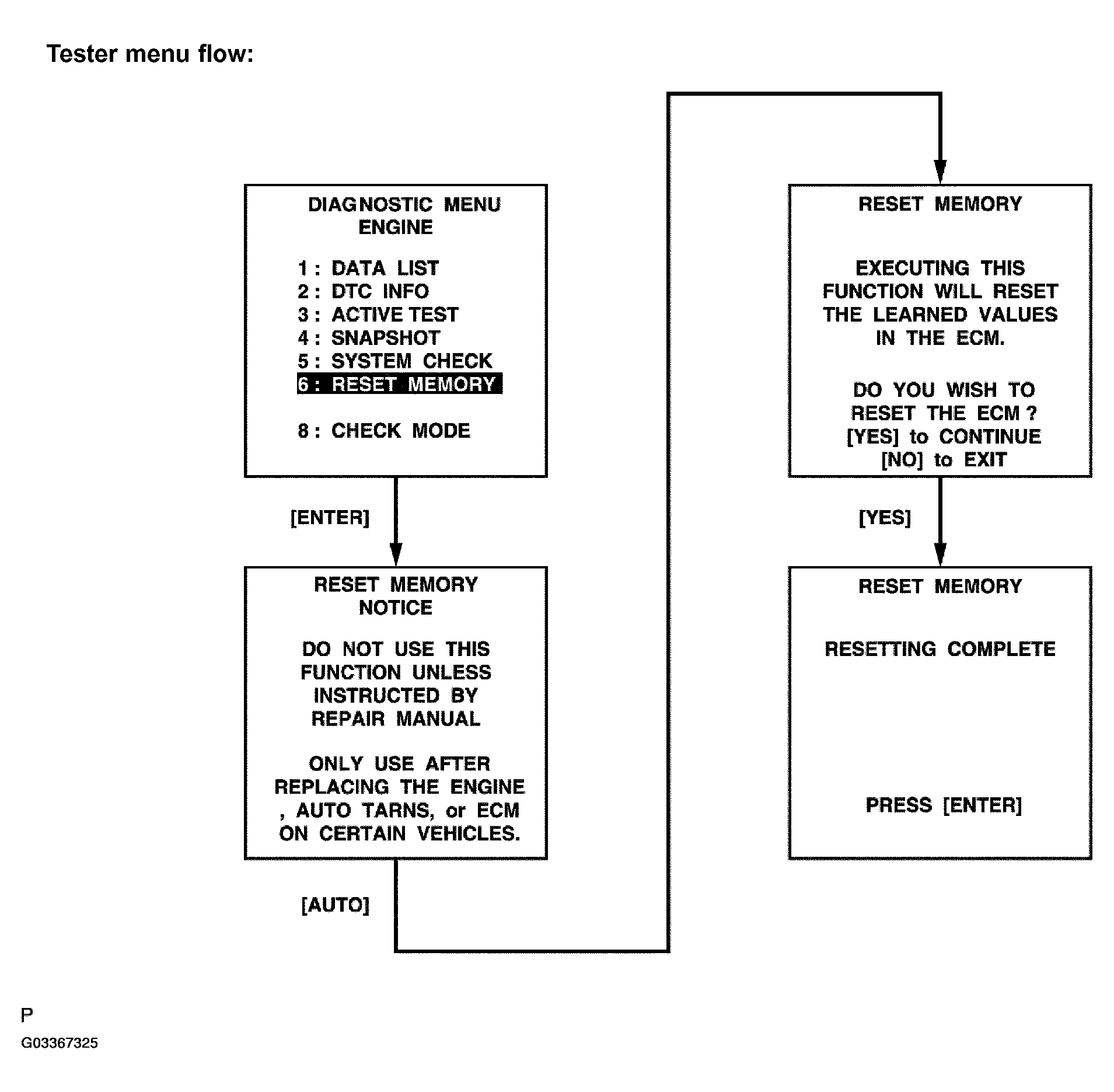

- Perform the reset memory procedure from the ENGINE menu.
CAUTION:
After performing the RESET MEMORY, be sure to perform the ROAD TEST described earlier.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
