Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Failure to follow the proper removal and installation procedures may result in damage to the engine crankshaft thrust bearing.
    Fig 1: View Of Transmission, Driveline Support Assembly & Bolts
    GM71442Courtesy of GENERAL MOTORS CORP.
  1. Remove the strap retaining the transmission torque converter.
  2. Slowly slide the driveline support assembly to the transmission, while supporting the transmission torque converter.
    3. NOTE: Refer to Fastener Notice .
  3. Install the transmission to driveline support assembly bolts/studs.

    Tighten:  Tighten the transmission to driveline support assembly bolts/studs to 50 N.m (37 lb ft).

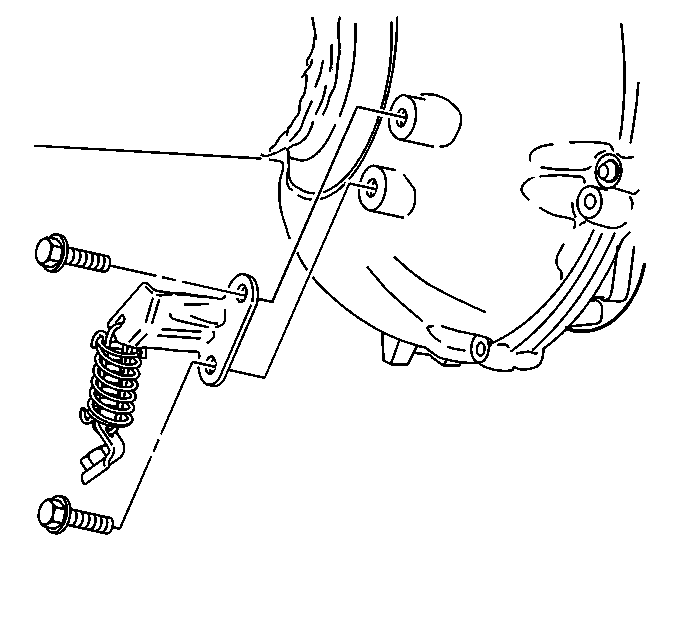

    4. Fig 2: View Of Rear Exhaust Hangers & Mounting Bolts
    GM180748Courtesy of GENERAL MOTORS CORP.
  4. Install the rear exhaust hangers to the driveline support assembly.
  5. Install the rear exhaust hanger mounting bolts.

    Tighten:  Tighten the rear exhaust hanger mounting bolts to 50 N.m (37 lb ft).

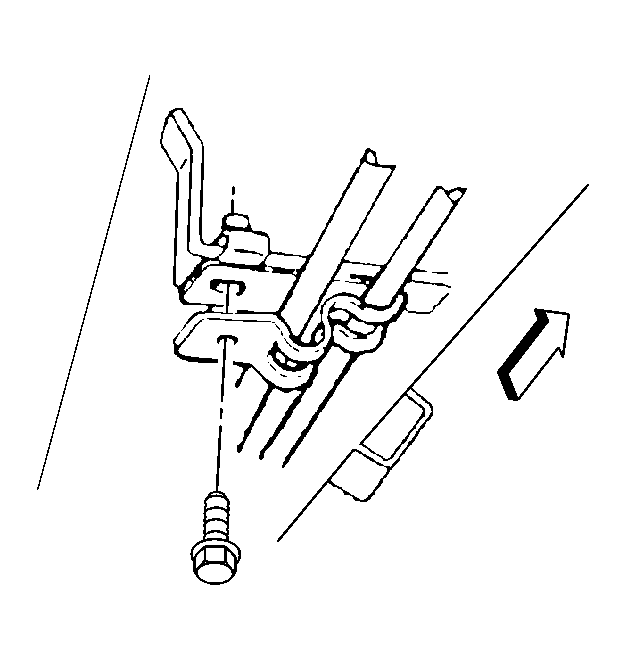

    6. Fig 3: View Of Transmission Oil Cooler Pipes, Clip & Bolts
    GM71416Courtesy of GENERAL MOTORS CORP.
  6. Install the transmission oil cooler pipes into position.
  7. Install the transmission oil cooler pipe front and rear retaining clamps and bolts.

    Tighten:  Tighten the transmission oil cooler pipe front and rear retaining clamp bolts 12 N.m (106 lb in).

  8. Install the transmission oil cooler pipe middle clip.

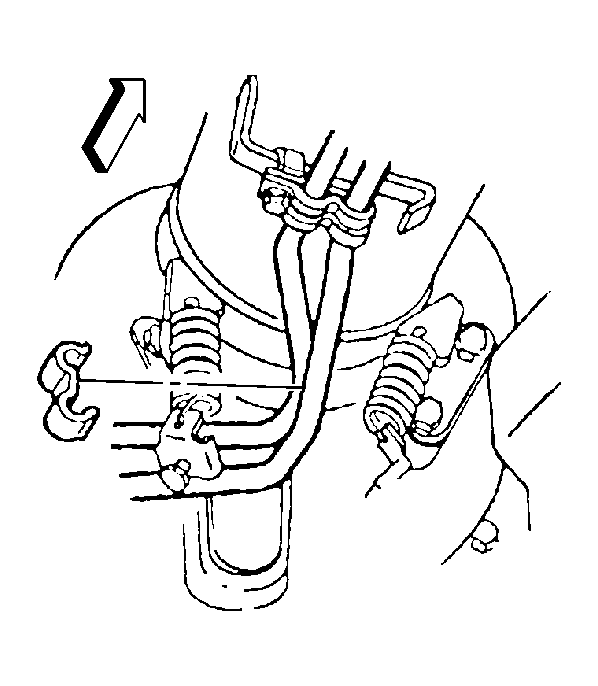

    9. Fig 4: View Of Transmission Oil Cooler Pipe Rear Clip
    GM71415Courtesy of GENERAL MOTORS CORP.
  9. Install the transmission oil cooler pipe rear clip.
    10. Fig 5: View Of Transmission Oil Cooler Pipes & Fittings
    GM71414Courtesy of GENERAL MOTORS CORP.
  10. Remove the caps from the transmission oil cooler pipes and remove the plugs from the fittings on the transmission.
  11. ALIGN and HAND-START, then tighten ONLY by hand to seat the transmission oil cooler pipe fittings to the transmission fittings.

    Tighten:  Tighten the transmission oil cooler fittings to 40 N.m (30 lb ft).

    12. Fig 6: View Of Transmission & J 42055
    GM196196Courtesy of GENERAL MOTORS CORP.
  12. Position the chainfall, or equivalent lifting device, in a way which will protect the transmission oil cooler rear pipes and the rear exhaust hangers located on the driveline support assembly.
    13. IMPORTANT: The aid of an assistant will be necessary for the following steps until the driveline is installed into the vehicle.
  13. Using the lifting device, raise the driveline off the workbench and position the driveline with the J 42055  onto a transmission jack.
  14. Connect the J 42055  to the transmission jack.
    15. Fig 7: Removing/Installing Driveline
    GM71466Courtesy of GENERAL MOTORS CORP.
  15. Remove the lifting device from the driveline.
  16. Position the driveline under the vehicle.
  17. Begin to raise the driveline at the approximate angle used during removal.
  18. Position the wiring harness along the driveline support assembly and LOOSELY install the harness into the harness retaining slots.
  19. Have an assistant guide the front of the driveline so the propeller input shaft is just to the rear of the engine flywheel housing, then raise the driveline to the PROPER HEIGHT and the PROPER ANGLE to install to the engine.
    20. IMPORTANT: Use care not to use too much force to install the propeller input shaft into the propeller shaft hub. The propeller input shaft front bearing positioning system is designed to withstand an insertion force not greater than 582 N.m (130 ft. lb).
  20. Have an assistant begin to insert the propeller input shaft into the propeller shaft hub while maintaining the proper angle of the driveline, if necessary use a screwdriver to rotate the shaft slightly to position and align the splines.
    21. Fig 8: View Of Wiring Harness & Top Of Transmission
    GM196198Courtesy of GENERAL MOTORS CORP.
  21. SLOWLY seat the driveline to the engine flywheel housing while maintaining the proper angle of the driveline.
    22. Fig 9: Positioning Wiring Harness Bracket
    GM71406Courtesy of GENERAL MOTORS CORP.
  22. Reposition the wiring harness bracket to the driveline support assembly bolt hole.
    23. Fig 10: Removing/Installing Driveline Support Assembly To Engine Flywheel Housing Bolts
    GM196199Courtesy of GENERAL MOTORS CORP.
  23. Install the driveline support assembly to engine flywheel housing bolts.

    Tighten:  Tighten the driveline support assembly to engine flywheel housing bolts to 50 N.m (37 lb ft).

  24. Install the wiring harness to the wiring harness retainer along the top of the transmission.
  25. Install the right hand rear HO2S. Refer to Heated Oxygen Sensor Replacement - Bank 2 Sensor 2 .
    26. Fig 11: View Of Transmission Oil Cooler Pipes
    GM71418Courtesy of GENERAL MOTORS CORP.
  26. Remove the caps from the front of the transmission oil cooler pipes and remove the plugs from the junction fittings at the engine flywheel housing.
  27. ALIGN and HAND-START, then tighten ONLY by hand to seat the transmission oil cooler pipes to the junction fittings at the engine flywheel housing.

    Tighten:  Tighten the transmission oil cooler pipes to junction fittings at engine flywheel housing to 27 N.m (20 lb ft).

    28. Fig 12: View Of Park/Neutral Position Switch Electrical Connectors & Transmission Wiring Harness Bolt
    GM205288Courtesy of GENERAL MOTORS CORP.
  28. Install the transmission wiring harness to LH side of transmission case retaining bolt.

    Tighten:  Tighten the transmission wiring harness to LH side of transmission case retaining bolt to 2.5 N.m (22 lb in).

  29. Connect the park/neutral position switch electrical connectors.
    30. Fig 13: View Of Transmission Harness 20-Way Connector
    GM173661Courtesy of GENERAL MOTORS CORP.
  30. Connect the transmission wiring harness 20-way connector.
    31. Fig 14: Wiring Harness Retainer To Stud At Differential Rear Cover
    GM71409Courtesy of GENERAL MOTORS CORP.
  31. Connect the wiring harness clip to the top of the differential.
  32. Connect the wiring harness retainer to the stud at the differential rear cover.
  33. Slowly raise the driveline to final installation height.
  34. Remove the jack which supported the engine.
  35. Install the rear wheel drive shafts. Refer to Wheel Drive Shaft Replacement .
    36. Fig 15: View Of Rear Suspension Crossmember
    GM180638Courtesy of GENERAL MOTORS CORP.
  36. With the aid of an assistant, begin to raise the rear suspension crossmember (still firmly attached to a transmission jack), to the vehicle frame rails.
  37. Guide the rear suspension crossmember alignment pins into the alignment holes in the vehicle frame rails and guide the transaxle mount studs into the mounting holes in the crossmember, then raise the crossmember until it contacts the frame rails.
    38. Fig 16: View Of Jack Supports
    GM180637Courtesy of GENERAL MOTORS CORP.
  38. Using ONLY HAND TOOLS, install NEW rear suspension crossmember mounting nuts.

    Tighten:  Tighten the rear suspension crossmember mounting nuts to 110 N.m (81 lb ft).

    39. Fig 17: View Of Transaxle Mount-To-Rear Crossmember Nuts
    GM180633Courtesy of GENERAL MOTORS CORP.
  39. Remove the transmission jack from the rear suspension crossmember.
  40. Release the J 42055  from the transmission, then remove the J 42055  and transmission jack.
  41. Install the transaxle mount to rear suspension crossmember nuts.

    Tighten:  Tighten the transaxle mount to rear suspension crossmember nuts to 50 N.m (37 lb ft).

  42. Install the vibration damper. Refer to Drive Line Vibration Dampener Replacement .
  43. Connect the wiring harness, wiring ground and brake pipe clip retainers to the rear suspension crossmember.
  44. Reposition the RH side wiring harness through the cradle and position back.
    45. Fig 18: View Of Shock Absorber Mounting To Control Arm
    GM180606Courtesy of GENERAL MOTORS CORP.
  45. Support the lower control arm with a straight jack.
  46. Connect the upper ball joint to the suspension knuckle. Refer to Knuckle Replacement .
  47. Install the shock absorber lower mounting bolt.

    Tighten:  Tighten the rear shock absorber lower mounting bolt to 220 N.m (162 lb ft).

  48. Connect the outer tie rod end to the suspension knuckle. Refer to Tie Rod Replacement (Inner) or Tie Rod Replacement (Outer) .
  49. Remove the straight jack from the suspension control arm.
  50. Repeat steps 45 through 49 for the other side of the vehicle.
  51. Install the drive axle spindle nuts.

    Tighten:  Tighten the drive axle spindle nut to 160 N.m (118 lb ft).

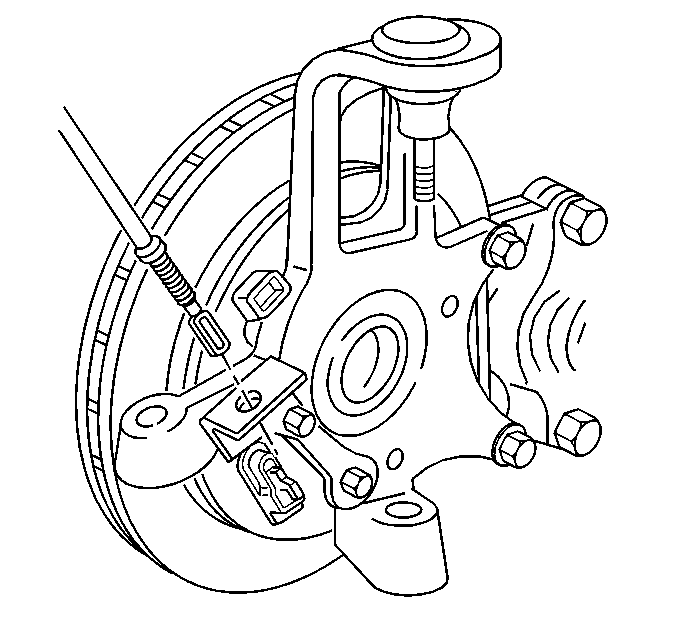

    52. Fig 19: View Of Rear Park Cable
    GM63999Courtesy of GENERAL MOTORS CORP.
  52. Remove the mechanics wire supporting the rear calipers and install caliper to caliper bracket. Refer to Rear Brake Caliper Replacement .
  53. Connect the suspension rear position sensor servo arms to the lower control arms. Refer to Rear Position Sensor Replacement - Electronic Suspension .
  54. Connect the electrical connectors to the suspension rear position sensors.
  55. Connect the rear wheel speed sensor electrical connectors to the wheel speed sensors.
  56. Connect the rear park brake cables to the actuator levers. Refer to Park Brake Cable Replacement - Rear .
    57. Fig 20: View Of Driveline Support Assembly & Wiring Harness Retainer
    GM71407Courtesy of GENERAL MOTORS CORP.
  57. Carefully position the wiring harness into the L-shaped brackets along the driveline support assembly. Align the harness retainer (locator) (1) to the hole in the forward bracket and secure in place.
    58. Fig 21: View Of Transmission Shift Cable & Bracket
    GM173669Courtesy of GENERAL MOTORS CORP.
  58. Install the transmission shift cable and bracket into position.
  59. Connect the transmission shift cable to the transmission shift lever.

    Press to secure the cable.

    60. Fig 22: View Of Transmission Shift Cable Bracket To Transmission Nuts
    GM71443Courtesy of GENERAL MOTORS CORP.
  60. Install the transmission shift cable bracket nuts to the transmission.

    Tighten:  Tighten the transmission shift cable bracket nuts to 20 N.m (15 lb ft).

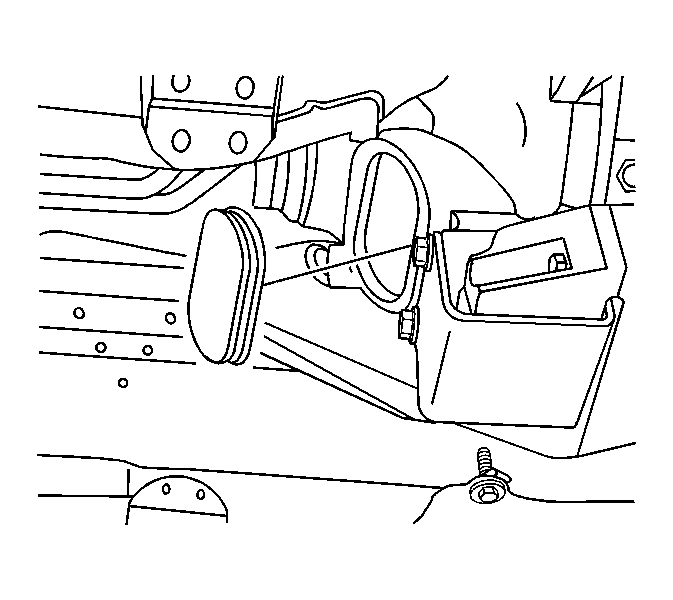

    61. Fig 23: View Of Rear Bellhousing Access Plug & Bolts
    GM1273533Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The following step must be performed to assure proper torque converter balance during installation.
  61. Align the transmission flexplate to the transmission torque converter using the matchmark made prior to removal.
  62. Install the transmission flexplate to transmission torque converter bolts. Refer to Torque Converter Replacement .
  63. Install the rear bellhousing access plug.
  64. Connect the transmission rear pipes. Refer to Transmission Fluid Cooler Pipe Replacement - Rear .
    65. Fig 24: View Of Propeller Shaft Hub Clamp Bolt
    GM173641Courtesy of GENERAL MOTORS CORP.
  65. HAND-TIGHTEN the propeller shaft hub clamp bolt (1) until FINGER-TIGHT.
    66. Fig 25: View Of Driveline Support Assembly & Plastic Plugs
    GM173638Courtesy of GENERAL MOTORS CORP.
  66. Remove the propeller input shaft front bearing positioning bolts (M10 - 1.5 X 55 mm) from the driveline support assembly.
  67. Install the 2 plastic plugs to the front of the driveline support assembly.
    68. Fig 26: Installing Driveline Tunnel Closeout Panel
    GM180595Courtesy of GENERAL MOTORS CORP.
  68. Install the driveline tunnel closeout panel. Refer to Driveline Tunnel Closeout Panel Replacement .
  69. Install the RH muffler assembly. Refer to Muffler Replacement - Right Side .
  70. Install the LH muffler assembly. Refer to Muffler Replacement - Left Side .
  71. Install the intermediate pipe. Refer to Intermediate Pipe Replacement .
  72. Install the rear tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
  73. Lower the vehicle.
  74. Connect the negative battery cable.

    Tighten:  Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

  75. Program the transmitters. Refer to Transmitter Programming (Domestic and Japan) or Transmitter Programming (Export - Including Canada) .
    76. IMPORTANT: The following steps MUST be performed in order to provide proper alignment of the propeller shaft hub, the propeller input shaft and the propeller input shaft front bearing.
    Fig 27: View Of Propeller Shaft Hub Clamp Bolt
    GM173641Courtesy of GENERAL MOTORS CORP.
  76. Start and run the engine at idle until normal operating temperatures are reached.

    (Idle or drive for at least 10 minutes.)

  77. Turn off the engine and allow the powertrain to cool to ROOM temperature.
  78. Raise the vehicle.
  79. Tighten the propeller shaft hub clamp bolt (1).

    Tighten:  Tighten the propeller shaft hub clamp bolt to 125 N.m (93 lb ft).

    80. Fig 28: View Of Engine Flywheel Housing Access Plug
    GM71455Courtesy of GENERAL MOTORS CORP.
  80. Install the engine flywheel housing access plug.
  81. Flush the transmission oil cooler. Refer to Automatic Transmission Oil Cooler Flushing and Flow Test (J 45096) .
  82. Lower the vehicle.
